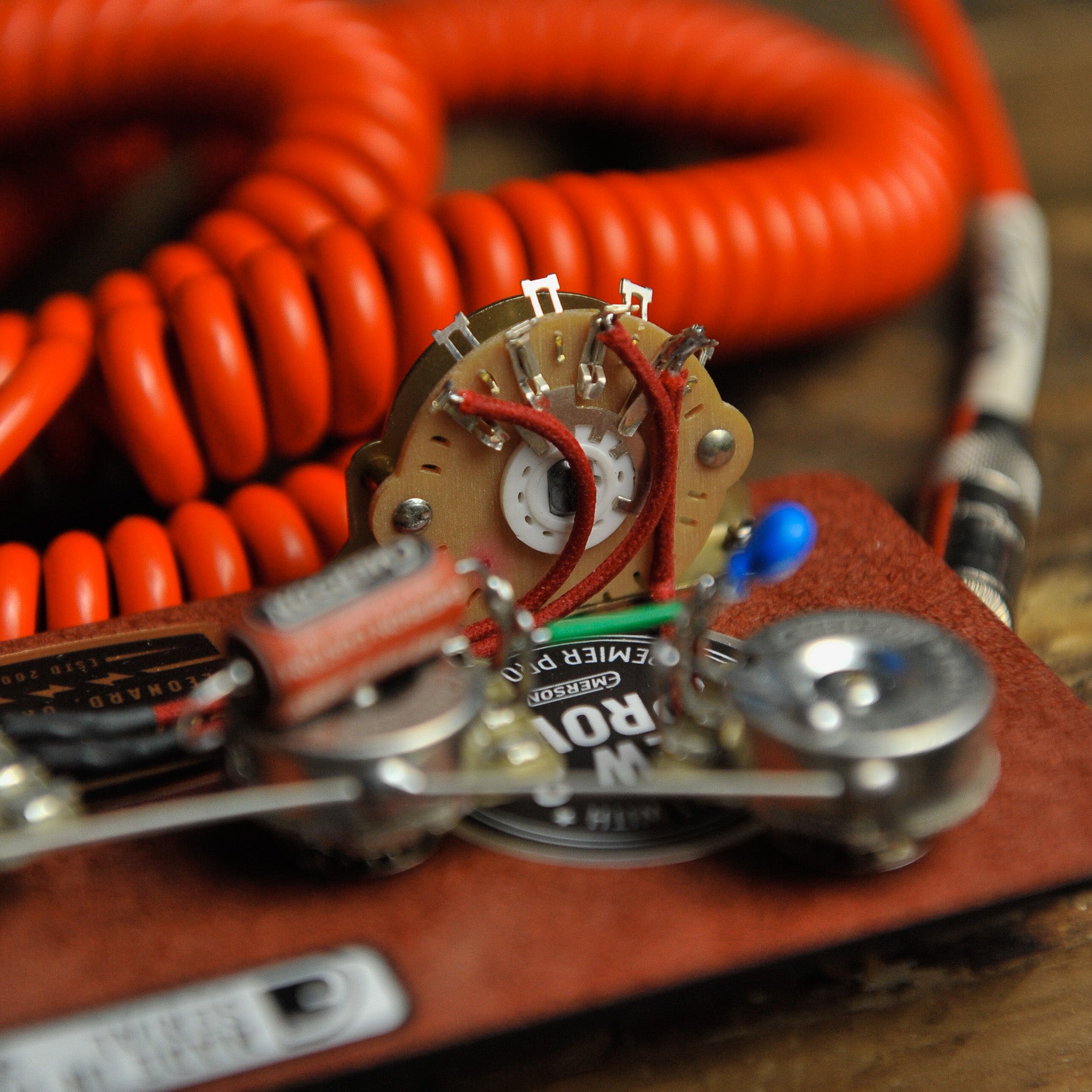

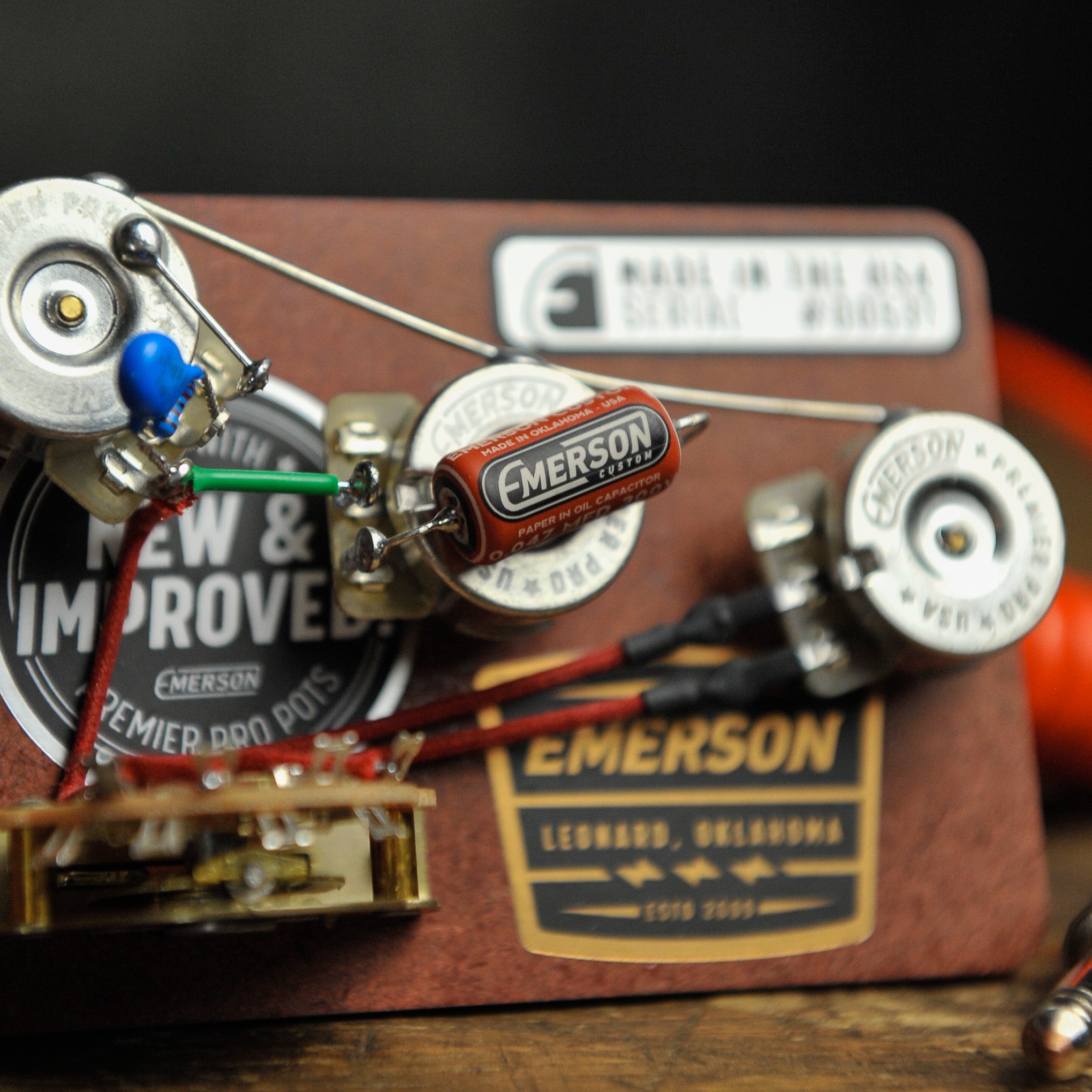

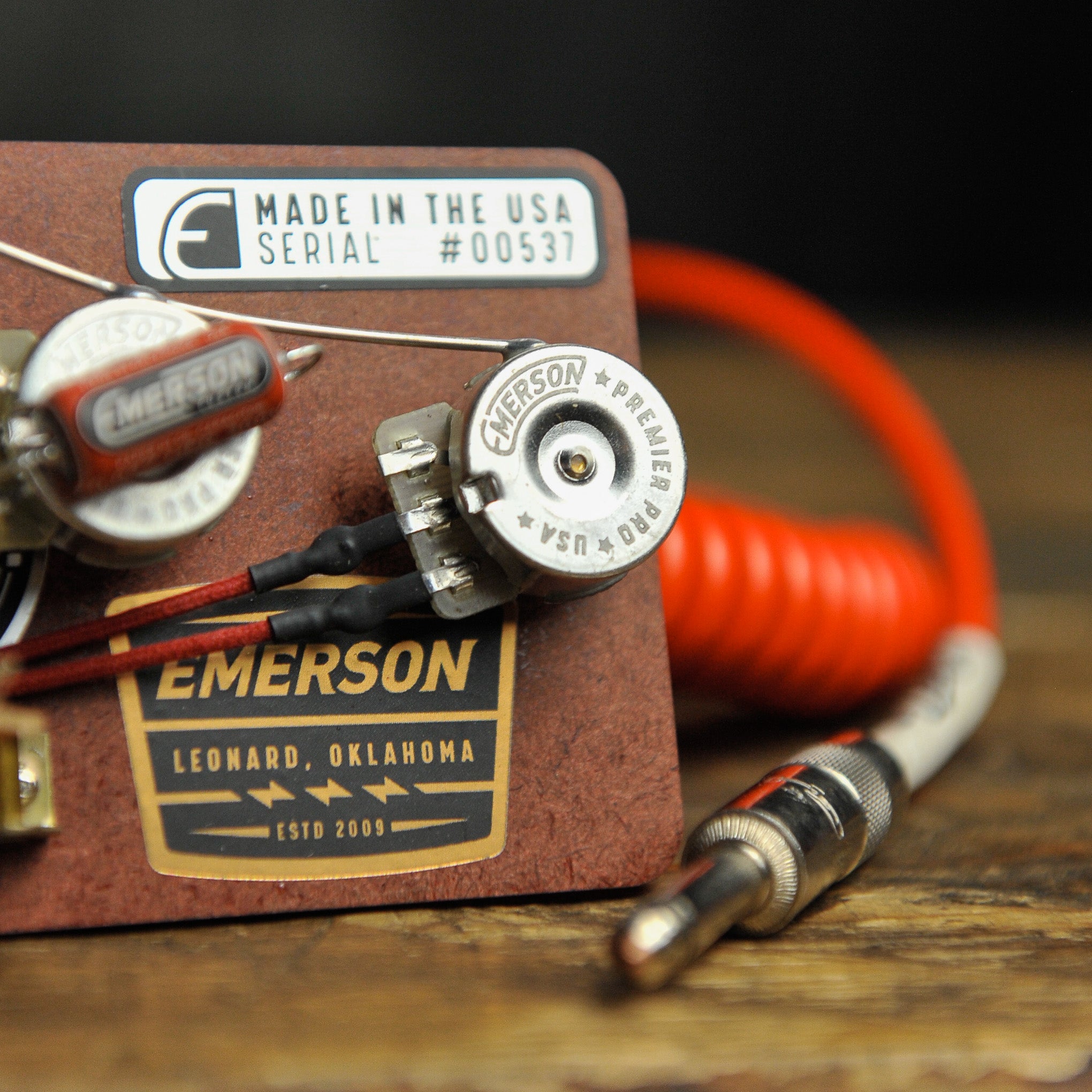

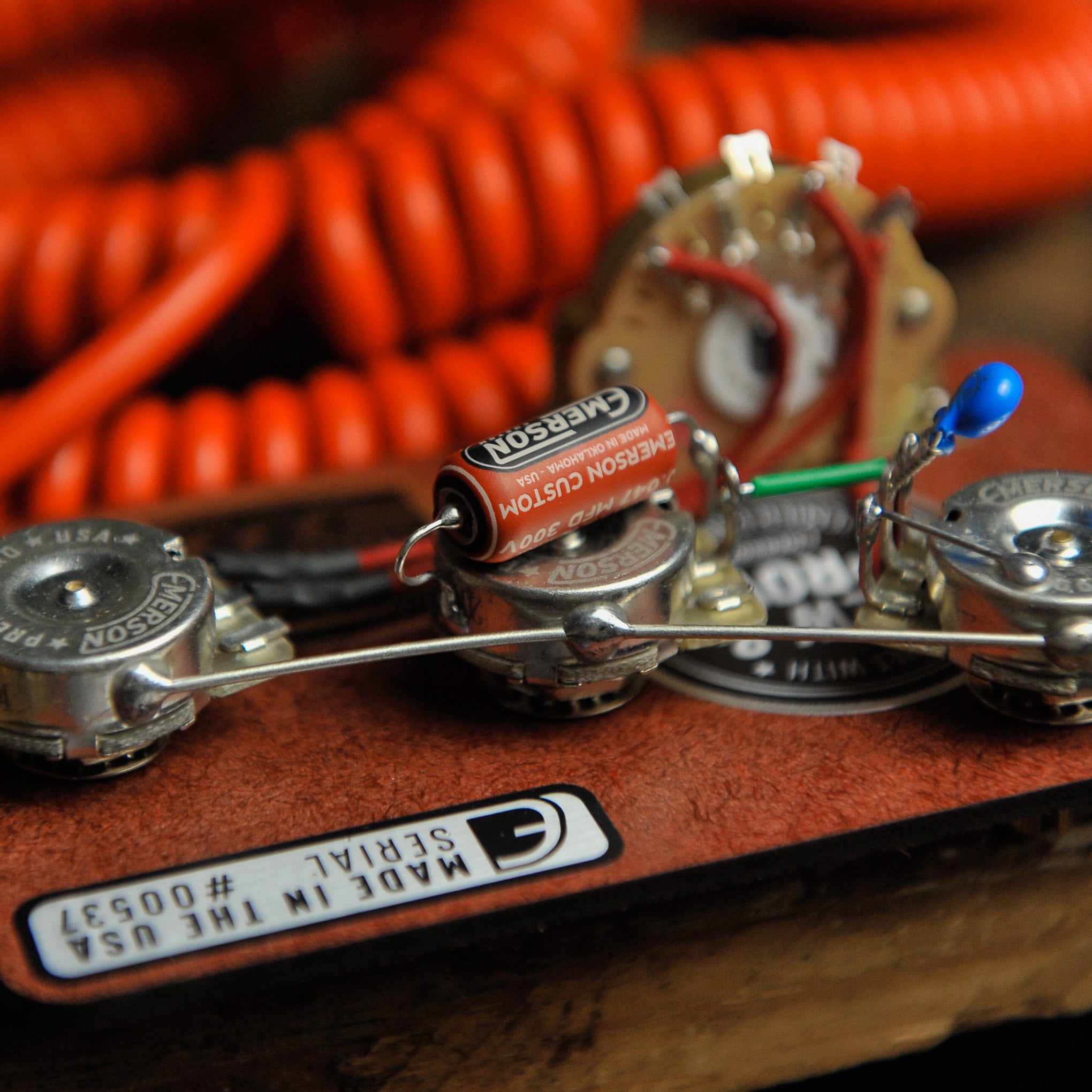

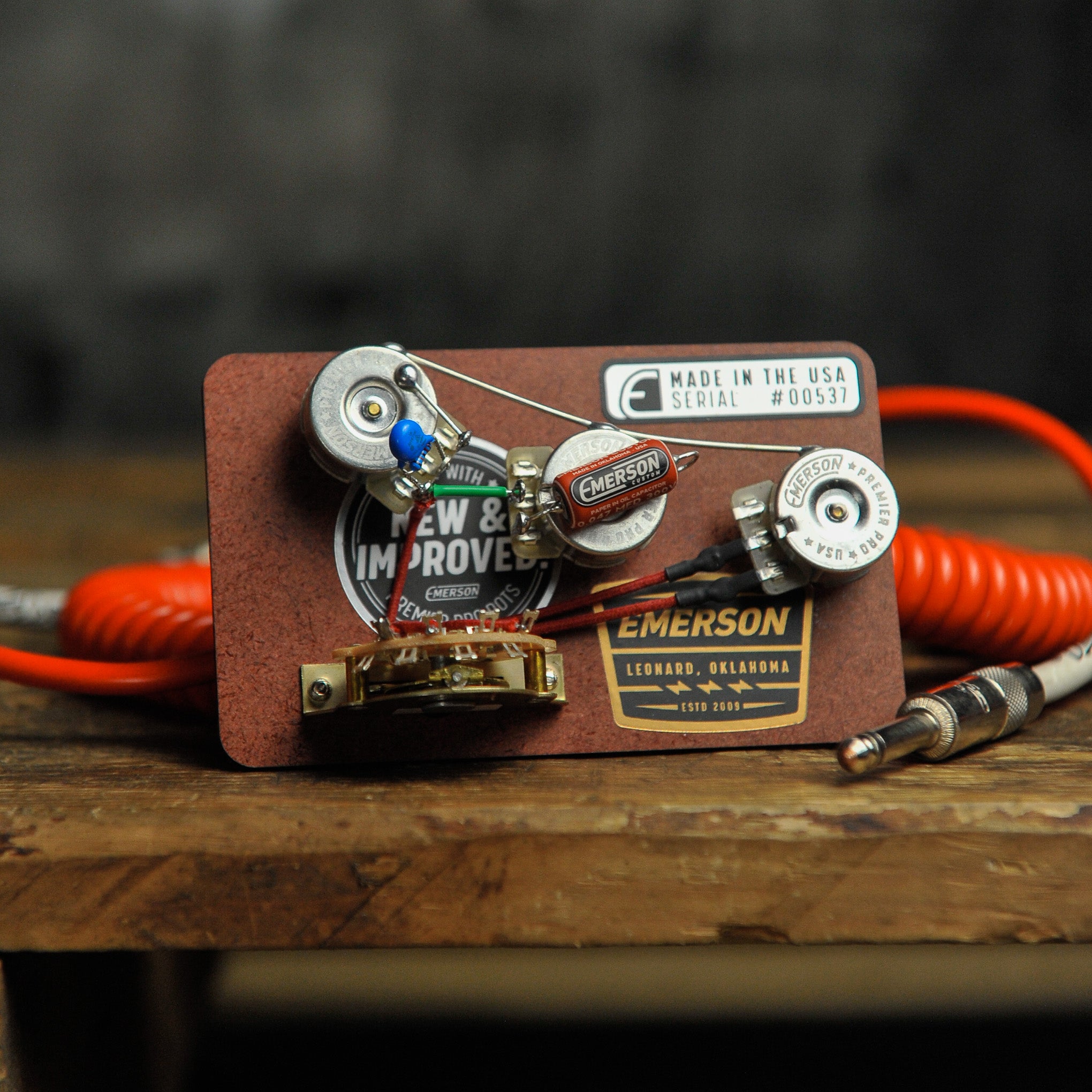

Emerson S5B Stratocaster Blender 5-Way Prewired Kit

Brand: Emerson

$129.00

2 in stock.

For credit card payment - Choose Simplify Commerce at checkout

Our Blender wiring has 1 volume, 1 master tone, and a Blender pot. In the neck position you can blend the bridge pickup in as much as you want. In the bridge position you can blend the neck pickup in as much as you want. In positions 2 and 4 you can have all three pickups on at once. The nicest part about it is the fact of it being so user friendly. Everything else seems to be hard to use on the fly.

SPECS:

1: Emerson Pro CTS Volume Pot (Master Volume) [3/8" Split Shaft]
1: Emerson Pro CTS Tone Pot (Master Tone) [3/8" Split Shaft]
1: Emerson Pro CTS 250K Blender Pot [3/8" Split Shaft]
1: 0.047uf Emerson Paper in Oil Capacitor
*(0.022uf are used with 500K-Ohm Pots Option)*
1: Volume Mod (Treble Bleed; Retains Clarity when rolling back volume knob)
1: Prewired Jack
1: Wiring Diagram

Control Layout:
Master Volume
Master Tone
Blender Pot

SWITCH & BLENDER POT FUNCTION:

Blender Pot on 10:
Position 1: Bridge
Position 2: Bridge & Middle
Position 3: Middle
Position 4: Middle & Neck
Position 5: Neck

Blender Pot on 1:
Position 1: Bridge w/ Neck Pickup Faded in
Position 2: Bridge & Middle w/ Neck Pickup Faded in
Position 3: Middle
Position 4: Middle & Neck w/ Bridge pickup Faded in
Position 5: Neck w/ Bridge Pickup Faded in

**Installation Tips for Knobs on Split Shaft Pots: Our Emerson Pro split shaft pots are made to fit USA Spec 24 spline push-on knobs. Import Guitars will need new USA Spec Knobs. We recommend that you slightly crimp together the top of the potentiometers shaft ever so slightly so that when you go to push on the knob you don't damage the pot shaft by exerting too much downward pressure.
