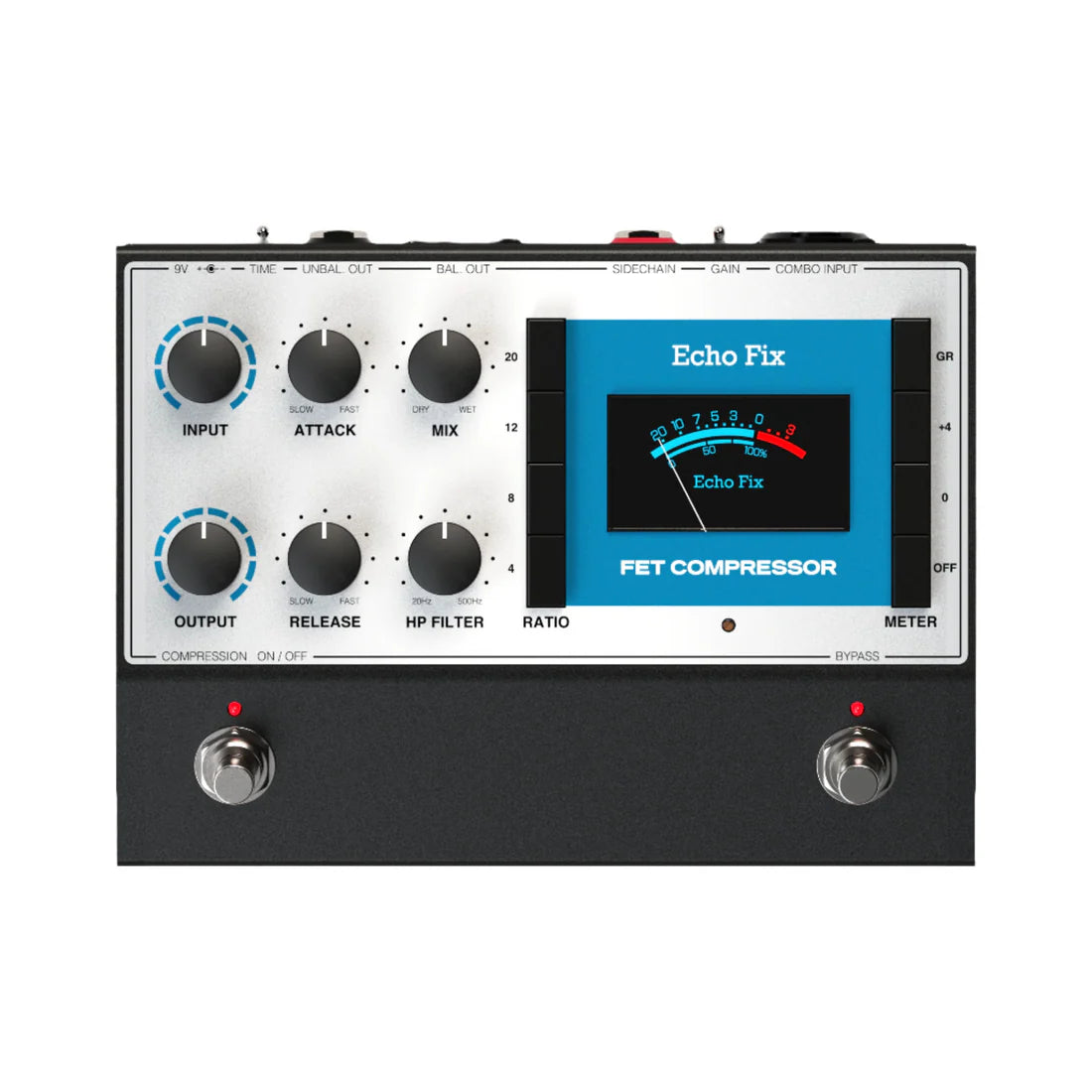

Echofix EF-P5 Compressor Pedal

Discover professional-grade analog compression housed in a pedalboard-friendly unit. The EF-P5 features premium input/output transformers, a true FET-style compression engine, and advanced controls for dynamic precision. Whether used for tracking, mixing, or live performance, this compact and intuitive compressor delivers studio-level tone with modern flexibility.

Specifications

• Signal Path: 100% analog with high-quality input and output transformers

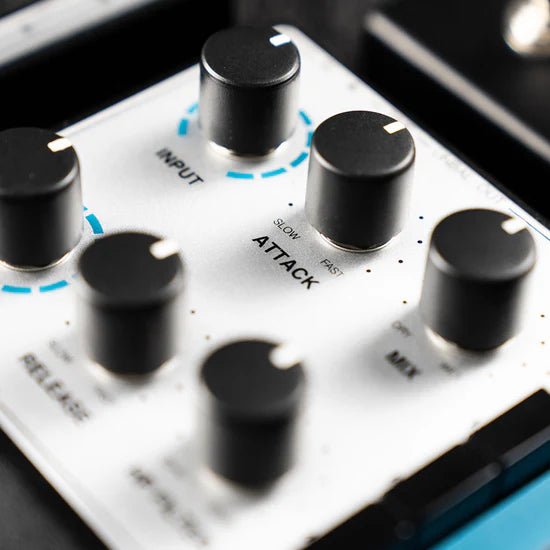

• Controls: Adjustable Attack and Release, Mix (for parallel compression), High-Pass Filter for clarity

• Ratio Settings: Switchable 4:1, 8:1, 12:1, and 20:1 compression ratios

• Features:

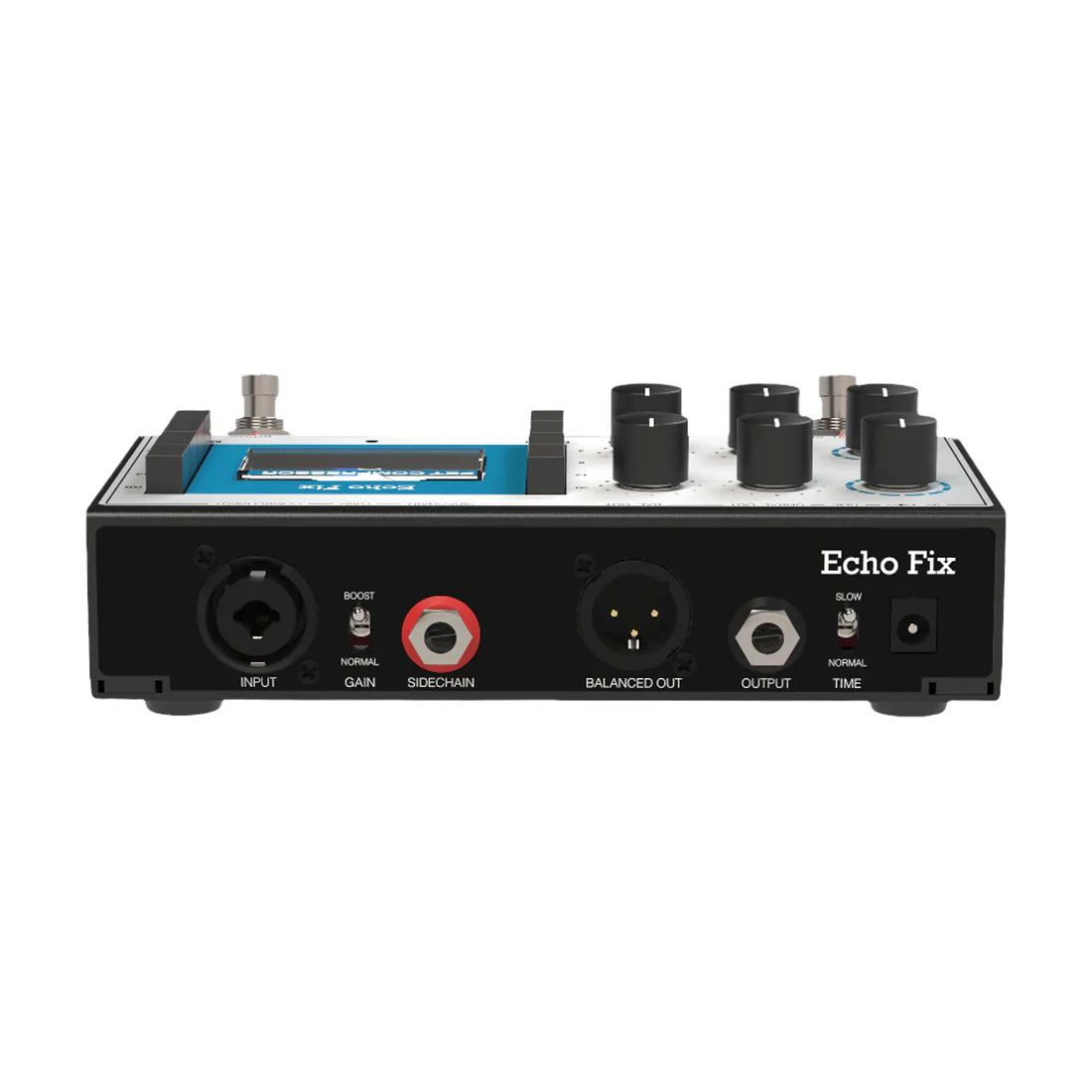

  • Rear side-chain input for ducking

  • Rear switch for input gain boost

  • Programmable power-on state via footswitch

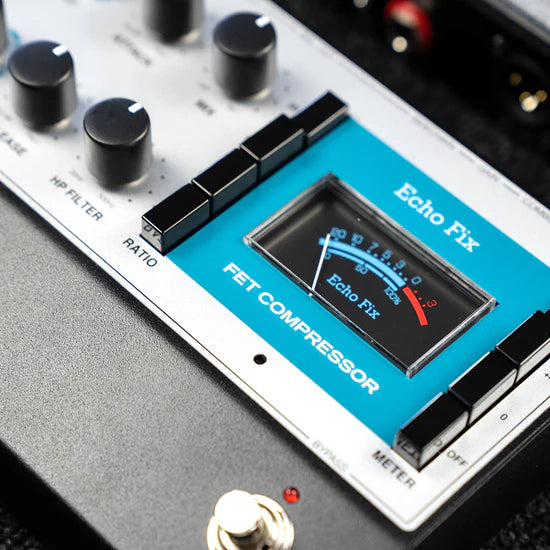

  • Metering options: Gain Reduction, 0 dBu, +4 dBu, or meter off

• Power & Connectivity:

  • Power: 9 V DC (center-negative), draws approx. 350 mA

  • I/O: Combo XLR and ¼″ TS input/output for seamless integration

• Other:

  • Compact pedal format with a rugged, real-world footprint

  • 12-month limited manufacturer’s warranty
