Wampler Ratsbane Distortion Pedal

The Ratsbane is Brian Wampler’s tribute to the iconic 1980s "Rat"-style distortion, enhanced with modern versatility. It effortlessly spans the spectrum from rich boost to gritty fuzz, featuring intuitive controls and tone-shaping flexibility in a compact, road-ready package.

Specifications

• Brand / Origin: Wampler, USA

• Control Knobs: Volume, Distortion, Filter (tone control)

• Toggle Switches:

  • Gain: 3-stage (center = stock, left = smooth boost, right = intense creamy distortion)

  • Voice: 2-position (tightens compression and clipping, reducing fuzz for modern high-gain clarity)

• Clipping: Gain and Voice controls allow everything from classic overdrive to saturated fuzz

• Filter Function: Counter-clockwise = bright, cutting clarity; clockwise = warm, rounded tone

• Circuit: Swappable op-amp socket for modding or experimentation

• Bypass: True bypass (3PDT)

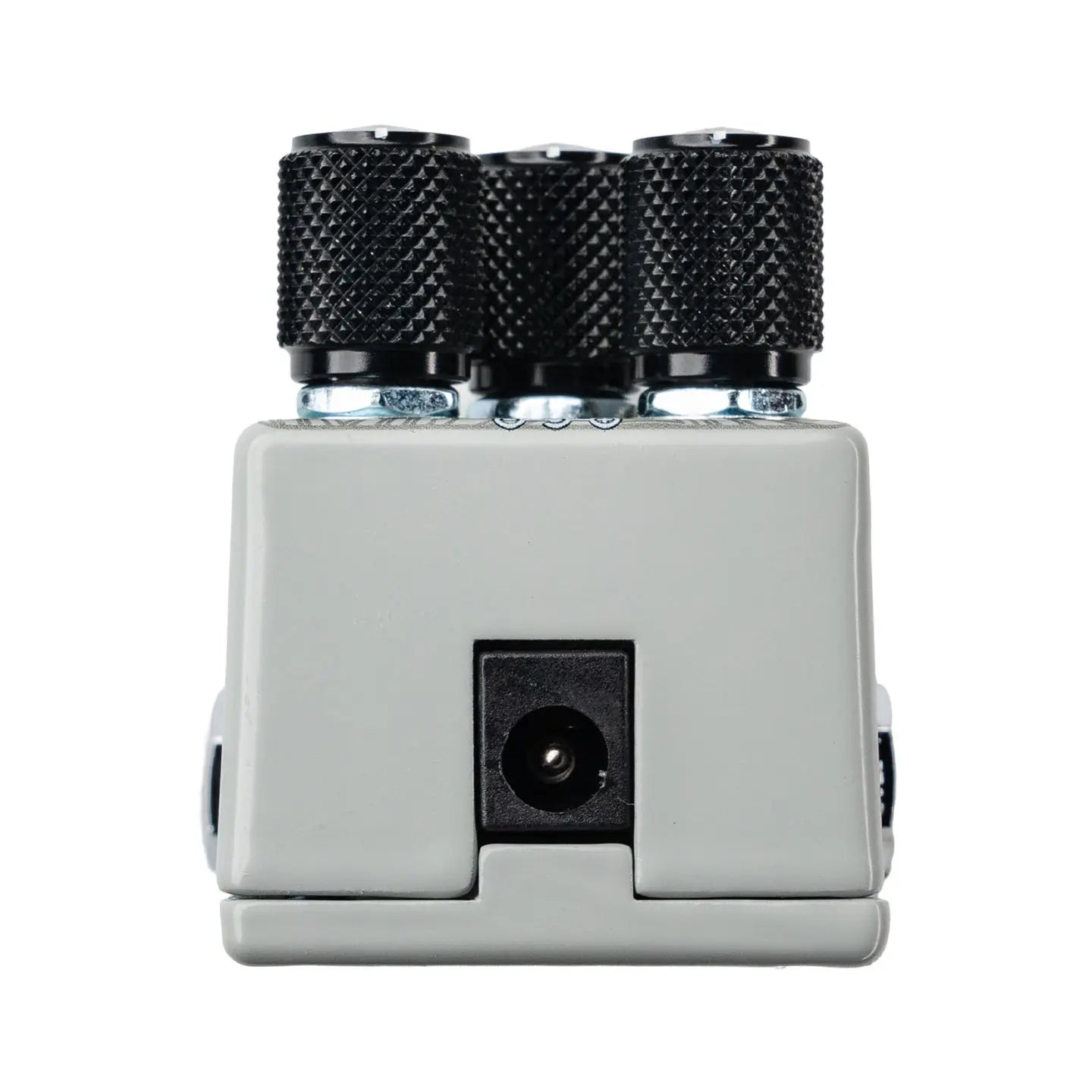

• Power Input: 9–18V DC (no battery option)

• Current Draw: Approximately 2.5 mA (9V) to 3.2 mA (18V)

• Construction: Compact mini enclosure (1.5″ × 3.5″ × 1.5″) built for durability with high-grade components
