Emerson Premier Pro Les Paul Junior 550k Prewired Kit

Product Description

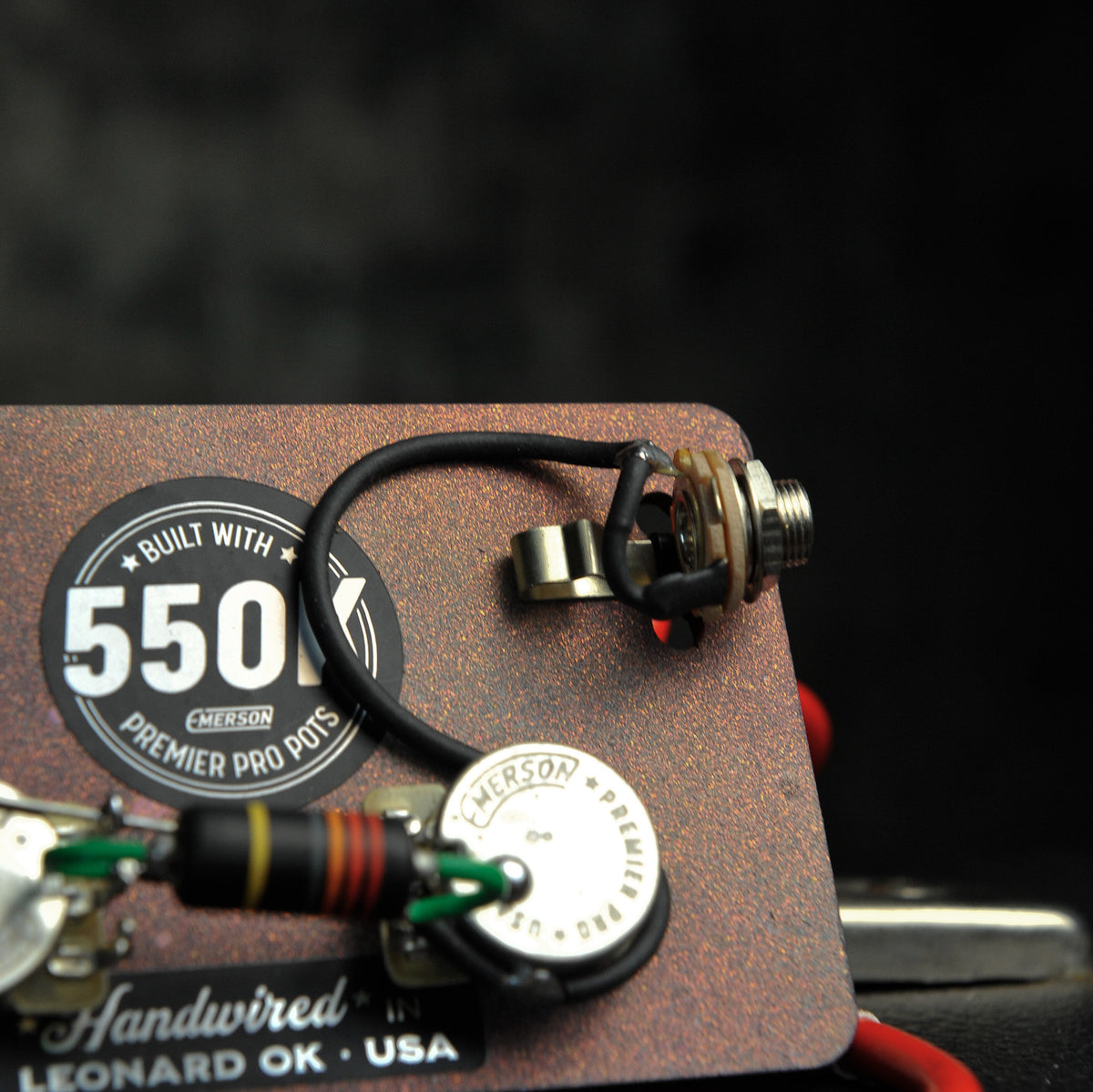

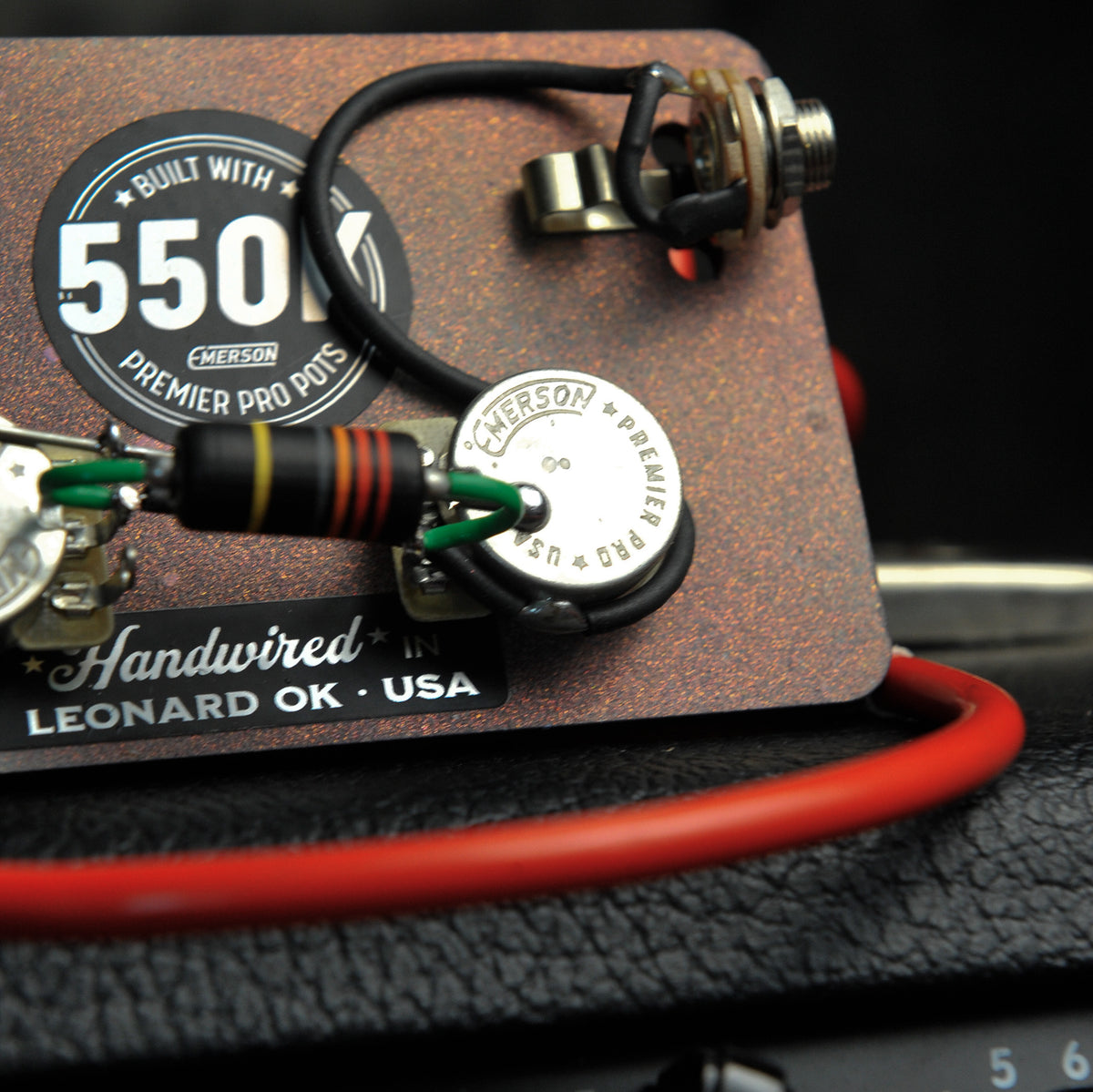

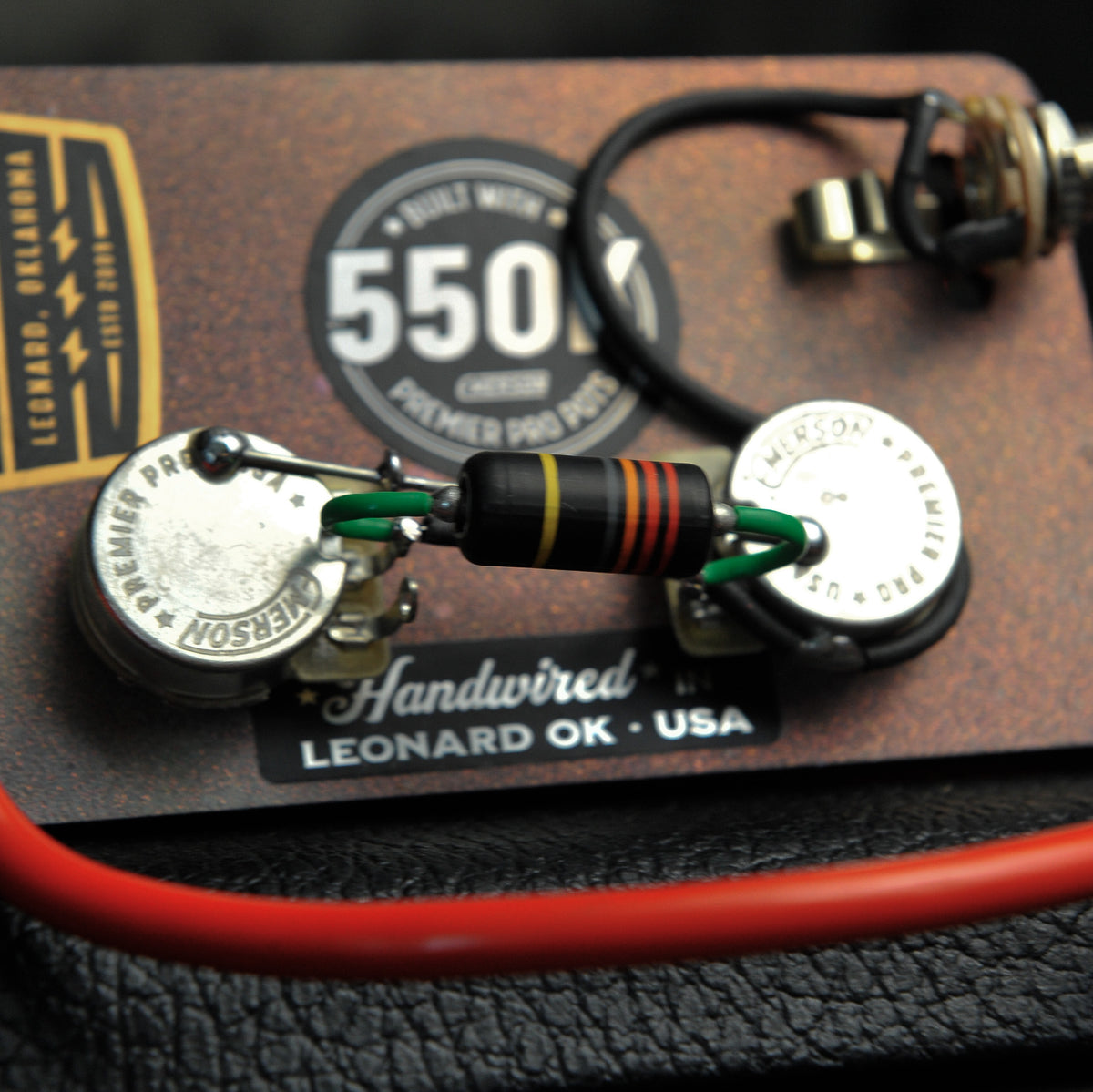

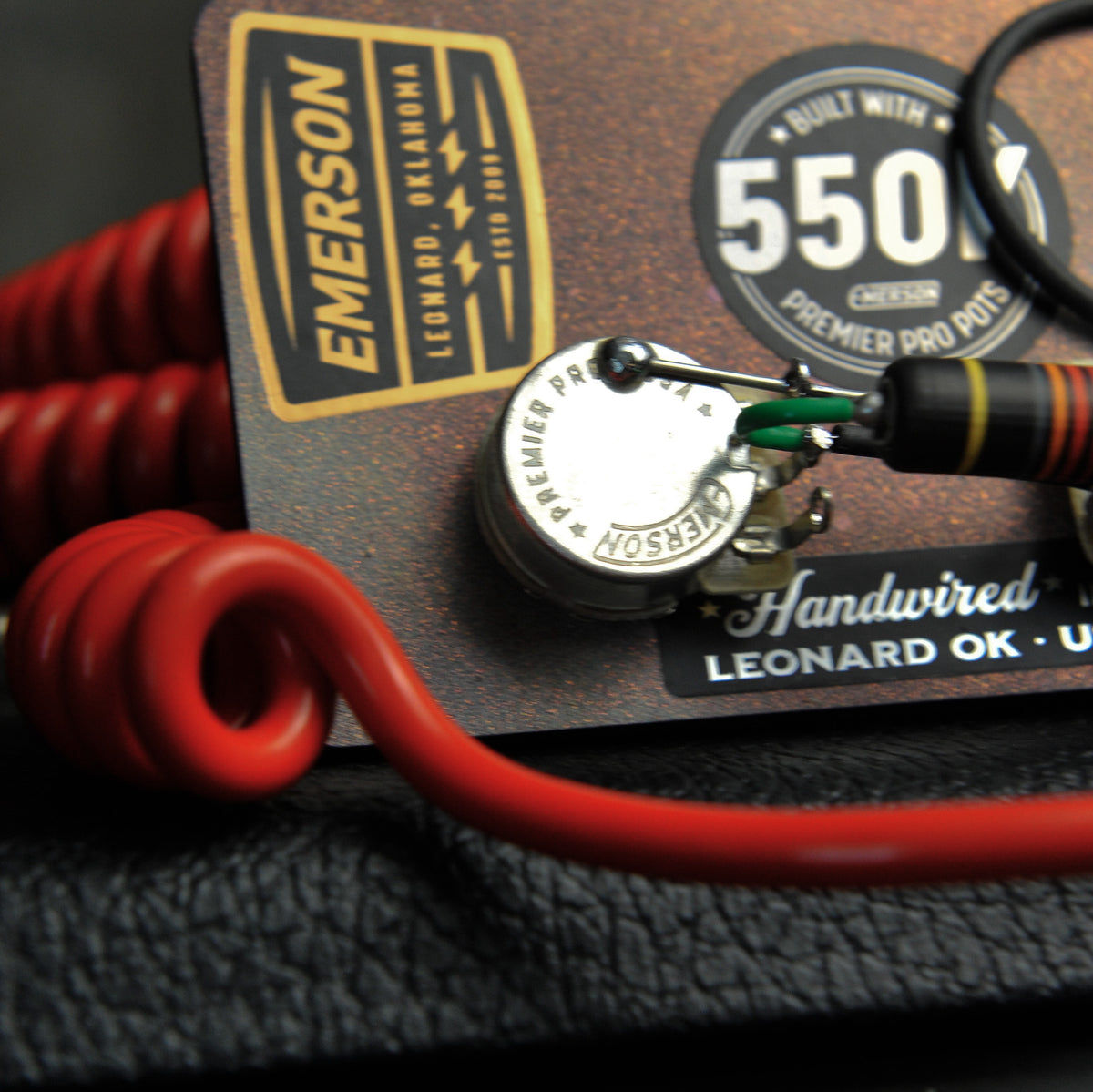

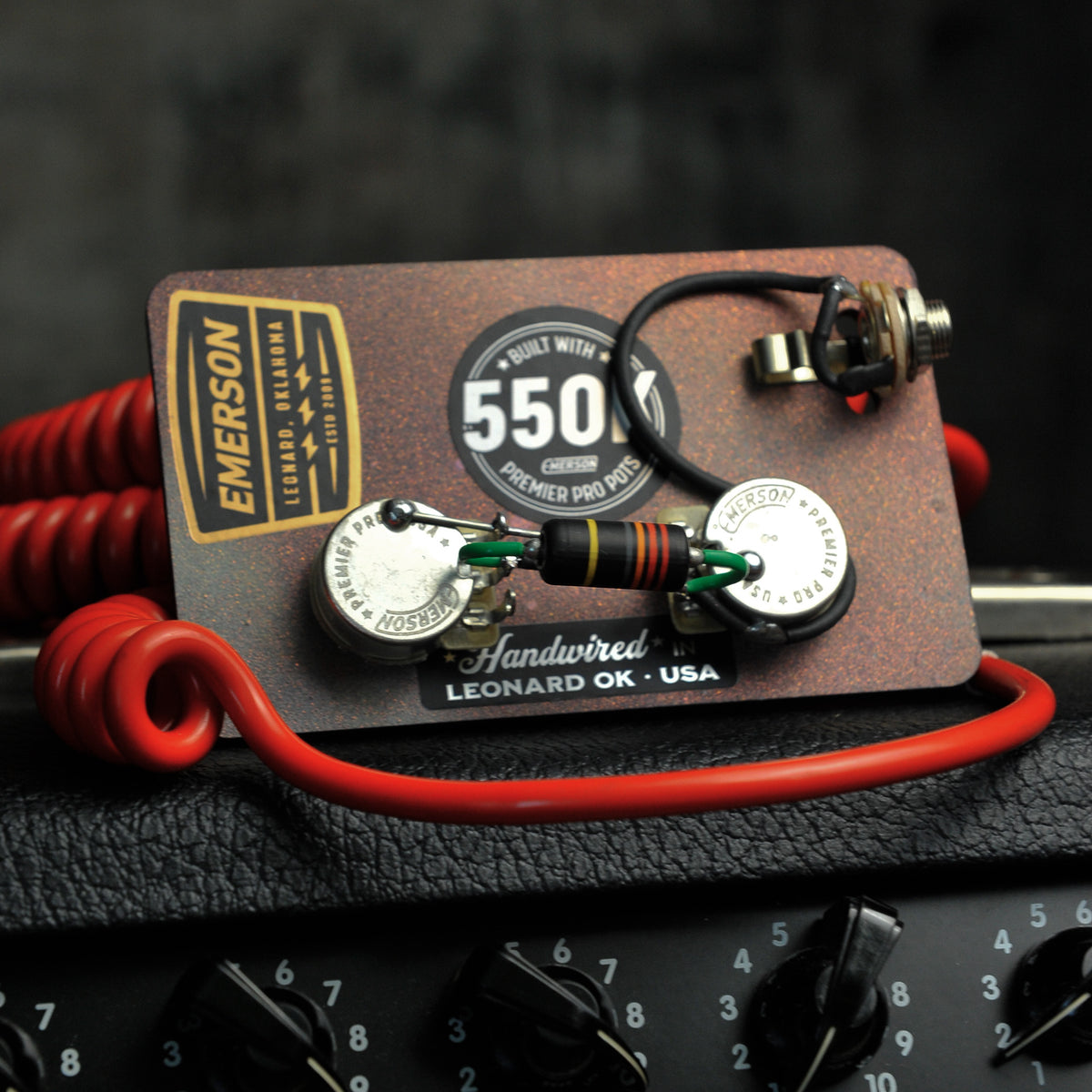

The Emerson Premier Pro Les Paul Junior 550K Prewired Kit is a handwired electronics assembly designed for Gibson Les Paul Junior guitars. Built in the USA and wired in traditional '50s style, it provides a complete volume and tone control harness using premium components.

The kit features two 550K Emerson Premier Pro potentiometers, a prewired Switchcraft 1/4" mono jack and an Emerson Bumblebee 0.022µF Paper in Oil capacitor. The assembly is wired with 22 AWG external-braid vintage push-back wire, with heat-shrink insulation used on the jack connections for durability.

'50s-style wiring reduces the typical treble loss experienced when rolling back the guitar's volume, while allowing the volume and tone controls to interact more dynamically. This provides a responsive control range and makes it easier to clean up an overdriven amplifier directly from the guitar's volume control.

Key Features

• Handwired in the USA
• Designed for Gibson Les Paul Junior guitars
• Traditional '50s-style wiring
• Two Emerson Premier Pro 550K potentiometers
• Helps retain clarity when rolling back guitar volume
• Emerson Bumblebee Paper in Oil capacitor
• Prewired Switchcraft 1/4" mono jack
• Vintage-style 22 AWG external-braid push-back wire
• Heat-shrink insulated jack connections
• Wiring diagram included

Specifications

• Brand: Emerson
• Series: Premier Pro
• SKU: 550K-LP-JUNIOR
• Product Type: Prewired Les Paul Junior Wiring Kit
• Application: Gibson Les Paul Junior
• Wiring: '50s Style
• Potentiometers: 2 × Emerson Premier Pro 550K
• Potentiometer Type: Split Shaft
• Knob Compatibility: USA-Spec 24-Spline Push-On Knobs
• Capacitor: Emerson Bumblebee Paper in Oil
• Capacitor Value: 0.022µF
• Output Jack: Switchcraft 1/4" Mono, Prewired
• Wire: 22 AWG External-Braid Vintage Push-Back
• Wiring Diagram: Included
• Handwired in: USA
