Ernie Ball VPJR Tuner Pedal (Black)

Product Description

The Ernie Ball VPJR Tuner Volume Pedal – Black combines the smooth, reliable performance of an Ernie Ball volume pedal with a high-definition digital chromatic tuner. This versatile 2-in-1 design saves valuable pedalboard space while providing convenient volume control and accurate, silent tuning.

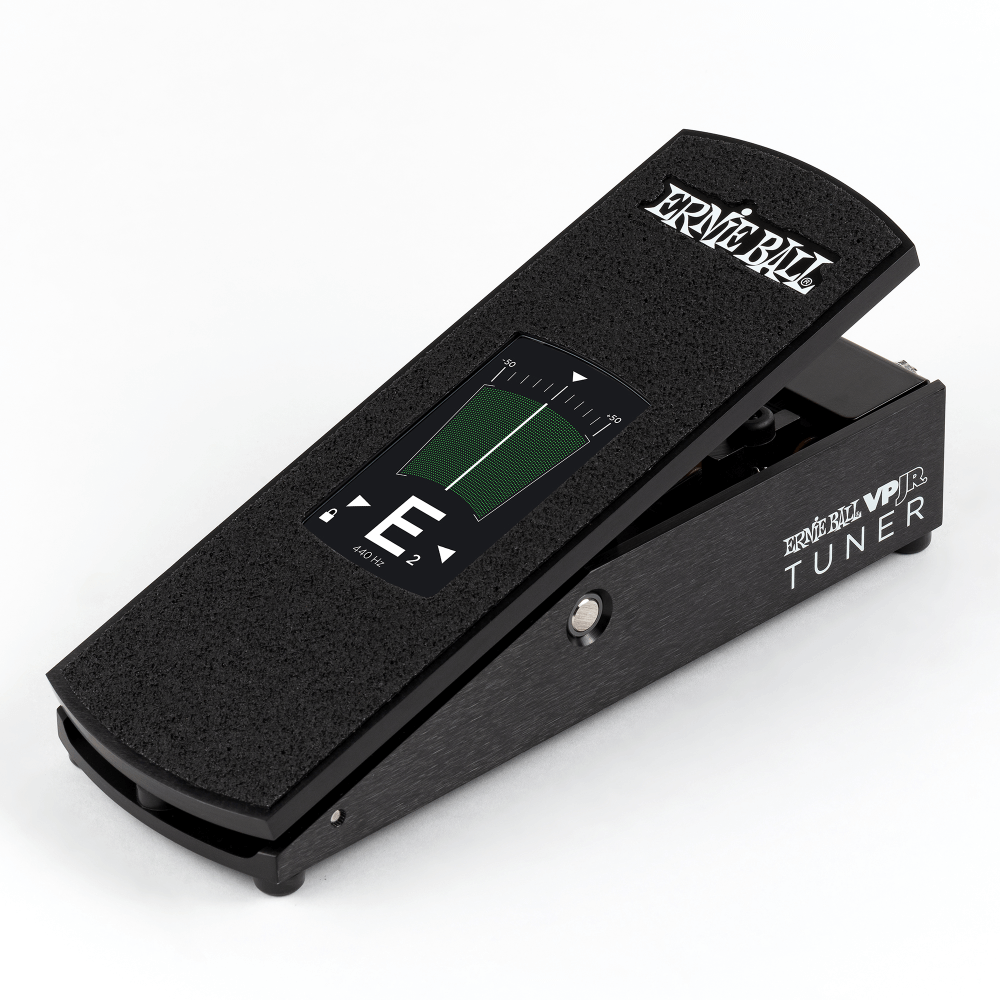

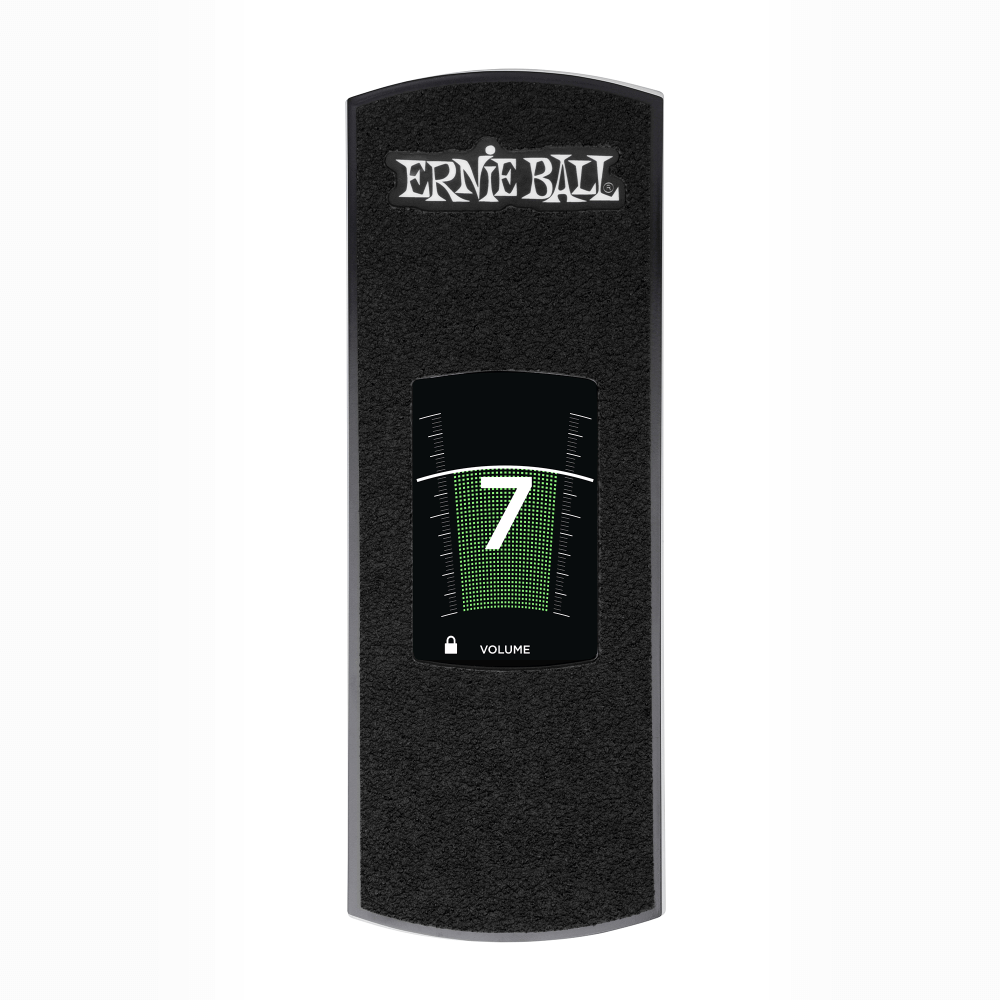

The integrated touchscreen display automatically switches to tuner mode when the pedal is in the heel-down position, allowing silent tuning between songs. As the pedal moves forward, the screen changes to a graphic volume display, providing clear visual feedback of your output level.

Three selectable display modes offer additional flexibility: volume only, tuner only, or automatic volume and tuning. The touchscreen also allows players to adjust the reference pitch between 432Hz and 447Hz, with 440Hz as the standard setting.

Built with the rugged construction of Ernie Ball's traditional volume pedals, the VPJR Tuner accepts both passive and active instrument signals, making it suitable for guitar and bass. Its 9–18V DC compatibility provides flexible power options and additional headroom when operating at higher voltages.

Key Features

• Combines a volume pedal and chromatic tuner in one unit

• High-definition touchscreen for clear tuning and volume displays

• Automatic silent tuning when the pedal is in the heel-down position

• Three selectable display modes for flexible operation

• Adjustable tuner reference pitch

• Touchscreen lock prevents accidental setting changes

• Compatible with passive and active guitar and bass signals

• Rugged Ernie Ball volume pedal construction

• Can function as a master volume or gain control

• Space-saving design for modern pedalboards

Specifications

• Brand: Ernie Ball

• Model: VPJR Tuner

• Product Type: Volume Pedal / Chromatic Tuner

• Colour: Black

• Tuner Type: Digital Chromatic

• Display: High-Definition Touchscreen

• Display Modes: Volume Only, Tuner Only, Volume + Tuning

• Tuning Reference Range: 432–447Hz

• Default Reference Pitch: 440Hz

• Input: Mono 6.35mm Jack

• Supported Signals: Passive and Active Mono

• Power Requirements: 9–18V DC

• Touchscreen Lock: Yes

Controls

• Foot Treadle: Adjusts the instrument's volume level

• Touchscreen: Displays tuning information or volume level

• Upper Screen Double Tap: Switches between the three display modes

• Lower Screen Double Tap: Opens the tuner reference pitch menu while the tuner is displayed

• Pitch Selection: Tap the desired reference frequency

• Lock Icon: Hold for three seconds to lock or unlock the touchscreen
