Friedman

Friedman IR-D 2-Channel All-Tube High Voltage Preamp

Regular price $899.00 AUD
Sale price $899.00 AUD Regular price $999.00
Sold out

The Friedman IR-D dual-channel tube preamp is an entire Friedman rig in a compact pedalboard-friendly package. IR-D boasts two fully independent identical foot-switchable channels which are based on Friedman’s legendary designs. This Dave modded JTM45 circuit delivers the signature British tone for which Friedman is known for.

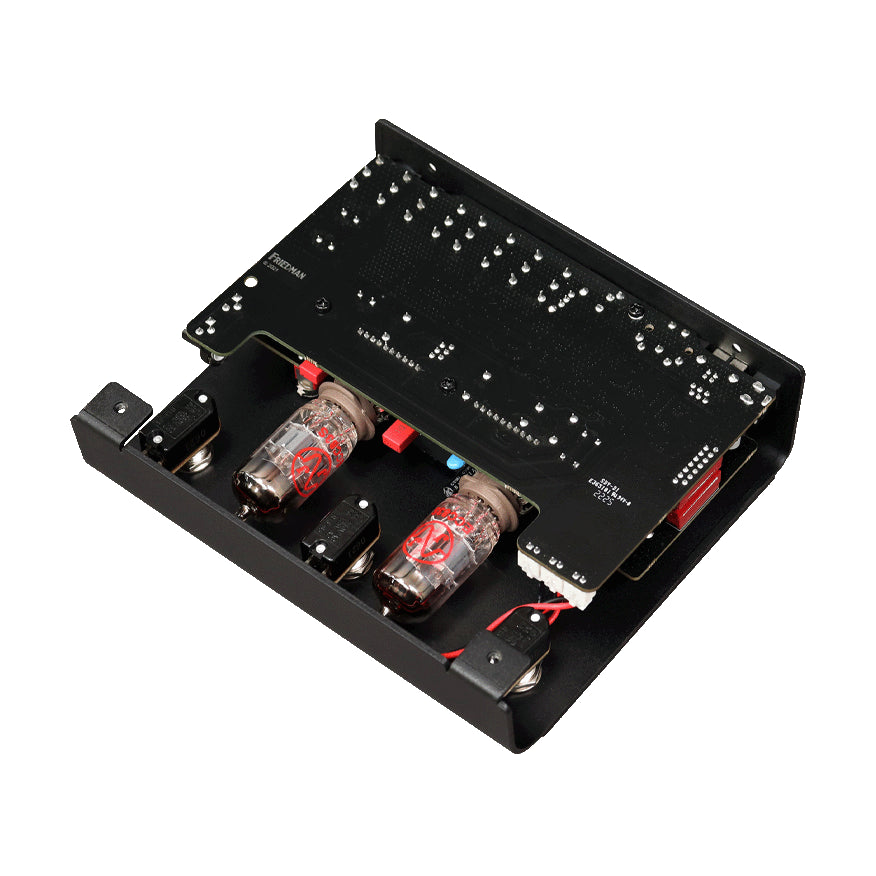

Powered by two high-voltage 12AX7 preamp tubes, each channel delivers the harmonic richness and touch response of Dave Friedman’s finest designs. DSP IR cabinet/power amp simulation sends a studio-quality mic’d-up tone to your DAW or Front-of-House. The IR-D provides easy-to-use controls without complex menus and 100-page manuals.

IR-D isn't simulating a Friedman tube preamp. It is one. While many available preamp pedals utilize tubes to 'warm up' their digital or solid-state circuit, two glowing hot 12AX7 preamp tubes, running at the proper high voltage, are this pedal's beating heart. A genuine preamp in every way, IR-D delivers all the tone, response, gain characteristics, and harmonic complexity you expect from a Friedman design.

IR-D boasts two fully independent identical foot-switchable channels which are based on Friedman’s legendary Dirty Shirley/Twin Sister design. This Dave modded JTM45 circuit delivers the signature British tone for which Friedman is known for.

Both channels feature their own independent and highly tweakable Boost circuits. This essentially gives you four channels, accessible with the tap of your toe.

IMPULSE RESPONSE CABINET AND POWER AMP SIMULATION

All great tube amps need a great speaker cabinet, and whether sending your signal straight to the board or silently playing through the onboard headphone output, IR-D gives you a selection of Dave Friedman’s favorite IRs. Select the IR per channel using the 3-way mini toggle switches or load your own quickly and easily via Friedman’s editing software. You can even disengage the onboard IRs entirely to use IR-D’s tube preamp with another IR loader.

EXPANDED MIDI CONTROL

IR-D is MIDI-capable. Whether pulling up presets with a pedalboard controller or switching channels with the laptop running your entire show, IR-D is ready for the job. It truly is the perfect marriage of modern control and classic tube tone.

FLEXIBLE RIG INTEGRATION

The IR-D’s transparent effects loop allows you to easily integrate your favorite effects with everything from the most straightforward setups to the most complex digitally controlled rigs.

Features

  • All-tube HIGH-VOLTAGE preamp – DI
  • 2 x 12AX7 preamp tubes
  • Two independent identical channels + boost
    o Based on Friedman’s legendary Dirty Shirley/Twin Sister designs
  • MIDI programmable features:
    • Channel select / Boost
    • IR select
    • Thump and Presence – three-way switch per channel
    • Effects loop ON/OFF
    • Boost Lock
  • Power amp simulation with software editable Presence and Thump (per channel)
  • Low latency Impulse Response cabinet simulation (bypassable)
  • Three position CAB/IR select switch per channel (programmable via software)
  • 13 free Friedman IRs or load your own
  • Boost Volume and Gain controls (per channel)
  • Volume and Gain controls (per channel)
  • Full EQ consisting of Bass, Middle, Treble (per channel)
  • 2-way Bright switch (Per Channel)
  • 3-way Structure switch (Per Channel)
  • Three multi-function foot switches
  • Ultra-transparent series FX loop (bypassable)
  • TRS balanced output
  • Headphone output
  • MIDI 5 pin standard connector and USB MIDI
  • USB software editor – powered by SYNERGY
  • Limited 3-year Warranty
  • Universal 12V Power Supply Included
  • 6 Foot USB2.0 A Male to B Male cable Included
  • Dimensions (Including Knobs): 5.5” (D) x 6.5” (W) x 2.3 (H)
  • Weight: 1.5 lbs.
