Friedman IR-J Jake E Lee Signature 2-Channel All-Tube High Voltage Preamp

The Friedman IR-J is the Jake E. Lee Signature dual-channel tube preamp — a complete Friedman amp rig distilled into a compact, pedalboard-friendly powerhouse. Inspired by the legendary JEL-100 and JEL-20 heads, the IR-J captures Jake’s unmistakable blend of ‘70s muscular tone and ‘80s high-gain aggression, delivering the punch, clarity, and harmonic complexity that define his iconic sound.

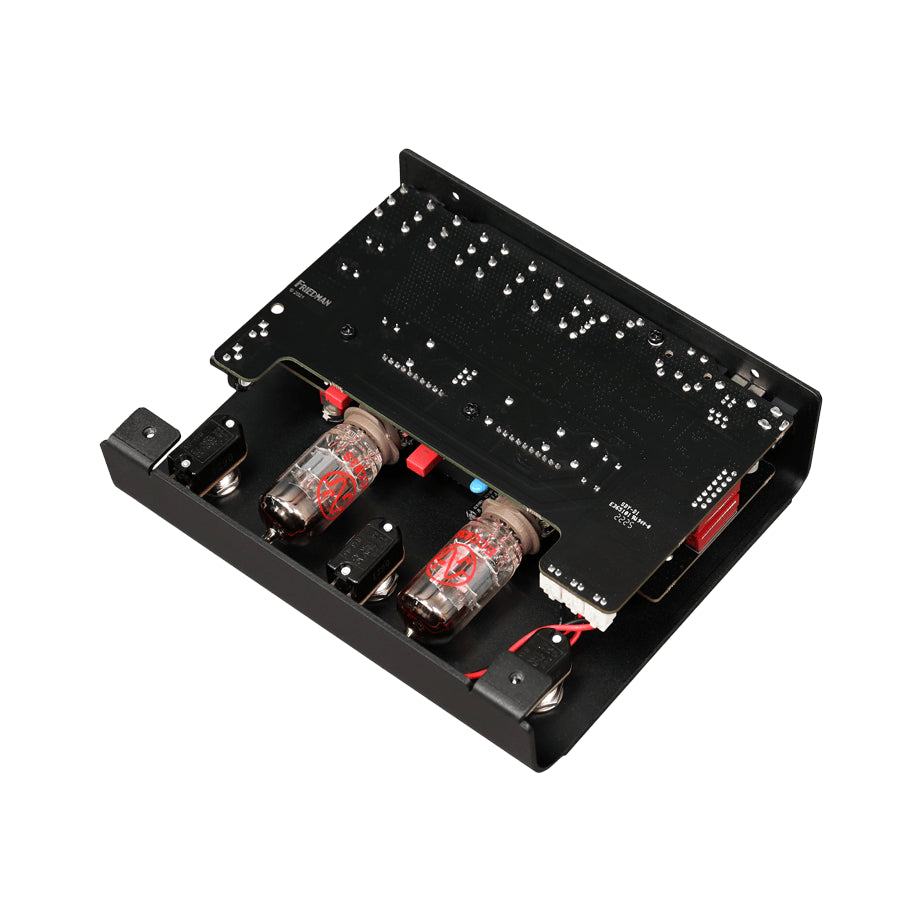

Powered by two high-voltage 12AX7 tubes, the IR-J isn’t simulating a Friedman circuit — it is one. Each channel offers full EQ control, volume, gain, boost, and bright options, while Channel 2 includes a two-position gain structure switch for switching between Plexi-style crunch and JCM-inspired drive. Both channels feature independent TS-style boost circuits with dedicated tone and volume controls — giving you up to four footswitchable tonal stages.

The onboard ultra-low-latency Impulse Response (IR) cabinet and power amp simulation provides studio-quality direct tones for live performance or recording. Developed with OwnHammer, it includes 18 premium Friedman cabinet IRs, and users can easily load their own via the included Friedman Editor software. The software also allows editing of Presence, Thump, and Low-Pass Filter parameters per channel for deep tonal refinement.

With full MIDI control, USB connectivity, and a programmable effects loop, the IR-J seamlessly integrates into any modern rig — whether you’re tracking in the studio, performing on stage, or practicing silently via the headphone output.

Features:

• Jake E. Lee Signature Model

• All-tube high-voltage preamp (2 × 12AX7)

• Two fully independent channels, each with:

  • Volume, Gain, 3-band EQ (Bass, Middle, Treble)

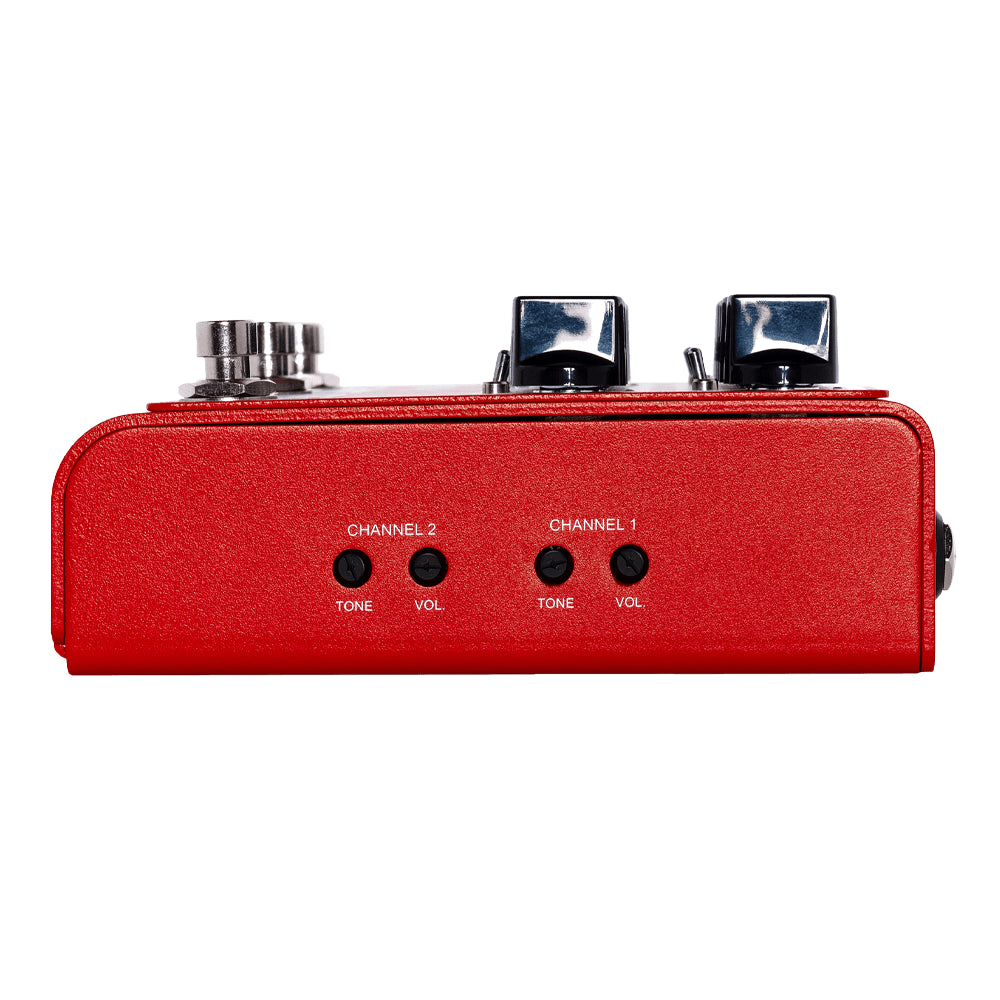

  • TS-style Boost with Tone & Volume controls

  • Bright switch (3-way)

  • Channel 2: Two-way Gain switch

  • Presence, Thump, and Low-Pass Filter (via software)

• Impulse Response Cabinet/Power Amp Simulation:

  • 18 Friedman IRs (3 factory-loaded)

  • Load your own IRs via Friedman Editor

  • Bypassable IR section

  • Sub-1ms latency with 50ms IR length for superior clarity

• MIDI Programmable:

  • Channel, Boost, IR Select, FX Loop, Thump, Presence & more

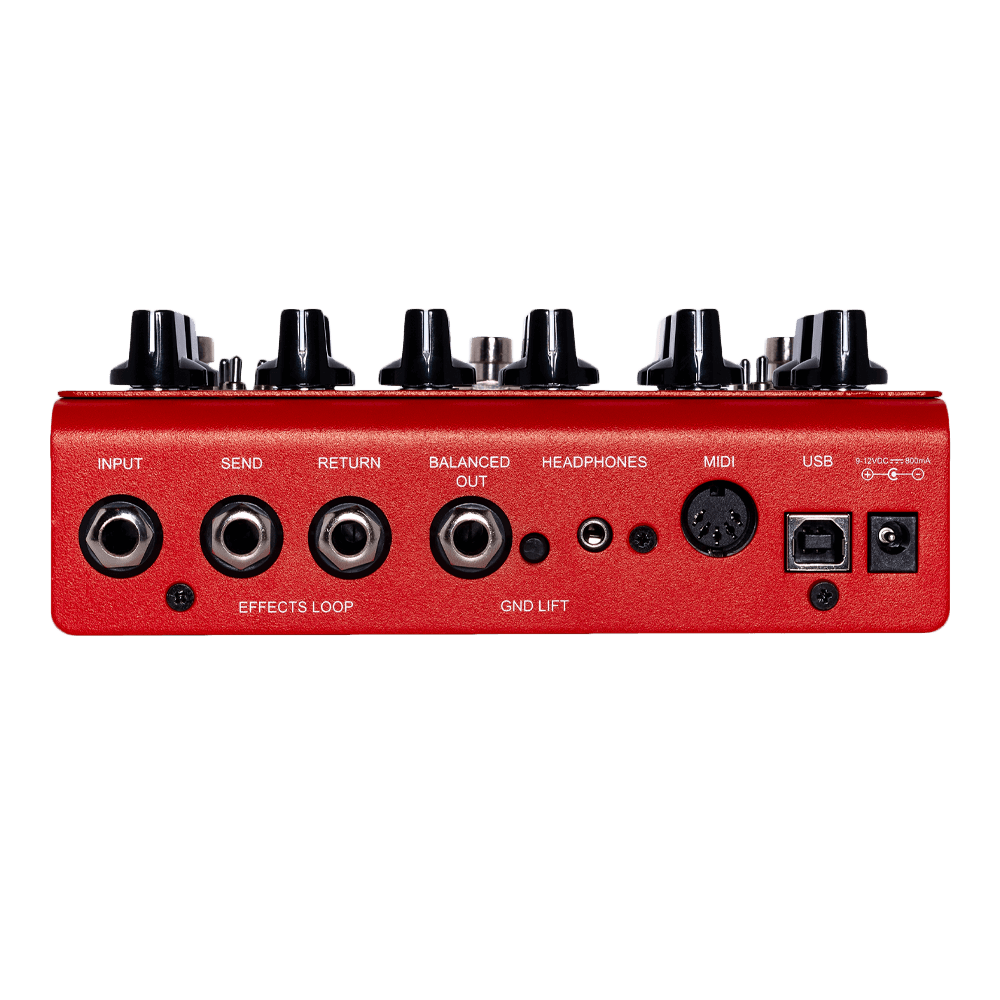

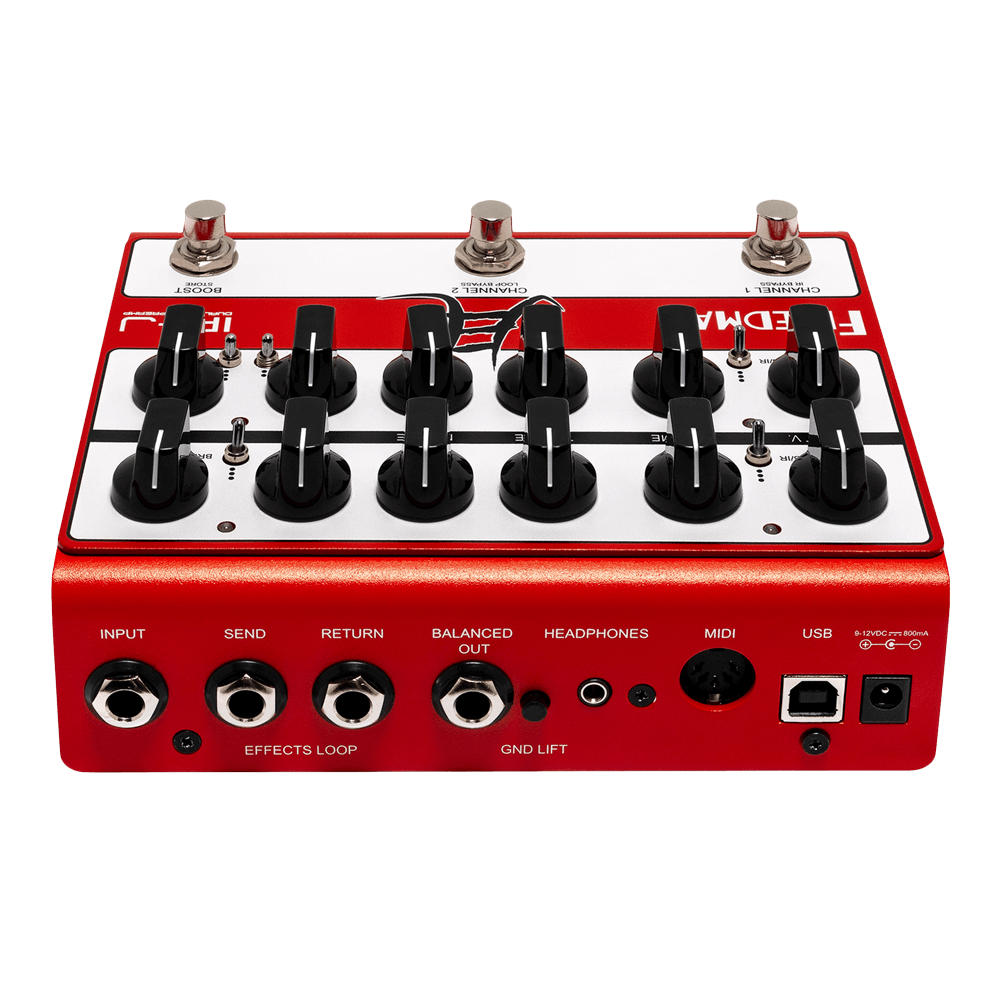

• Connections:

  • TRS balanced output

  • Headphone output

  • 5-pin MIDI, USB (for software control)

  • Transparent FX loop (bypassable)

• Dimensions: 6.5” (W) × 5.5” (D) × 2.3” (H)

• Weight: 1.5 lbs

• Includes: Universal 12V Power Supply, USB Cable

• Warranty: Limited 3-Year

The Friedman IR-J delivers the raw energy and vintage-meets-modern tonal mastery of Jake E. Lee’s signature sound — a perfect fusion of classic tube tone and modern flexibility, made for guitarists who demand the very best in tone, feel, and performance.
