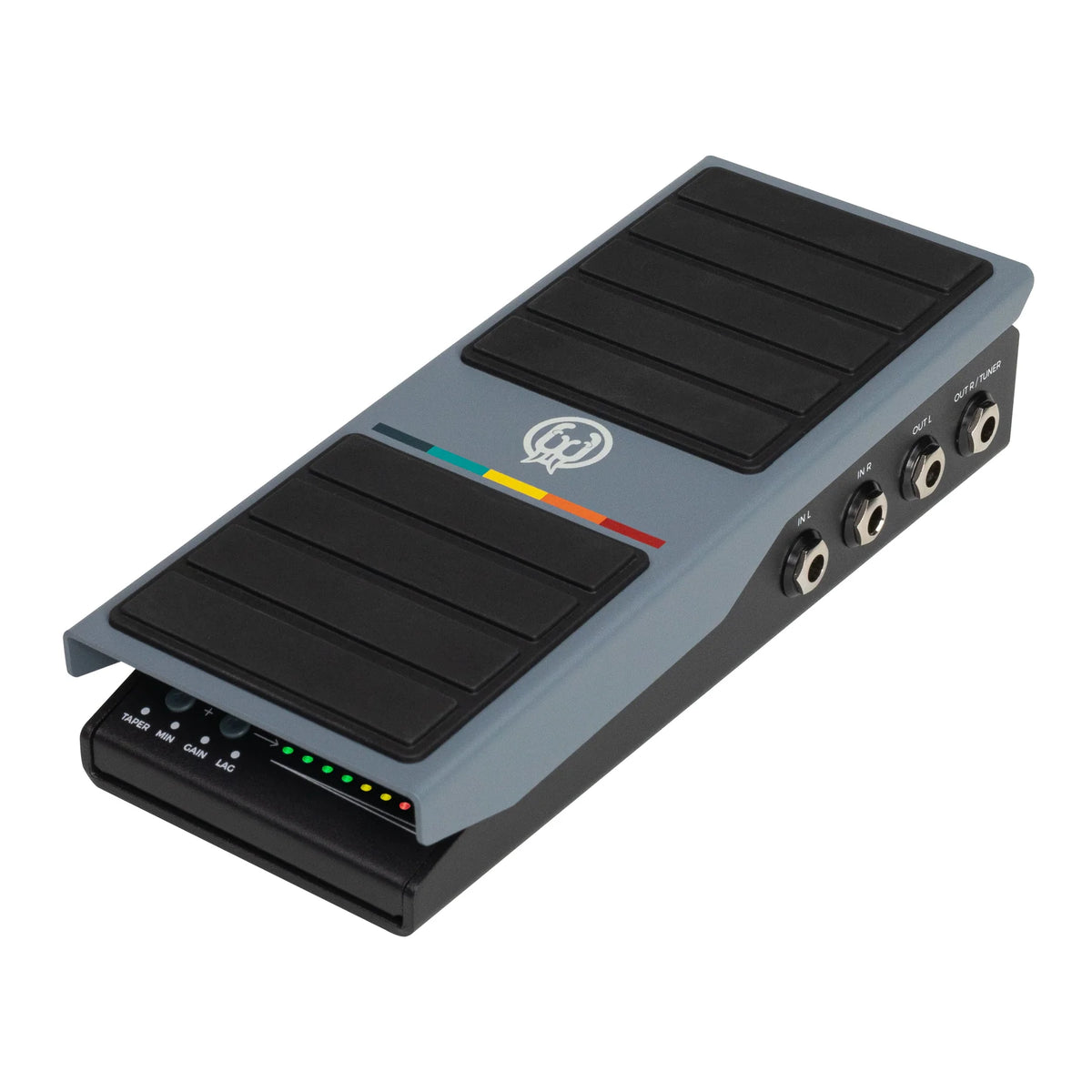

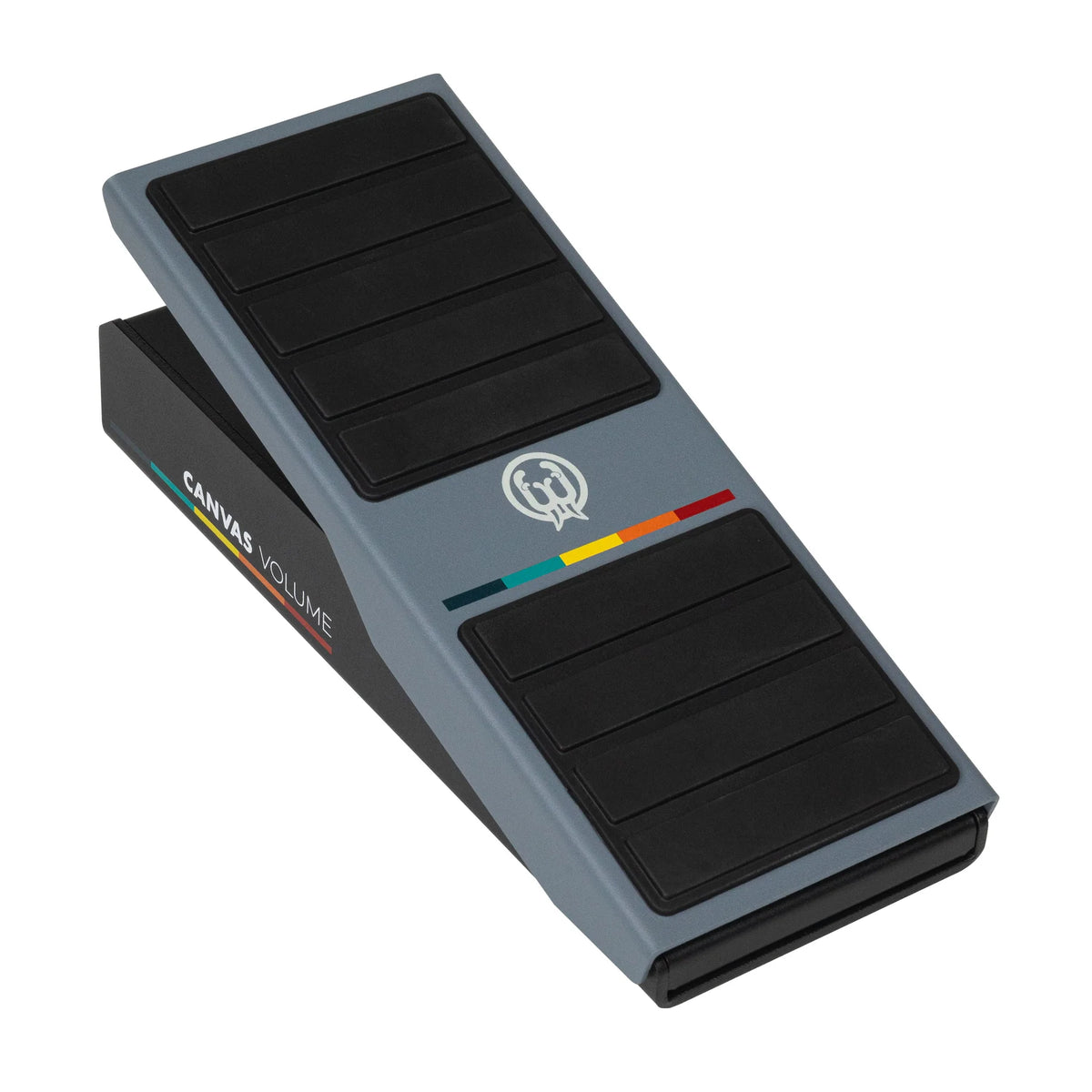

Walrus Audio Canvas Volume Pedal Grey

Product Description

The Walrus Audio Canvas Volume Pedal is a modern, highly configurable volume pedal built around a precision position sensor and high-quality analogue VCAs. Its fully analogue signal path delivers smooth volume control without the strings, potentiometers or gears found in traditional mechanical designs.

Canvas Volume can be tailored to different instruments and playing styles with eight selectable taper curves, including Walrus Audio’s custom Canvas taper and models based on several established volume pedal responses. Minimum-on volume, maximum gain and adjustable lag provide further control over how the pedal responds throughout its travel.

Flexible routing supports mono in/mono out with dedicated tuner out, stereo in/stereo out, or mono in/dual mono out, allowing Canvas Volume to integrate into simple guitar rigs, stereo pedalboards and more complex setups.

At toe-down, maximum output can be set from unity gain up to +9dB in 3dB increments, allowing the pedal to provide additional clean gain when required. The Lag function can introduce up to two seconds of delay between treadle movement and volume response, opening up smoother transitions and controlled volume swells.

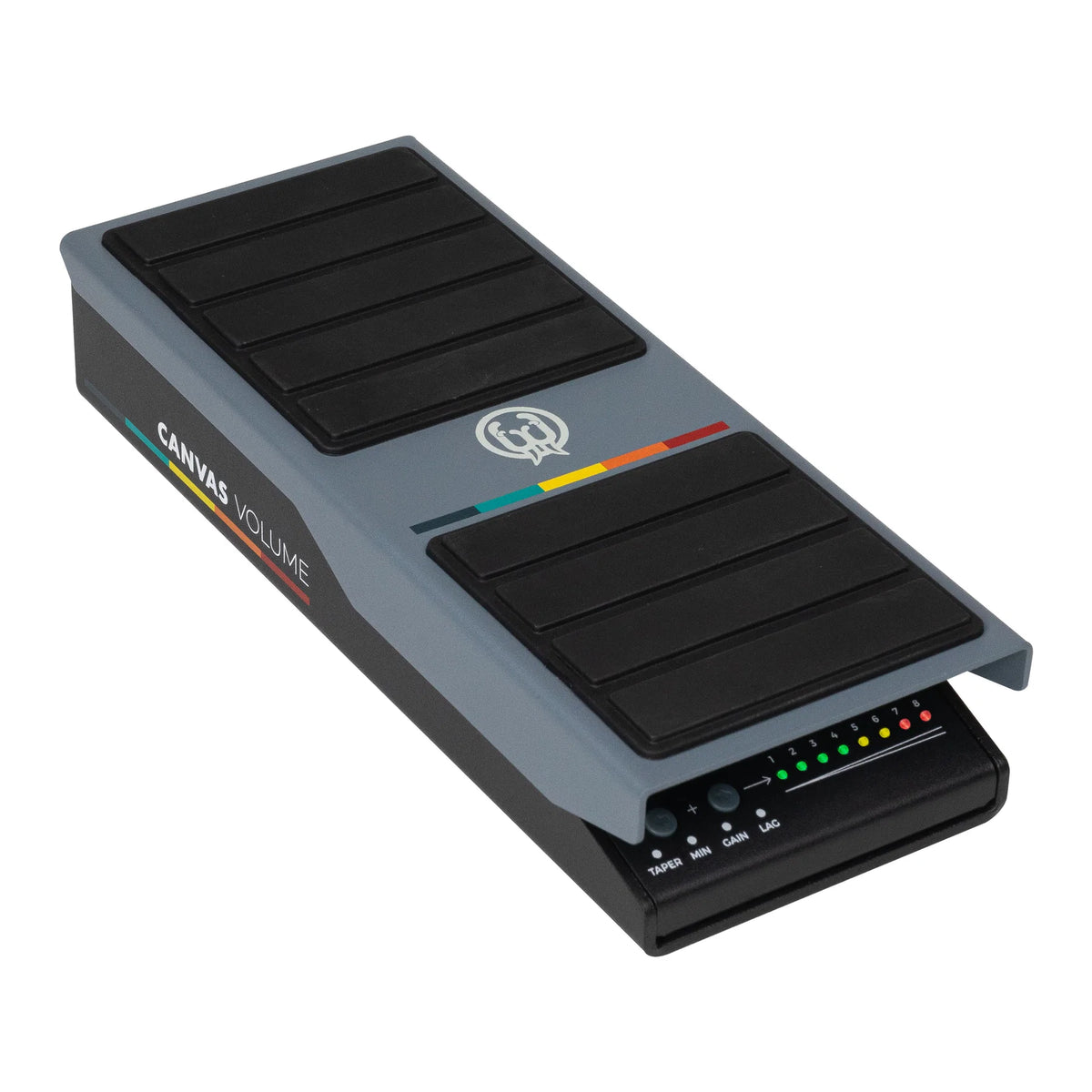

All configuration controls are discreetly positioned beneath the heel, while a built-in Utility Menu provides calibration, mono mode selection, factory reset and firmware update functions. A rugged steel and aluminium chassis and contactless position sensing provide a durable platform for stage and studio use.

Key Features

• Fully analogue signal path using high-quality VCAs
• Contactless precision position sensing
• No strings, potentiometers or gears
• Eight selectable volume taper curves
• Adjustable minimum heel-down volume
• Up to +9dB maximum gain
• Adjustable lag for smooth volume swells
• Mono, stereo and dual mono routing options
• Dedicated tuner output available in mono mode
• Under-heel configuration controls keep settings protected
• Built-in calibration and factory reset functions
• USB-C firmware update capability
• Rugged steel and aluminium chassis

Controls

• Taper
• Minimum On
• Gain
• Lag
• Two Under-Heel Configuration Buttons
• Utility Menu

Taper Options

• Taper 1 – Canvas Taper
• Taper 2 – Lehle Model
• Taper 3 – Boss Model
• Taper 4 – Dunlop Model
• Taper 5 – Ernie Ball VP Jr Model
• Taper 6 – Hotone Model
• Taper 7 – Hilton Model
• Taper 8 – Goodrich Model

Specifications

• Brand: Walrus Audio
• Model: Canvas Volume
• Signal Path: Fully Analog
• Volume Control: Analog VCA
• Position Sensing: Contactless Precision Sensor
• Taper Options: 8
• Minimum Attenuation: Approximately -90dB
• Maximum Gain: +9dB
• Gain Adjustment: 3dB Increments
• Maximum Lag: 2 Seconds
• Routing: Mono In / Mono Out with Tuner Out, Stereo In / Stereo Out, Mono In / Dual Mono Out
• Inputs: 2 × 1/4" Unbalanced TS
• Outputs: 2 × 1/4" Unbalanced TS
• Input Impedance: 1MΩ
• Output Impedance: 330Ω
• Frequency Response: 20Hz–20kHz
• USB: USB-C for Firmware Updates
• Power Requirement: Isolated 9V DC
• Polarity: Centre Negative
• Minimum Current: 300mA
• Height: 48mm
• Width: 91mm
• Depth: 225mm
• Weight: 2.2lb
