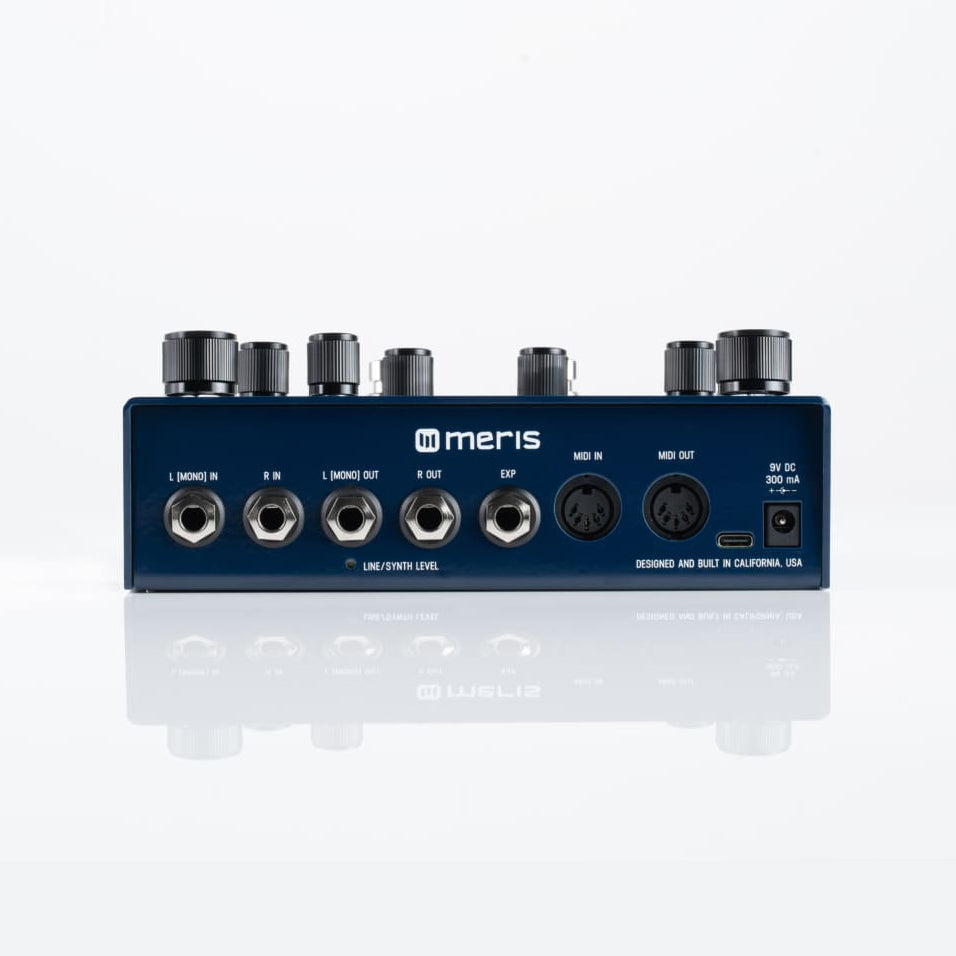

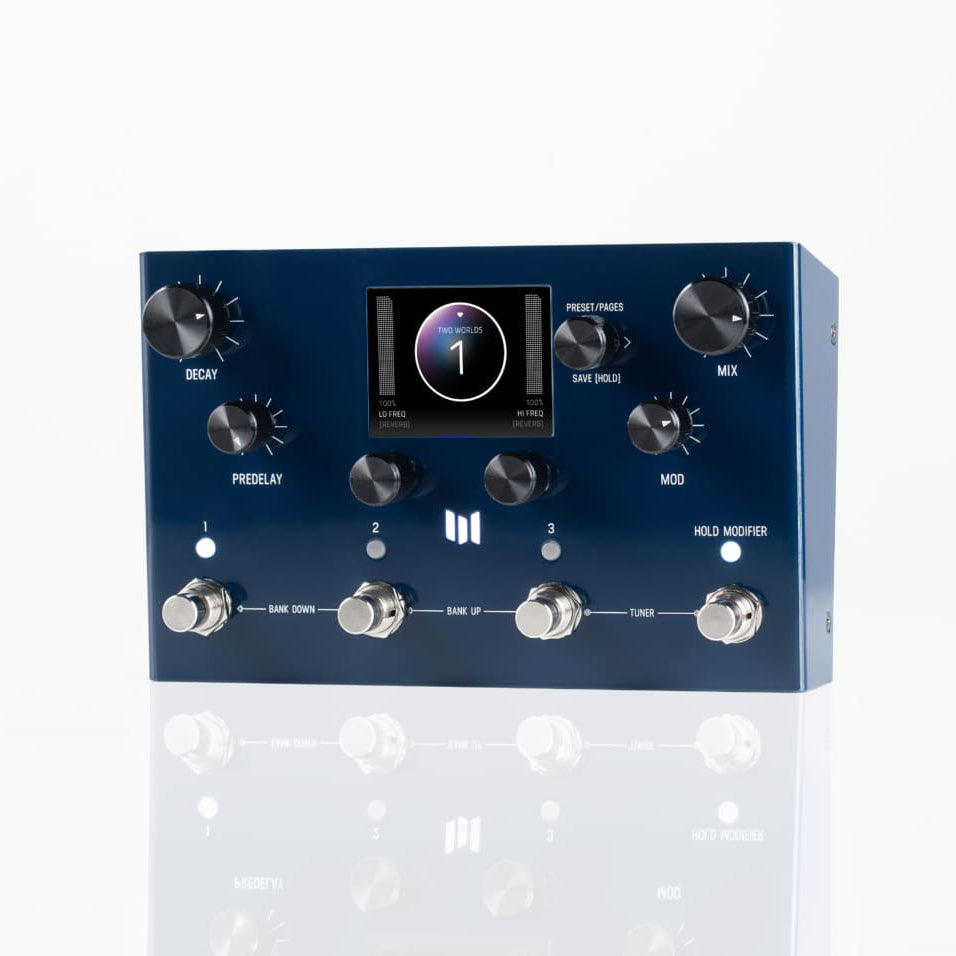

Meris MercuryX Modular Reverb System Pedal

Product Description

The Meris MercuryX is a flagship modular reverb system that combines studio-grade processing, advanced routing flexibility, and premium analog signal design in an exceptionally powerful pedal format. Expanding on the atmospheric legacy of the Mercury7, MercuryX delivers an expansive collection of deeply customisable reverbs ranging from cinematic ambient textures to classic studio spaces and experimental spatial processing.

At the core of MercuryX are eight custom Meris reverb algorithms including Ultraplate, Cathedra, 78 Room, 78 Plate, 78 Hall, Spring, Prism, and Gravity. Built around a modular architecture inspired by the award-winning LVX platform, the pedal allows extensive signal shaping through configurable processing elements, stereo routing, modulation, freeze functions, gating, and advanced control assignment.

Designed for professional stage and studio environments, MercuryX features ultra-high-quality DSP processing, stereo operation, MIDI integration, assignable expression control, and detailed preset management. The intuitive colour display provides streamlined access to deep sound design functionality while maintaining a highly performance-focused workflow.

From subtle vintage ambience to massive cinematic soundscapes and experimental textures, MercuryX offers exceptional depth, realism, and creative flexibility for guitarists, synthesists, producers, and sound designers.

Key Features

• Advanced modular stereo reverb system
• Eight custom Meris reverb algorithms
• Inspired by studio rack processors and cinematic ambient reverbs
• Modular signal routing and processing architecture
• Expanded stereo pre-delay with configurable feedback routing
• Independent stereo freeze functionality
• Integrated modulation, chorus, vibrato, tremolo, and lo-fi processing
• Deep modifier routing system for parameter control
• 99 preset locations across 33 banks
• Favourite preset bank for quick recall
• Stereo input and output operation
• MIDI input/output and expression pedal integration
• Premium analog signal path with high-end DSP processing
• Colour screen interface with streamlined workflow
• Designed and built in California, USA

Reverb Algorithms

• Ultraplate
• Cathedra
• 78 Room
• 78 Plate
• 78 Hall
• Spring
• Prism
• Gravity

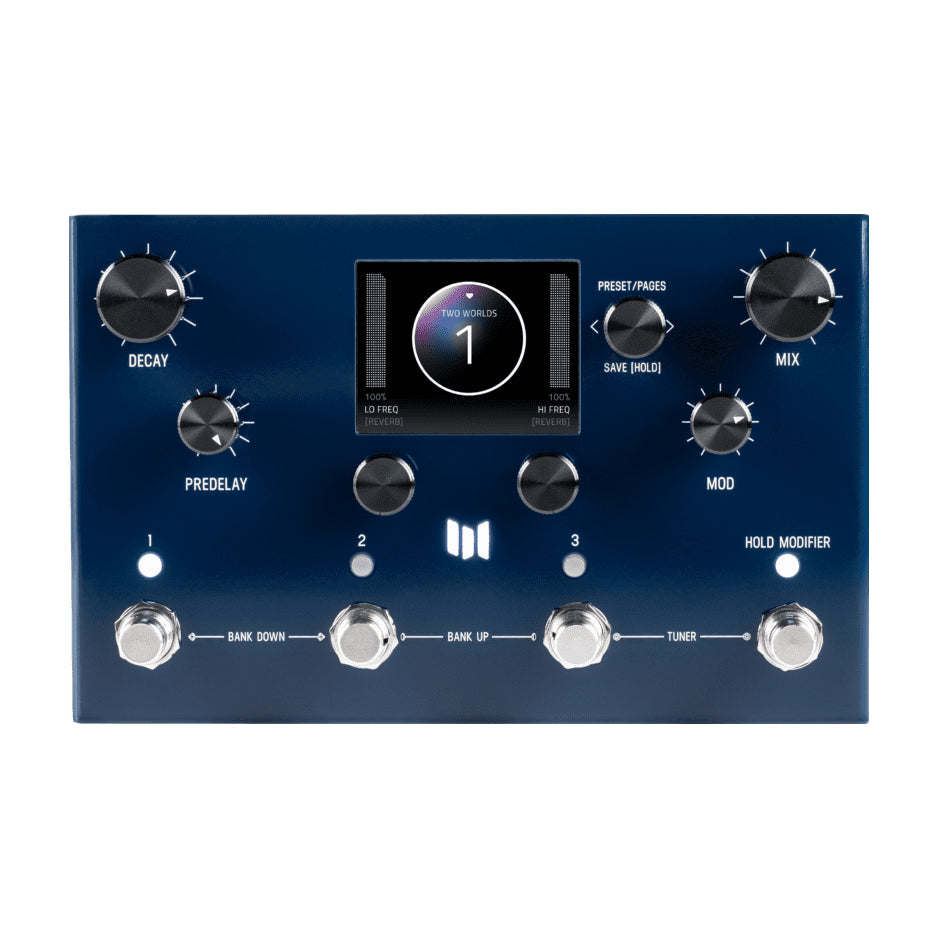

Controls

• Reverb structure selection
• Modular processing controls
• Modifier routing
• Stereo freeze
• Preset management
• MIDI functionality
• Expression assignment
• Hold modifier switch
• Tuner access

Specifications

• Conversion: 24-bit A/D and D/A
• DSP: 32-bit floating point
• Sample Rate: 48kHz
• Input Impedance: 1 Meg Ohm
• Signal-to-Noise Ratio: 115dB Typical
• Frequency Response: 20Hz–20kHz
• Max Input Level: +9 dBu (Instrument), +12.5 dBu (Line/Synth)
• Power Requirement: 9V DC centre-negative
• Current Draw: 300mA
• Bypass: Selectable True Bypass or Analog Buffered Bypass
• Dimensions: 7.25" x 4.5" x 2"
• Weight: 680g
• Finish: Deep Blue Gloss
