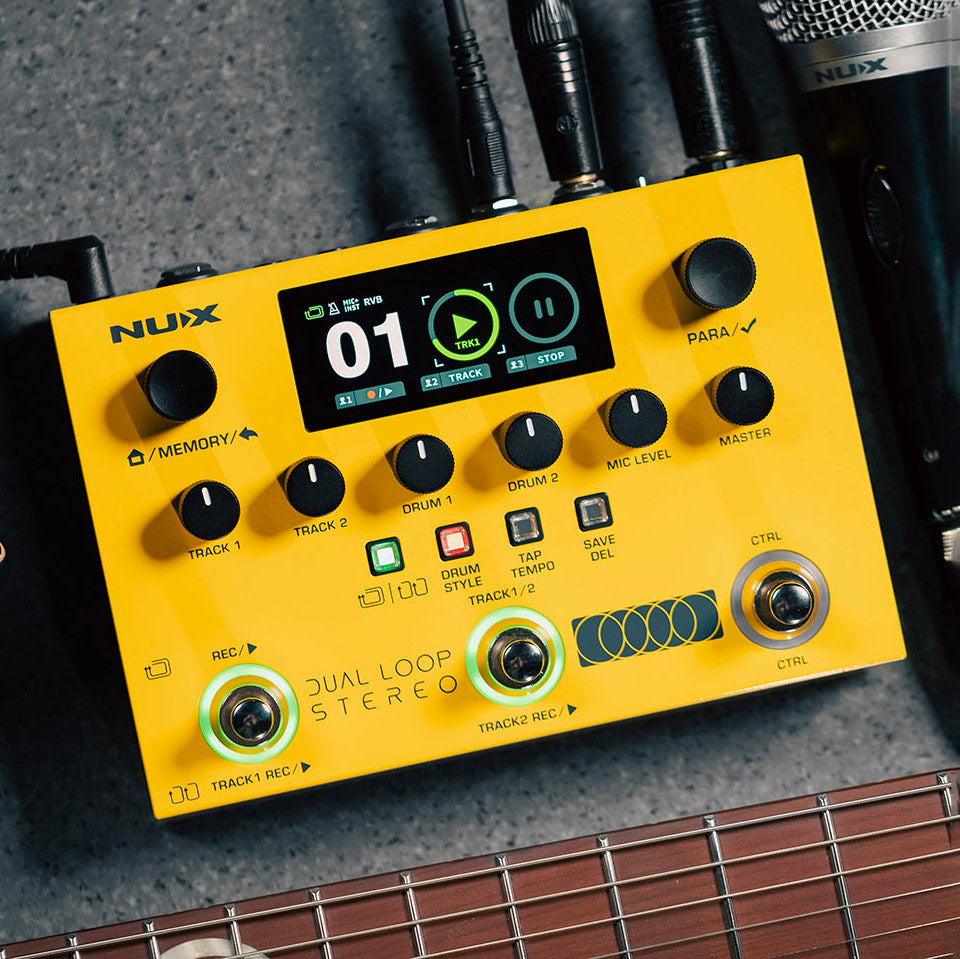

NUX Dual Loop Stereo Pedal with Drum Loops

Product Description

The NUX Dual Loop Stereo is a powerful dual-track looper designed for guitarists, singer-songwriters and musicians who want to build complete arrangements for practice, songwriting and live performance. With two independent loop tracks, an integrated dual drum machine and three flexible looping modes, it provides everything from straightforward looping to structured A/B song arrangements.

Three operating modes adapt the pedal to different workflows. A/B Split lets you create separate A and B song sections with their own loops and drums, while A+B Sync combines two loop tracks with the drum machine for layered instruments or vocals. Gig Mode removes the drum machine and provides two independent loops for streamlined live performance.

High-quality 32-bit AD/DA conversion and 32-bit floating-point processing maintain clarity through multiple overdubs. Each track provides up to 90 minutes of stereo recording, with approximately 26 hours of total stereo recording capacity across 99 memories.

The onboard rhythm section offers 42 rhythm groups and 672 patterns, while four built-in recording effects provide Octave, Booster, Cabinet Simulation and Reverb. A 2.86" high-resolution colour LCD and dedicated level controls make navigating complex arrangements straightforward.

Extensive connectivity includes stereo instrument inputs and outputs, an XLR microphone input with 48V phantom power, headphones, AUX input, MIDI In/Out and expression control. USB-C supports audio streaming as well as importing and exporting compatible WAV files, making the Dual Loop Stereo equally capable on stage, in the studio or as a creative practice tool.

Key Features

• Two independent stereo loop tracks
• Up to 90 minutes recording per track
• Approximately 26 hours total stereo recording
• 99 phrase memories
• A/B Split, A+B Sync and Gig looping modes
• 32-bit AD/DA conversion
• 32-bit floating-point processing
• 42 rhythm groups with 672 patterns

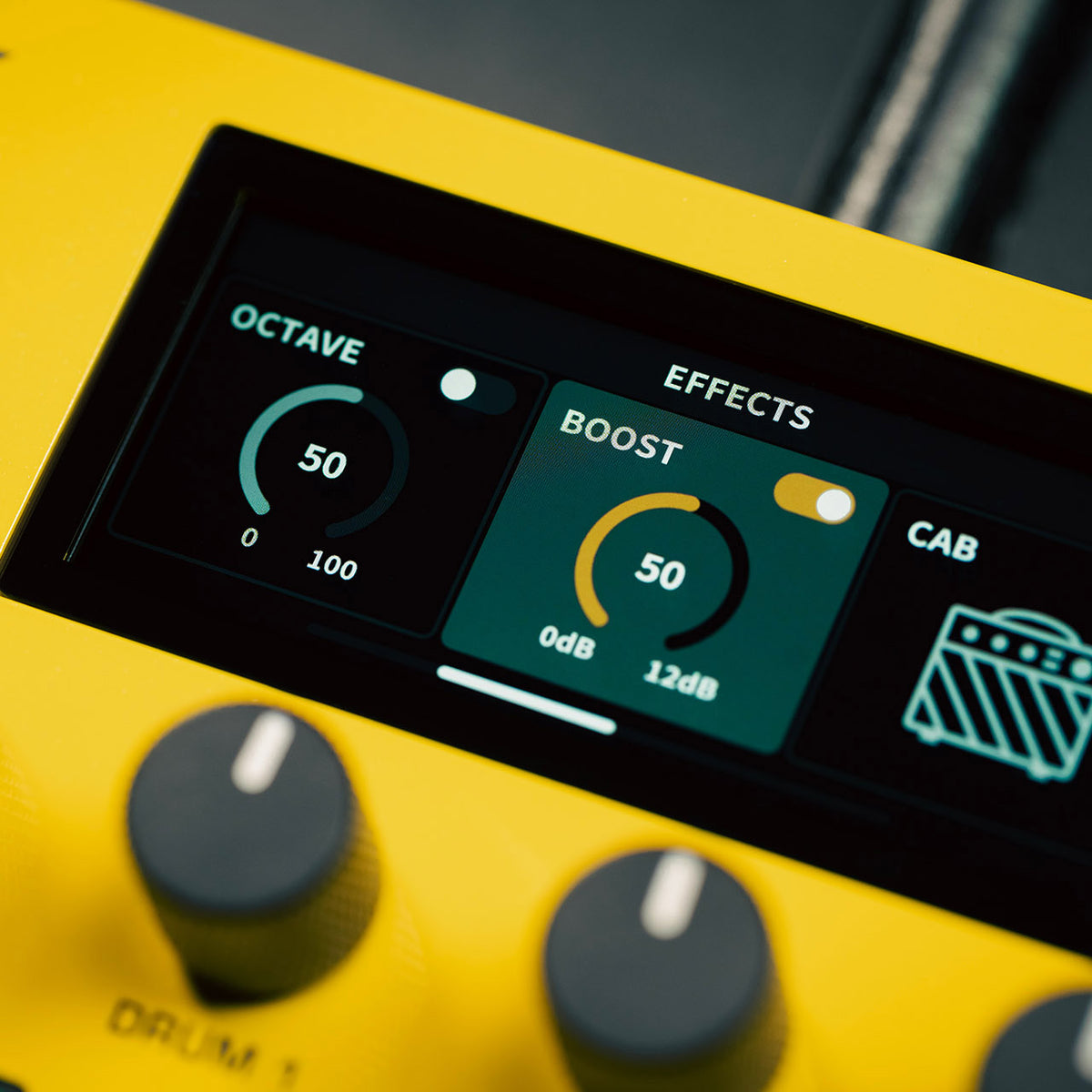

• Octave, Booster, Cabinet Simulation and Reverb effects
• 2.86" high-resolution colour LCD
• Dedicated controls for tracks, drums, microphone and master volume
• XLR microphone input with 48V phantom power
• Stereo instrument inputs and outputs
• MIDI In and Out
• Expression pedal control
• USB audio streaming
• WAV file import and export
• NUX NMP-2 EXP footswitch included

Specifications

• Brand: NUX
• Model: Dual Loop Stereo
• Sampling Frequency: 44.1kHz
• AD/DA Conversion: 32-Bit
• Processing: 32-Bit Floating Point
• Number of Tracks: 2
• Recording Format: WAV, 44.1kHz, 32-Bit Float Stereo
• Maximum Recording Time: Approx. 90 Minutes Per Track
• Total Recording Time: Approx. 26 Hours
• Memories: 99
• Rhythm Groups: 42
• Rhythm Patterns: 672
• Effects: Octave, Booster, Amp Simulation, Reverb
• Bypass: Buffered
• Display: 2.86" Colour LCD, 960 × 376 Pixels
• Mic Maximum Input Level: +6dBu with Minimum Mic Gain
• Input 1/2 Maximum Level: +8dBu
• AUX Input Maximum Level: +8dBu
• Mic Gain Range: 5.4–63dB
• Mic Input Impedance: 2.4kΩ
• Input 1/2 Impedance: 1MΩ
• AUX Input Impedance: 1MΩ
• Output L/R Impedance: 1kΩ
• Headphone Output Impedance: 3.3Ω

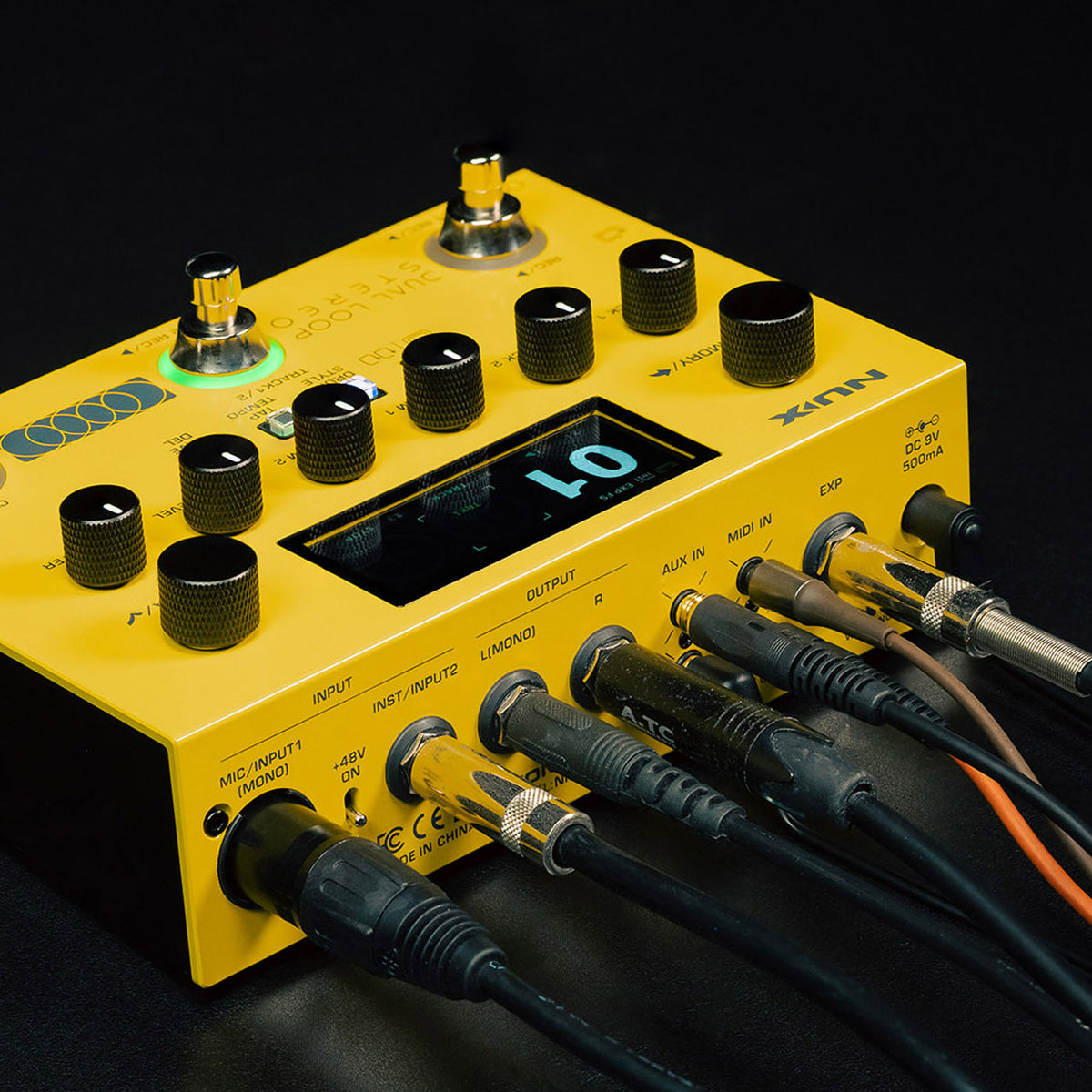

• Mic/Input 1: Combined XLR/1/4" Balanced Input with 48V Phantom Power
• Instrument/Input 2: 1/4"
• Outputs: 1/4" Left/Mono and Right
• AUX Input: 1/8" Stereo
• Headphone Output: 1/8" Stereo
• MIDI In/Out: 1/8" Stereo
• Expression Input: 1/4" TRS
• USB: USB-C
• Power Supply: ACD-006, 9V 500mA
• Current Draw: Less Than 170mA with Phantom Power Off
• Current Draw: Less Than 270mA with Phantom Power On
• Dimensions: 183 × 130 × 65.3mm
• Weight: 765g
