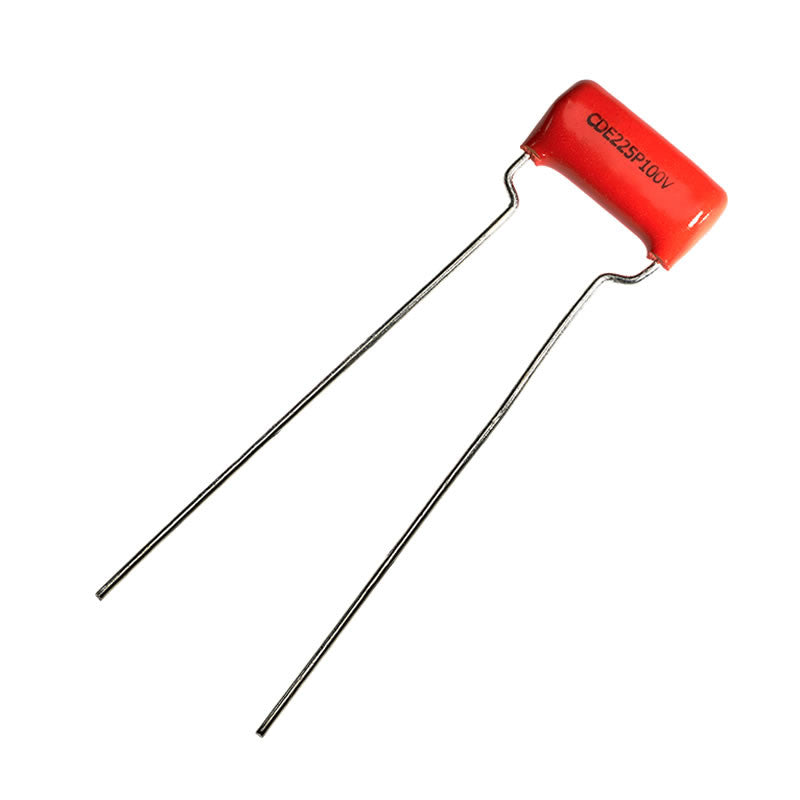

DiMarzio EP1022OD Orange Drop Audio Grade Polyester Film Capacitor .022uF

For players chasing that smooth, expressive tone from their instrument’s tone controls, DiMarzio’s Orange Drop capacitors are a trusted upgrade. These genuine Cornell Dubilier components are crafted from audio-grade polyester film and chosen by DiMarzio for their clarity, musicality, and tonal transparency.

Used in countless guitar and bass tone circuits, Orange Drop capacitors are known for their reliability and subtle sonic character. The 0.022 μF value is ideal for use with humbuckers or warmer single coils, shaping treble roll-off without muddying your tone.

Built with conformant flame-retardant epoxy casing and radial 20AWG leads, these caps are made to last—whether in vintage restorations or high-performance modern builds.

Highlights

• Genuine Cornell Dubilier Orange Drop capacitor

• Selected by DiMarzio for tone circuit excellence

• 0.022 μF value – ideal for humbuckers and full-bodied single coils

• Smooth, transparent tone ideal for treble roll-off

• Excellent stability and performance in guitar and bass circuits

Specifications

• Capacitance: 0.022 μF

• Voltage Rating: 100V

• Tolerance: ±10%

• Dielectric: Polyester Film

• Casing: Flame-retardant orange epoxy

• Lead Style: Radial

• Lead Diameter: 20AWG

• Temperature Range: -55°C to +85°C
