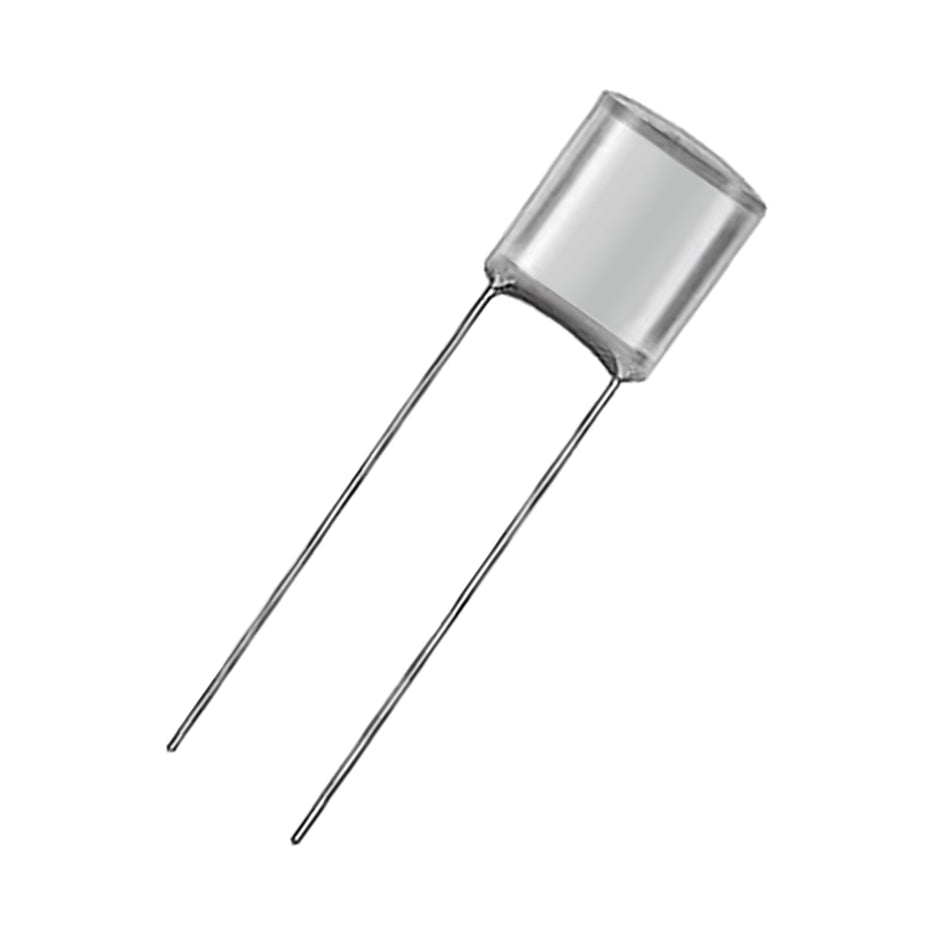

DiMarzio EP1022 Polyester Film Capacitor .022uF

Product Description

The DiMarzio EP1022 Polyester Film Capacitor is a compact, high-quality .022µF tone capacitor designed for installation in electric guitar and bass control cavities. Its small footprint makes it easy to incorporate into a wide variety of wiring setups where space can be limited.

Constructed using dielectric polyester film combined with aluminium foil, the EP1022 is protected by an epoxy resin coating that provides excellent resistance to humidity while helping extend the capacitor's lifespan.

With a ±10% tolerance and 50V rating, each DiMarzio capacitor is individually tested to ensure it meets the company's quality standards. The .022µF value makes the EP1022 a practical choice for guitar and bass tone-control wiring, whether you're replacing an existing capacitor or completing a new electronics installation.

• Brand: DiMarzio
• Model: EP1022
• Product Type: Polyester Film Capacitor
• Capacitance: .022µF
• Casing: Epoxy Resin
• Dielectric: Polyester Film
• Temperature Rating: -40°C to +85°C
• Lead Diameter: 20AWG
• Termination Style: Radial
• Tolerance: ±10%
• Voltage Rating: 50V
