Walrus Audio Canvas: Power 22 AUS

Canvas Power Supplies bring simplicity and modularity to powering your pedalboard, delivering silent, isolated, clean power built for modern rigs. Using a modern switch-mode supply architecture, each output is fully isolated, highly efficient, and heavily filtered—helping keep noise low while supplying plenty of current for power-hungry pedals.

The super-slim design is made to fit under almost any pedalboard, and the included universal mounting brackets keep everything secure during transport. You also get an onboard LED power meter so you can see remaining power headroom at a glance, plus individual LED indicators on every output to confirm power is being delivered.

Canvas Power is also designed to grow with your rig. Each model can be purchased as a standalone power supply, or as a linkable unit using 24V power link, allowing you to expand without needing another wall outlet connection.

Canvas Power 22 Details

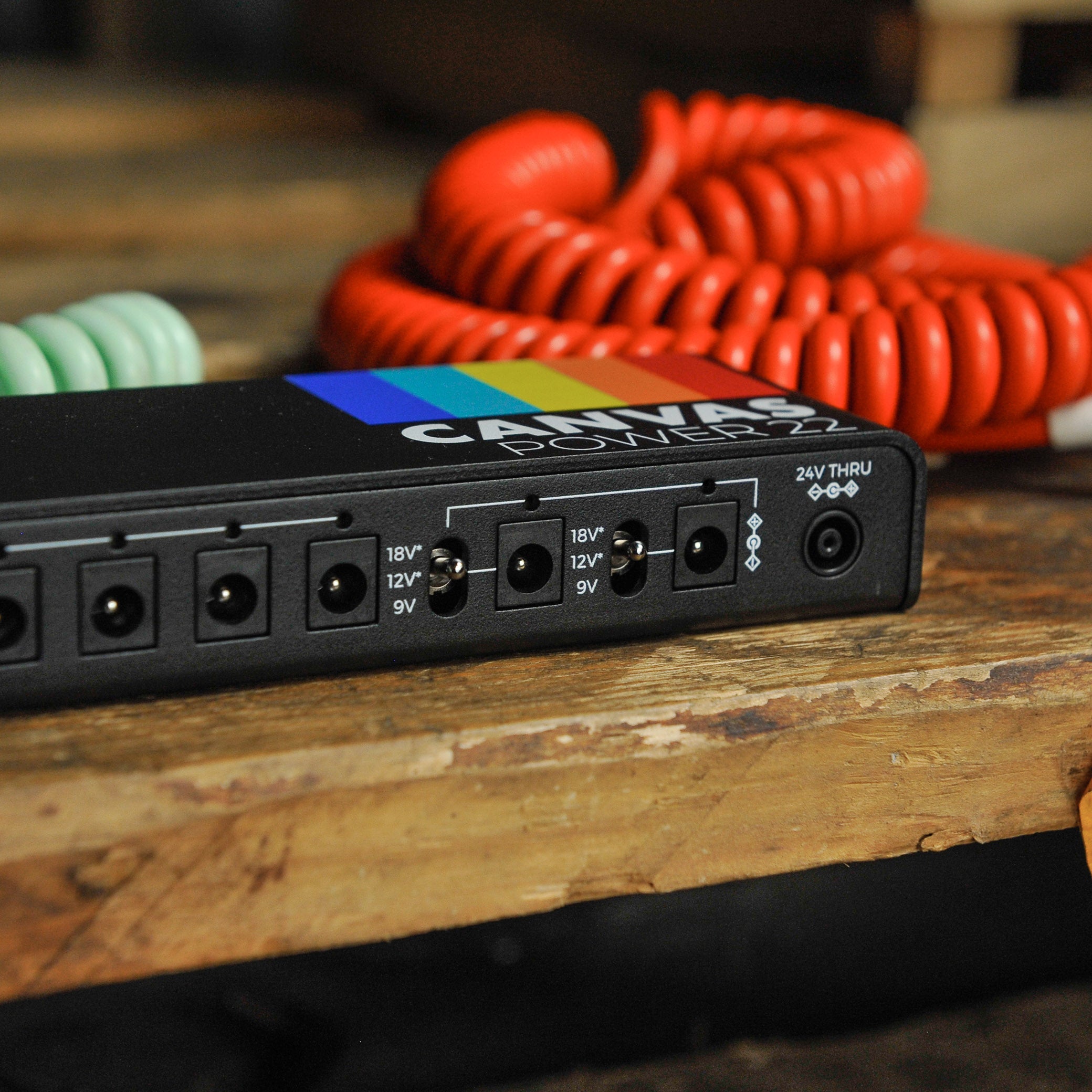

The Canvas Power 22 features 22 isolated outputs, each delivering up to 500mA at 9V. Two outputs are variable voltage, switchable between 9V / 12V / 18V for pedals that want higher voltage headroom. It also includes a USB-C port for powering devices like your phone or tablet while you play.

Highlights

• 22 isolated outputs with up to 500mA per output

• Clean, quiet power via efficient, heavily filtered switch-mode design

• 2 variable-voltage outputs: 9V / 12V / 18V

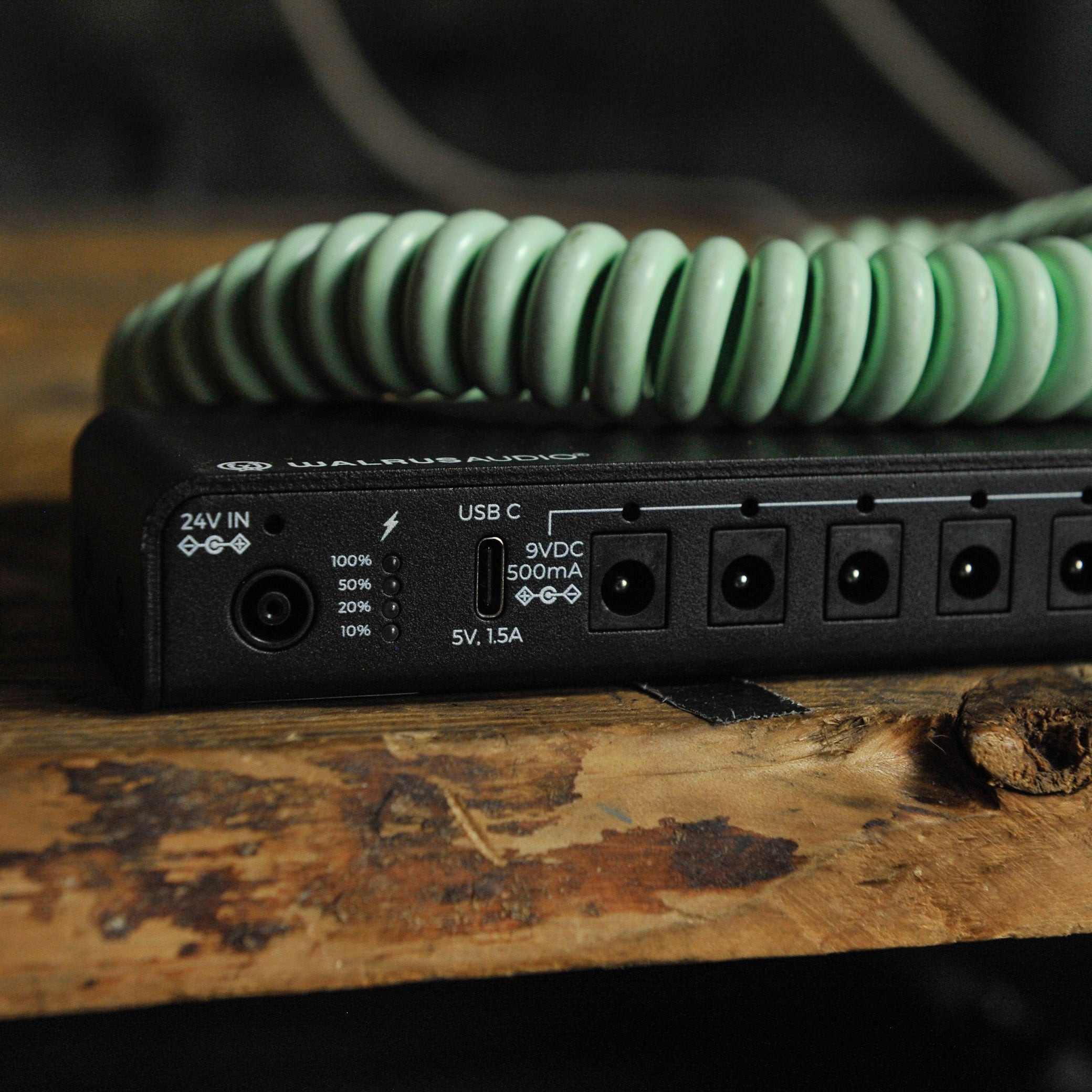

• USB-C port for powering external devices

• 24V linkable modular system for expanding your power setup

• Ultra-slim form factor to fit under most boards

• Universal mounting brackets included

• LED power meter + individual output status LEDs

• Compatible with standard 2.1mm barrel cables (and supports compact low-profile cable options)

What’s in the Box

If you purchase Canvas Power 22 Power Supply

• 1 x Canvas Power Supply

• 18” straight-to-right-angle DC cables – Qty 7

• 36” straight-to-right-angle DC cables – Qty 15

• 96W, 24V DC 4A power brick + country-specific IEC cable

• L-style mounting bracket set

If you purchase Canvas Power 22 Link

• 1 x Canvas Power Supply

• 18” straight-to-right-angle DC cables – Qty 7

• 36” straight-to-right-angle DC cables – Qty 15

• 12” EIAJ link cable

• L-style mounting bracket set

Note: To purchase a Canvas Power 22 Link, select the Link option under Power Supply Type and choose the 24V Link Cable option under Power Source before adding to cart.
