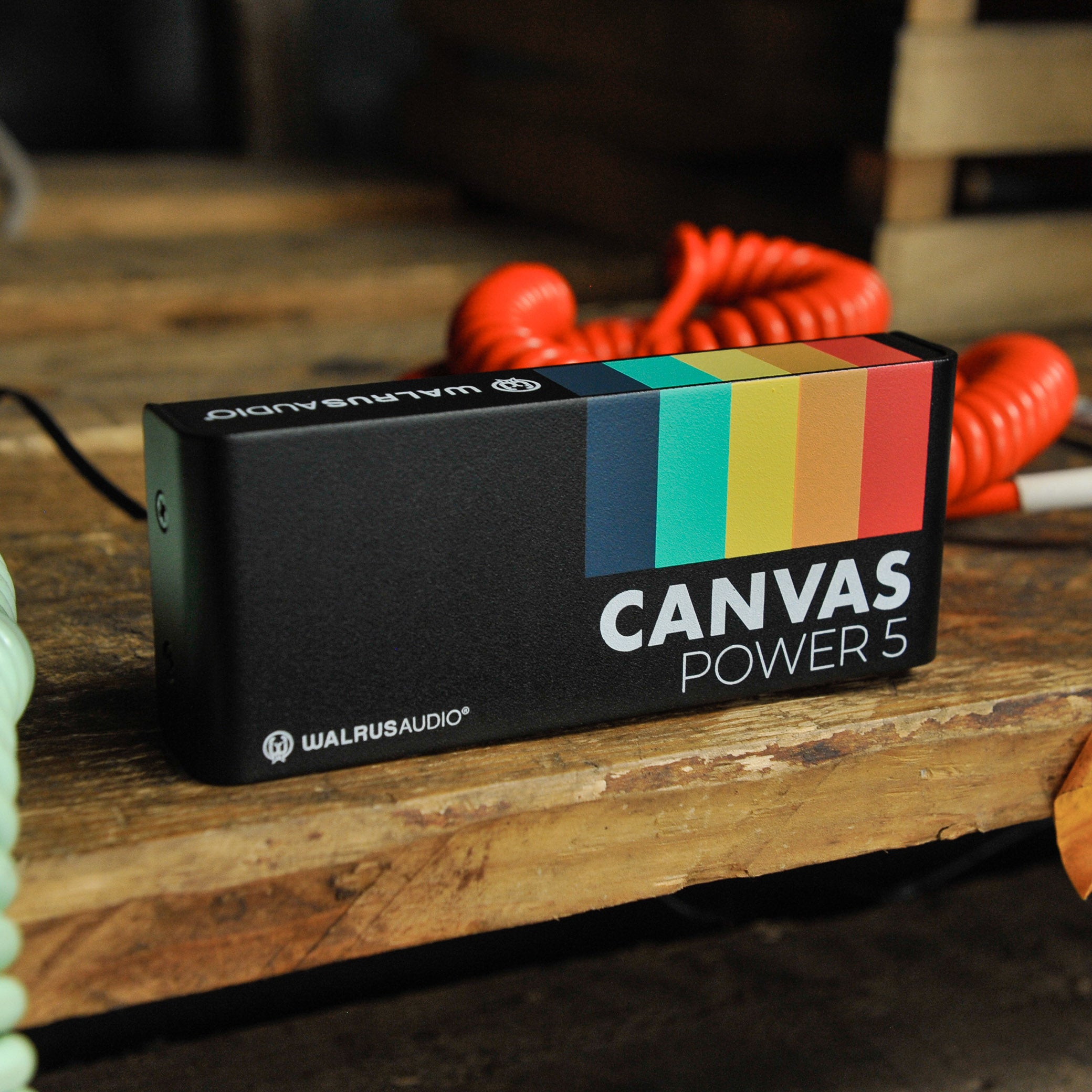

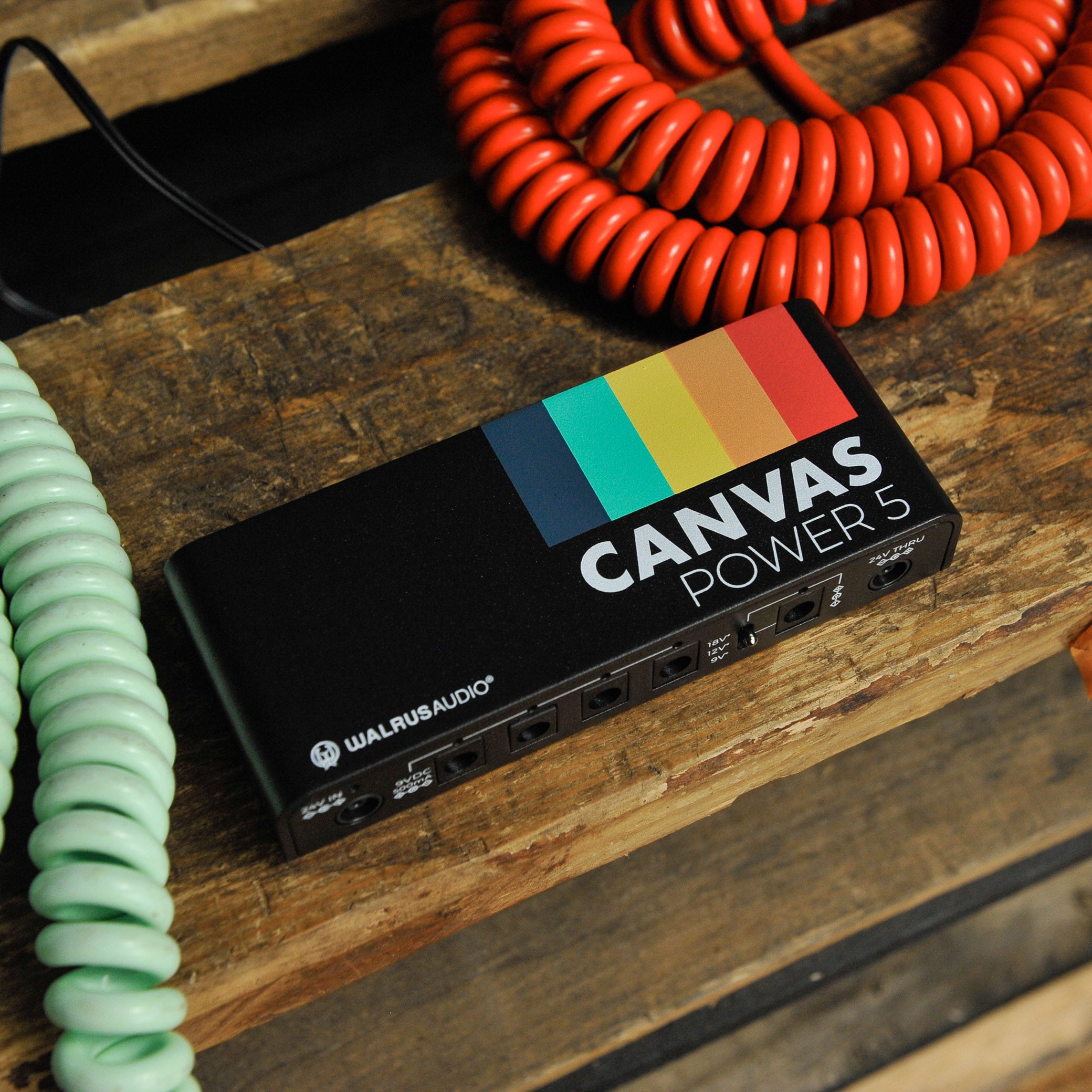

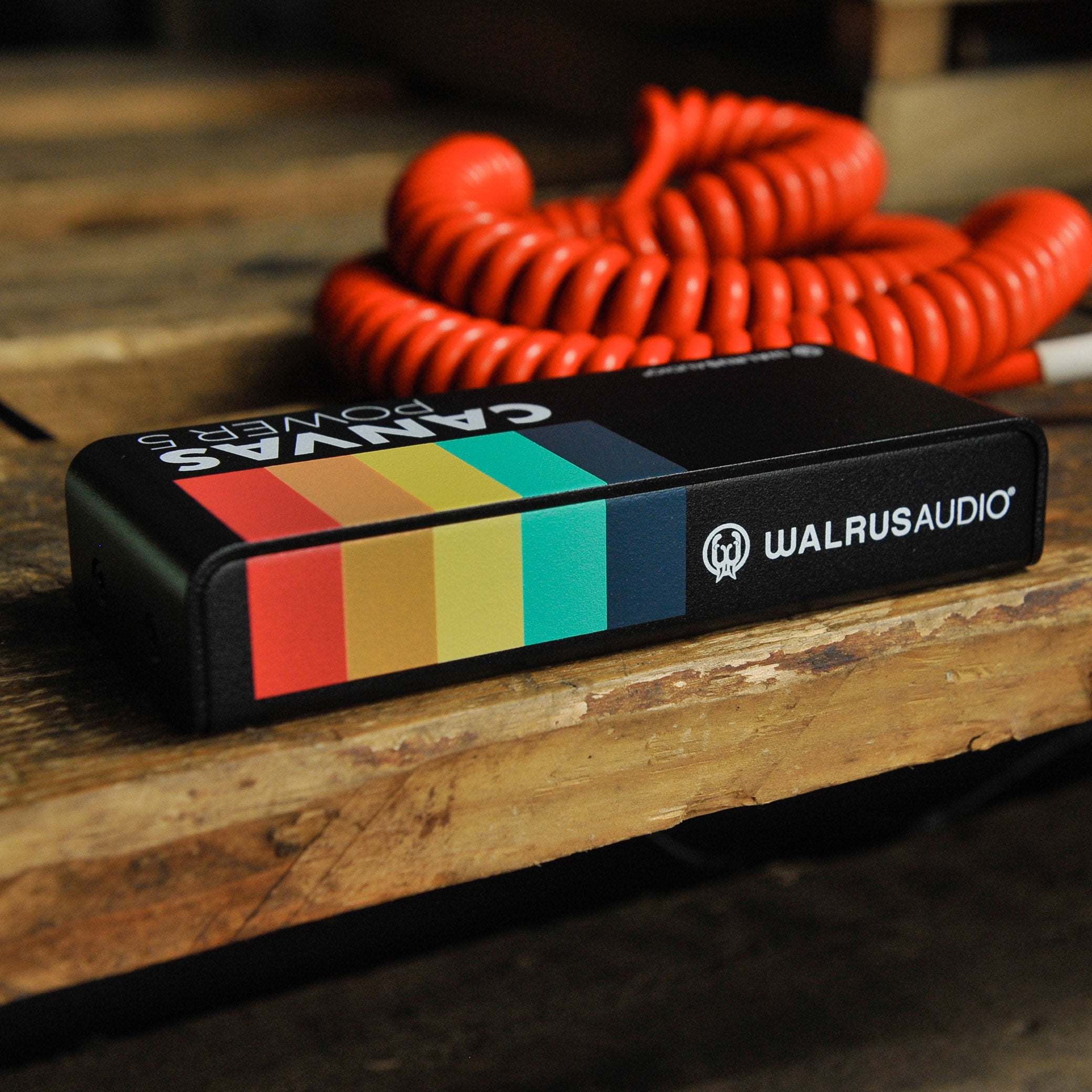

Walrus Audio Canvas: Power 5 AUS

Canvas Power Supplies bring simplicity and modularity to powering your pedalboard, delivering silent, isolated, clean power built for modern rigs. Using a modern switch-mode supply architecture, each output is fully isolated, highly efficient, and heavily filtered—helping keep noise extremely low while supplying plenty of current for today’s pedals.

Each model is available as a standalone supply or as a 24V linkable unit, allowing Canvas Power to grow with your rig without needing an additional wall outlet connection. The super-slim design fits under nearly any pedalboard, and the included mounting brackets keep everything secure while gigging and travelling.

An onboard LED power meter shows remaining power headroom at a glance, while individual LED indicators on each output confirm power is being delivered. It also accepts standard 2.1mm barrel cables while remaining optimised for compact, right-angle cabling in tight spaces.

Canvas Power 5 Details

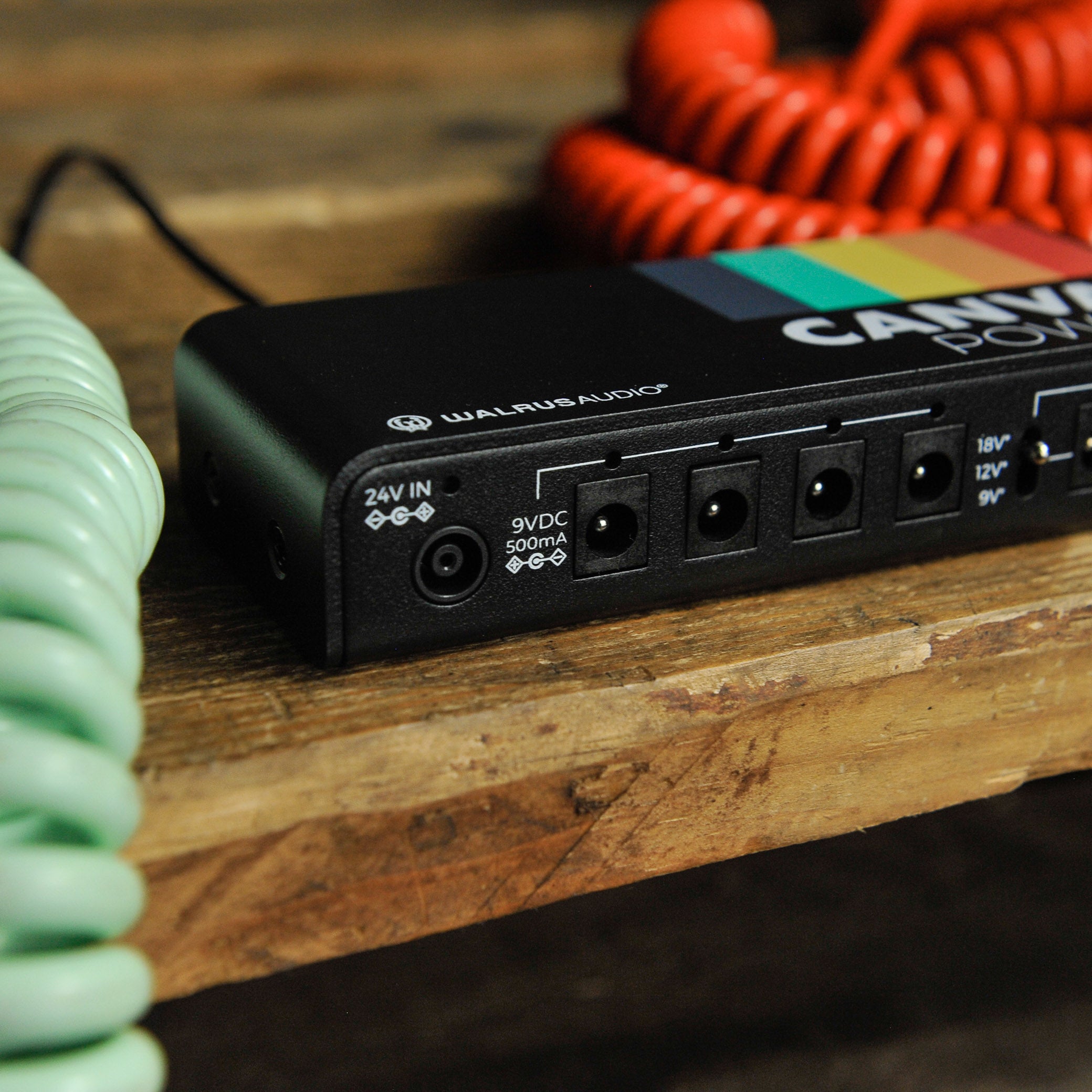

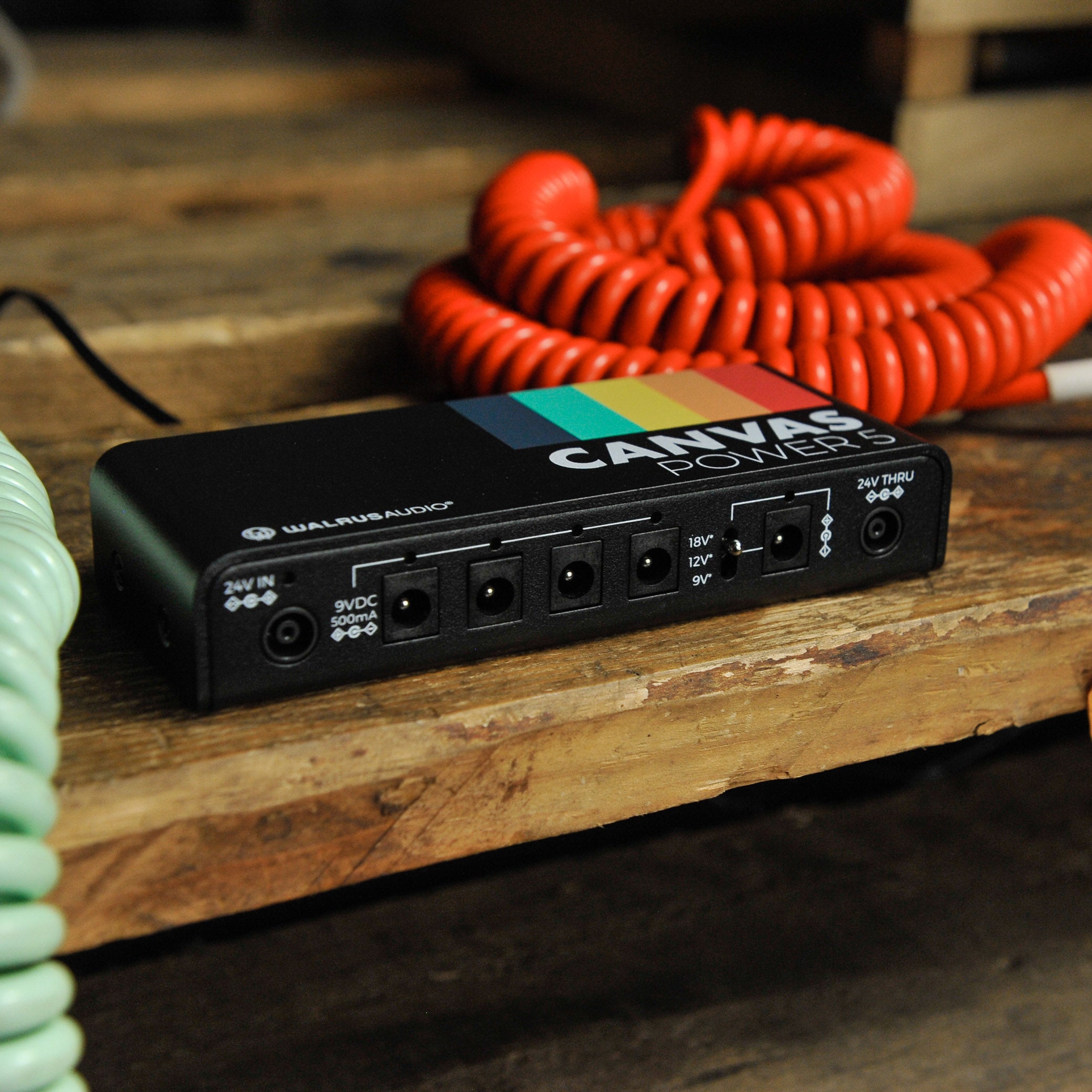

The Canvas Power 5 features 5 isolated outputs, each delivering up to 500mA at 9V. One output is variable voltage, switchable between 9V / 12V / 18V for high-voltage pedals and added headroom.

Note: To purchase a Canvas Power 5 Link, select the Link option under Power Supply Type and choose the 24V Link Cable option under Power Source before adding to cart.

Highlights

• 5 isolated outputs with up to 500mA per output

• Quiet, heavily filtered switch-mode design for low-noise power

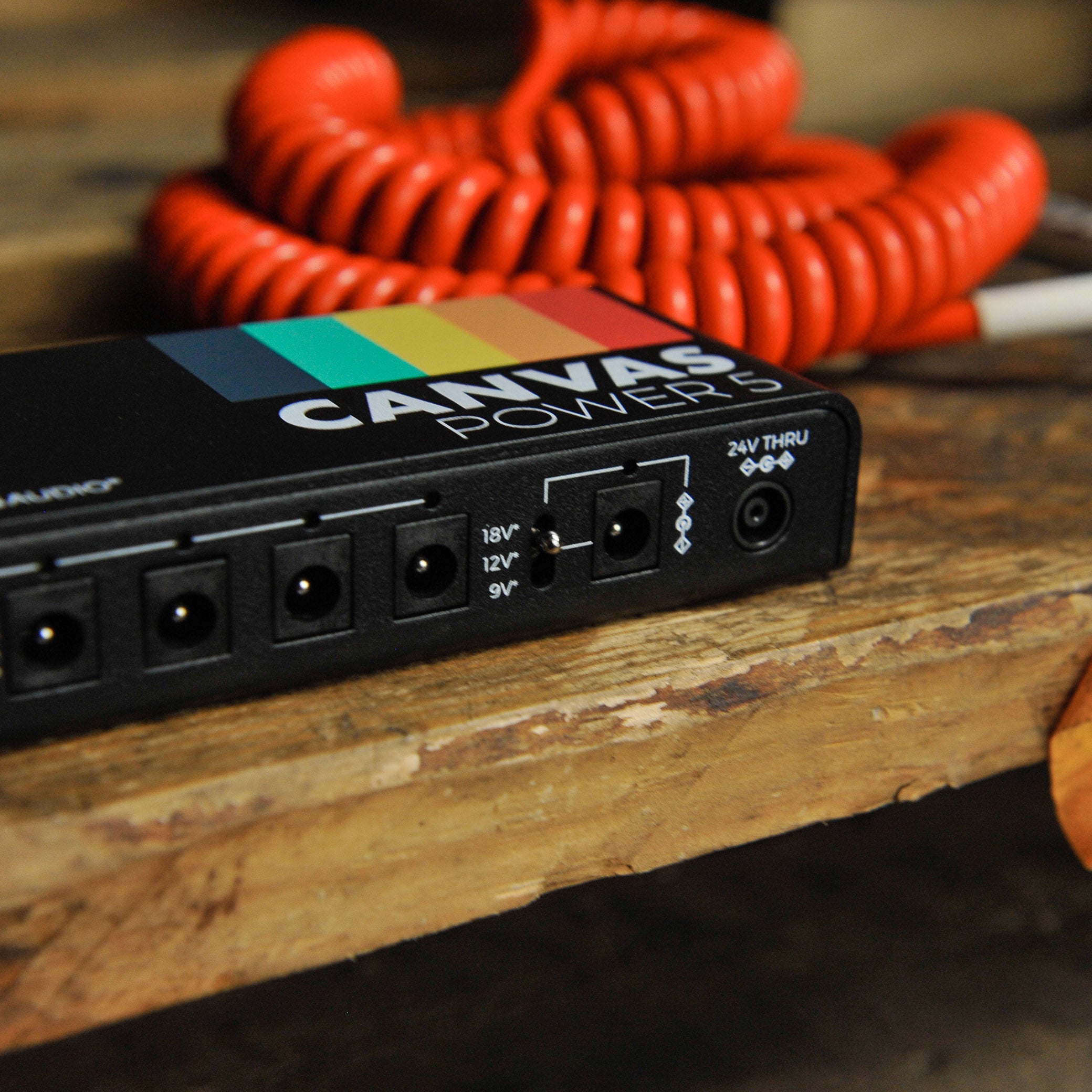

• 1 variable-voltage output: 9V / 12V / 18V

• Super-slim design for under-board mounting

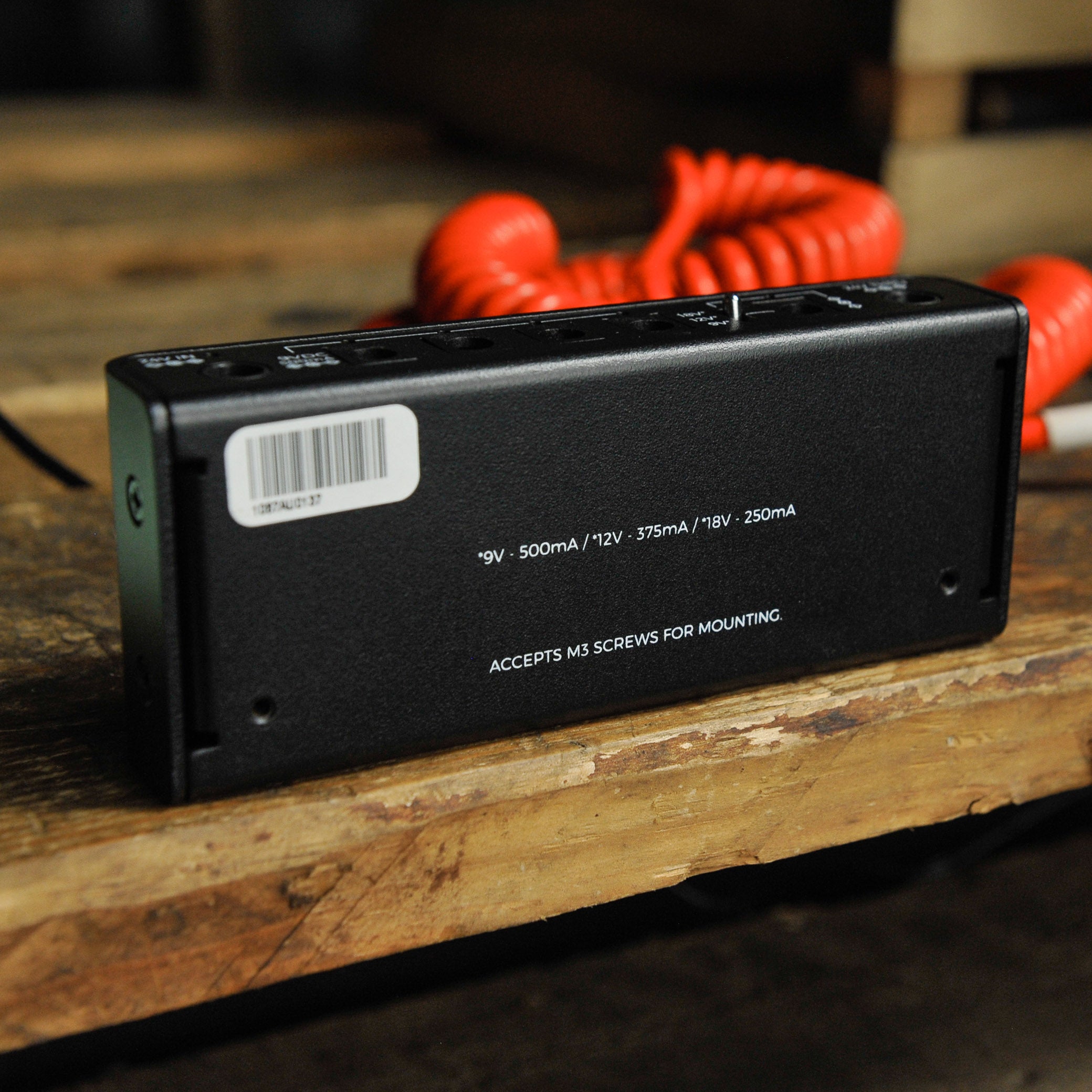

• Universal mounting brackets included

• LED power meter + individual output status LEDs

• 24V linkable modular expansion option

• Accepts standard 2.1mm barrel cables

What’s in the Box (Canvas Power 5 Power Supply)

• 1 x Canvas Power Supply

• 18” straight-to-right-angle DC cables – Qty 5

• 48W, 24V DC 2A power brick + country-specific IEC cable

• C-style mounting bracket set

• M3 Hex Key
