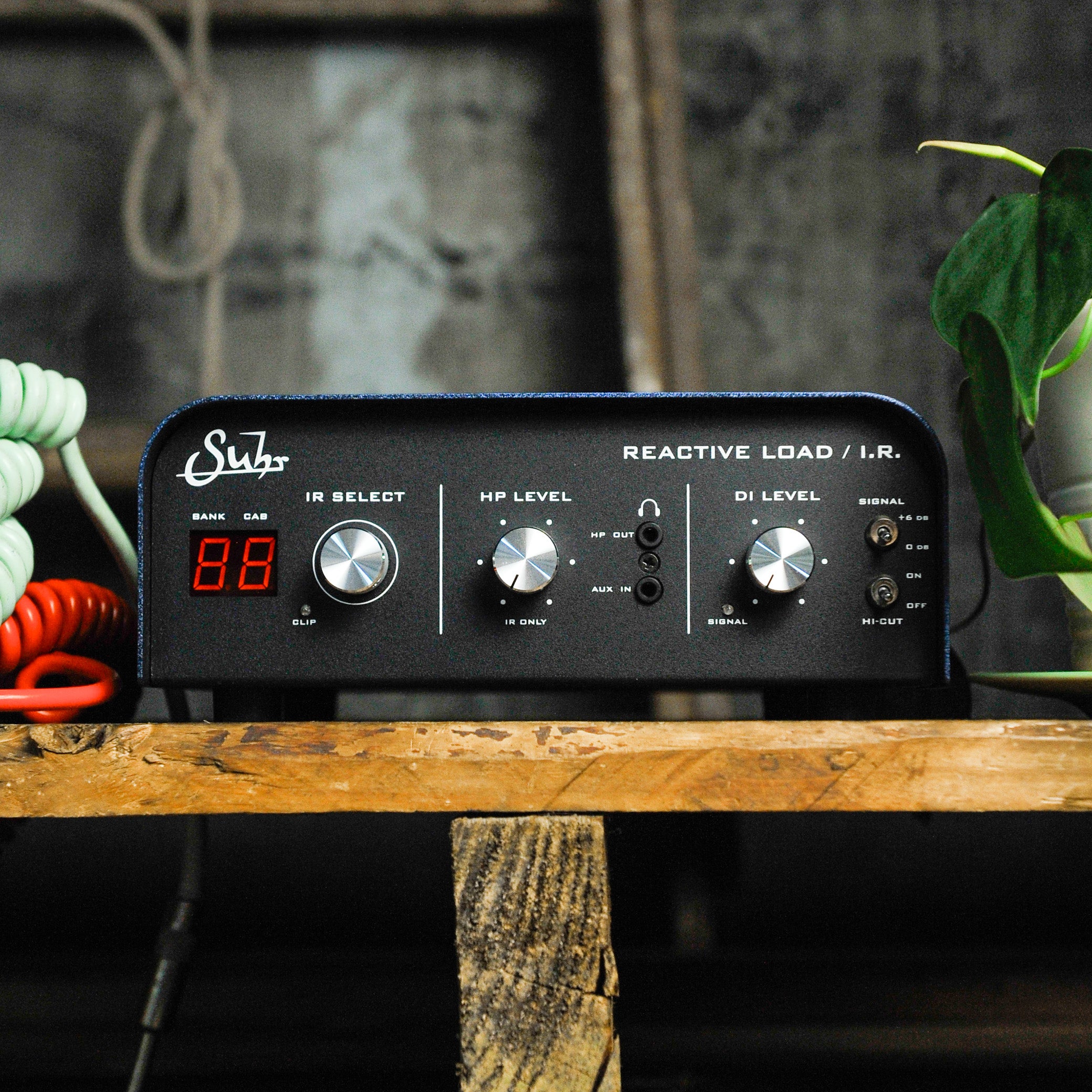

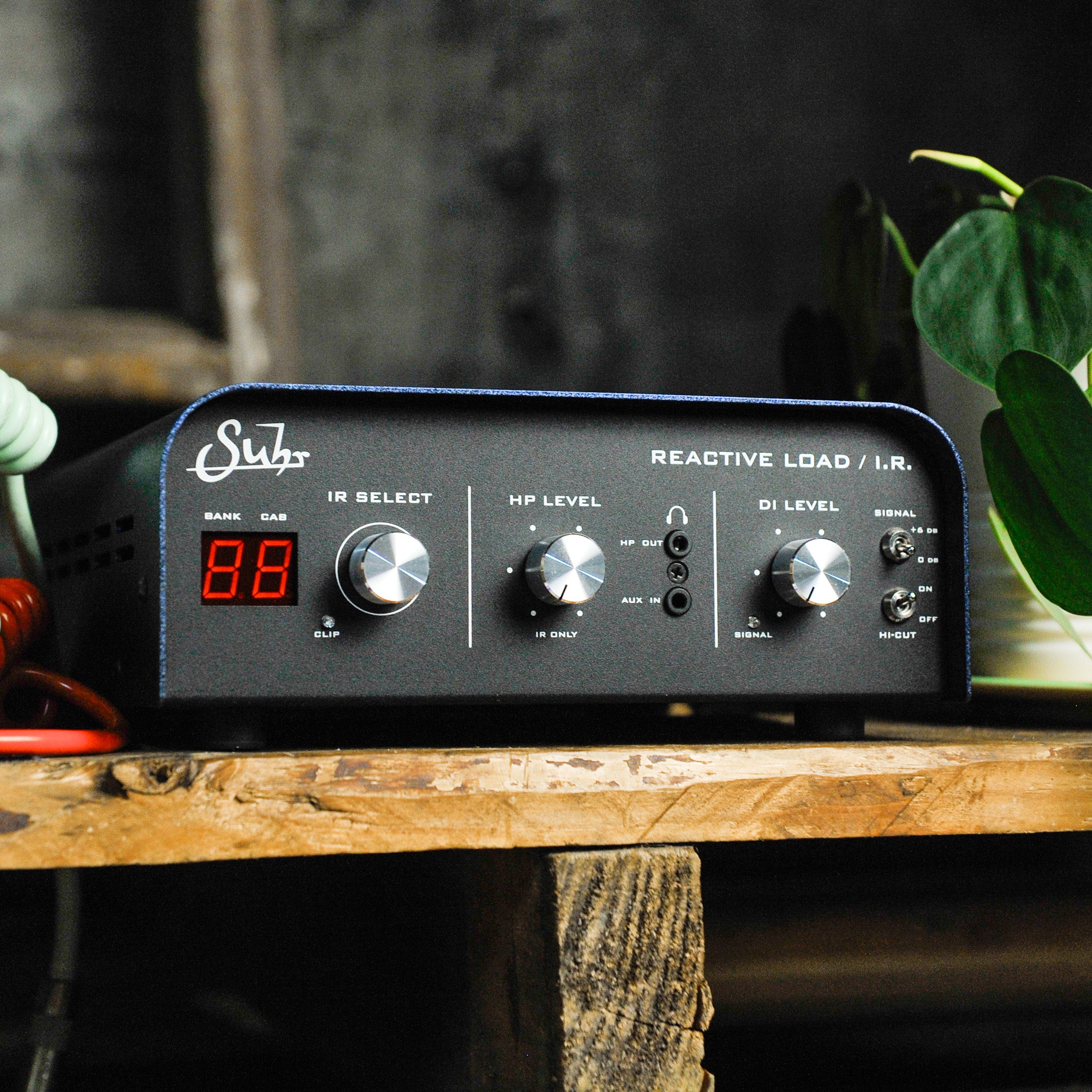

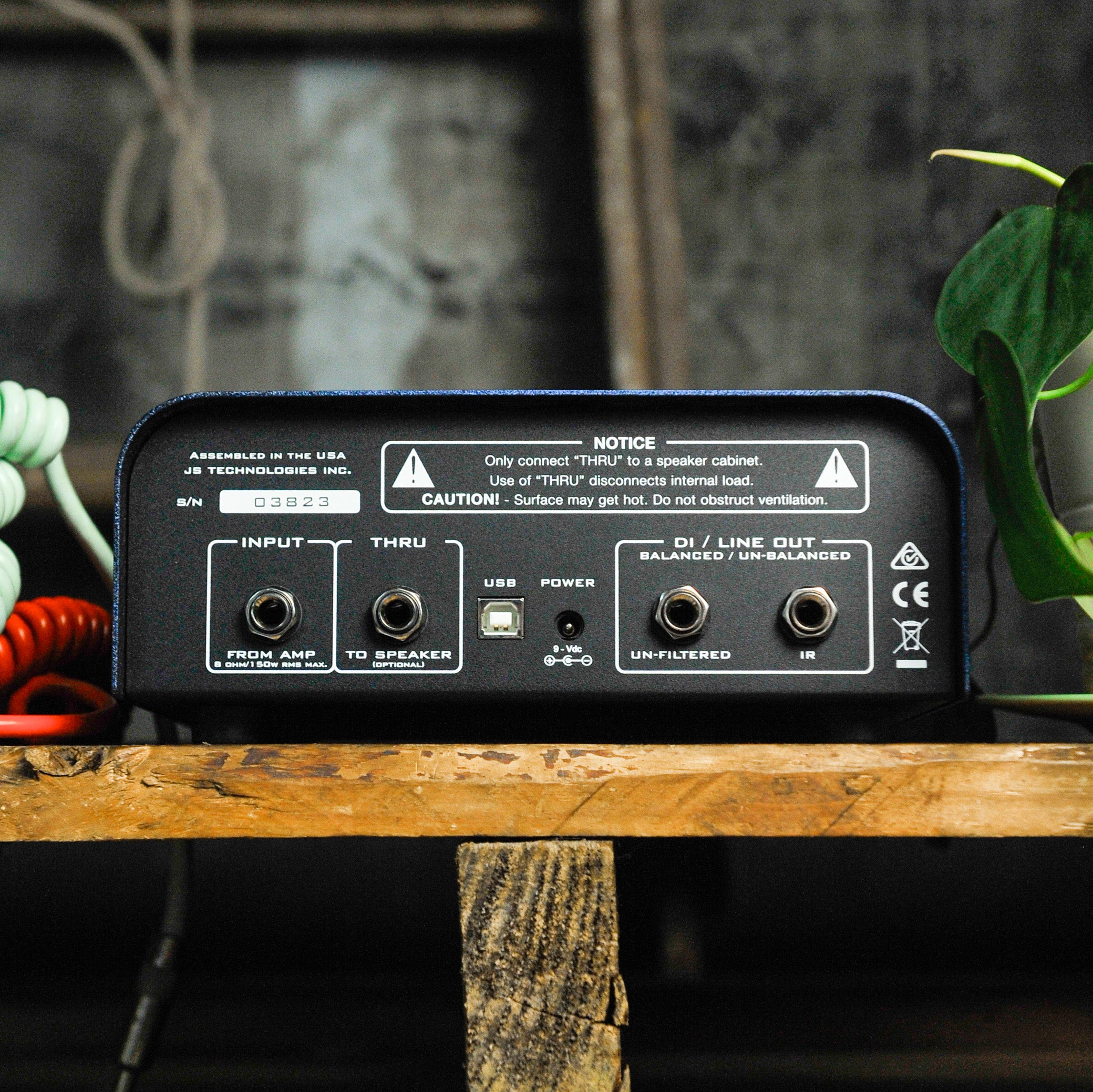

Suhr Reactive Load I.R. Guitar Recording Interface

The Suhr Reactive Load I.R. builds on the legacy of the original Reactive Load — widely regarded as the industry standard for accurate speaker cabinet replacement — adding powerful impulse response technology for a complete, all-in-one solution. It delivers authentic amp feel, dynamic response, and studio-ready direct tones without the need for a physical cabinet.

Reactive Load I.R. comes preloaded with expertly mic’d speaker cabinet impulse responses and remains fully open for third-party IR loading, making it a flexible tool for recording, live use, and silent practice.

Features & Specs:

• Reactive speaker load with impulse response technology

• Builds on the original Suhr Reactive Load design

• Preloaded with 16 Suhr speaker cabinet impulse responses captured by Celestion

• Open system allows loading third-party IRs via USB

• Speaker input impedance: 8 Ohm

• Balanced line output impedance: 600Ω (maximum)

• Unbalanced line output impedance: 600Ω (maximum)

• Maximum recommended input power: 150 Watts RMS

• I.R. format: .WAV, mono, 24-bit, 48kHz, 20.5 ms

• I.R.s longer than 20.5 ms are truncated

• I.R. output latency: 1.2 ms

• Power supply included: 9V DC, centre negative

• Operating voltage: 9V DC (maximum 12V DC)

• Current consumption: <200 mA

• ROHS compliant

Included Speaker Impulse Responses:

• Badger 1x12 – Celestion Vintage 30

• Bella 1x12 – Celestion V-Type

• PT 2x12 – Celestion Creamback

• Hedgehog 2x12 – Celestion G12-65

• Suhr 4x12 – Celestion Greenback

• Suhr 4x12 – Celestion Vintage 30

Dimensions & Weight:

• 8.8" (W) x 8.9" (D) x 3.6" (H)

• Weight: 3.0 kg
