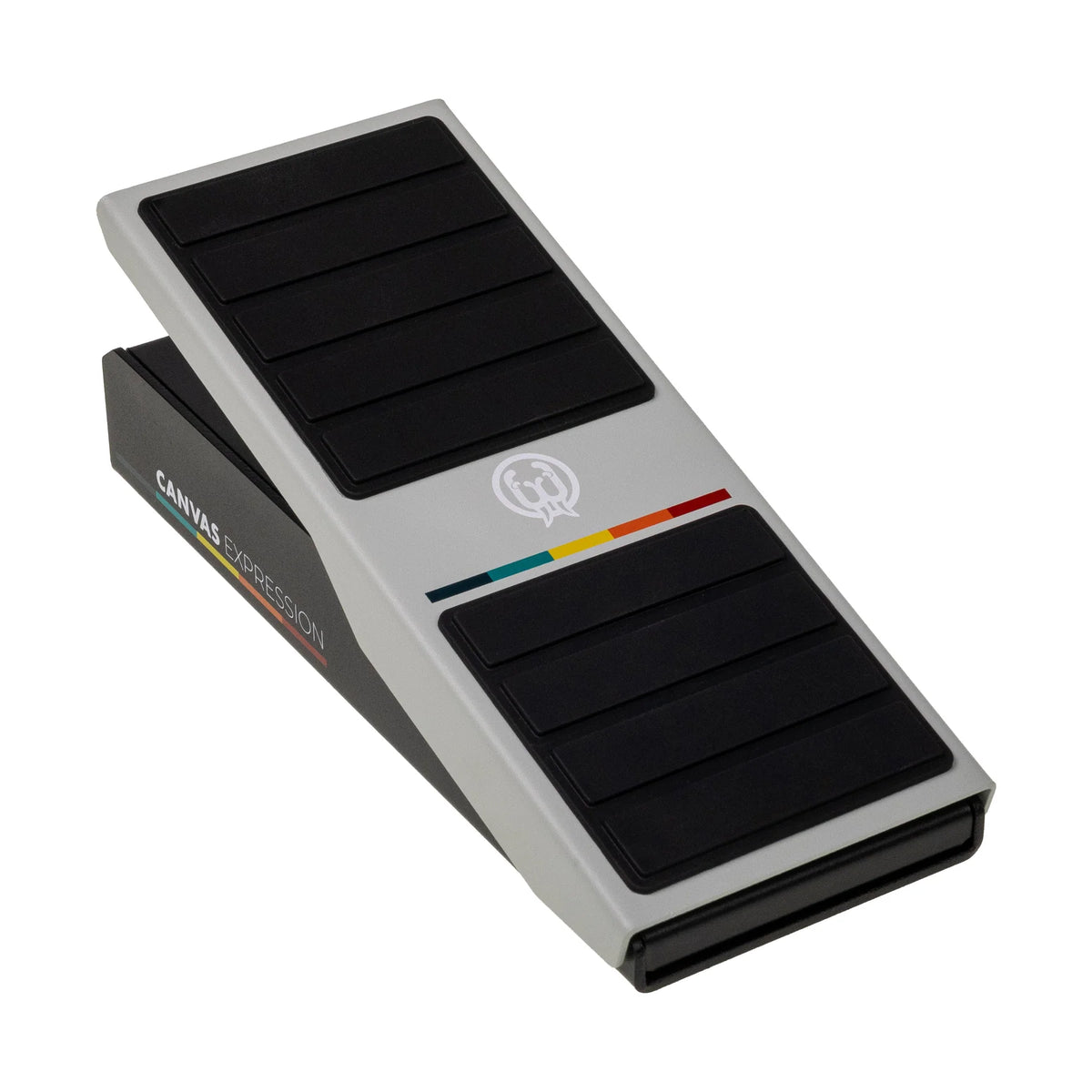

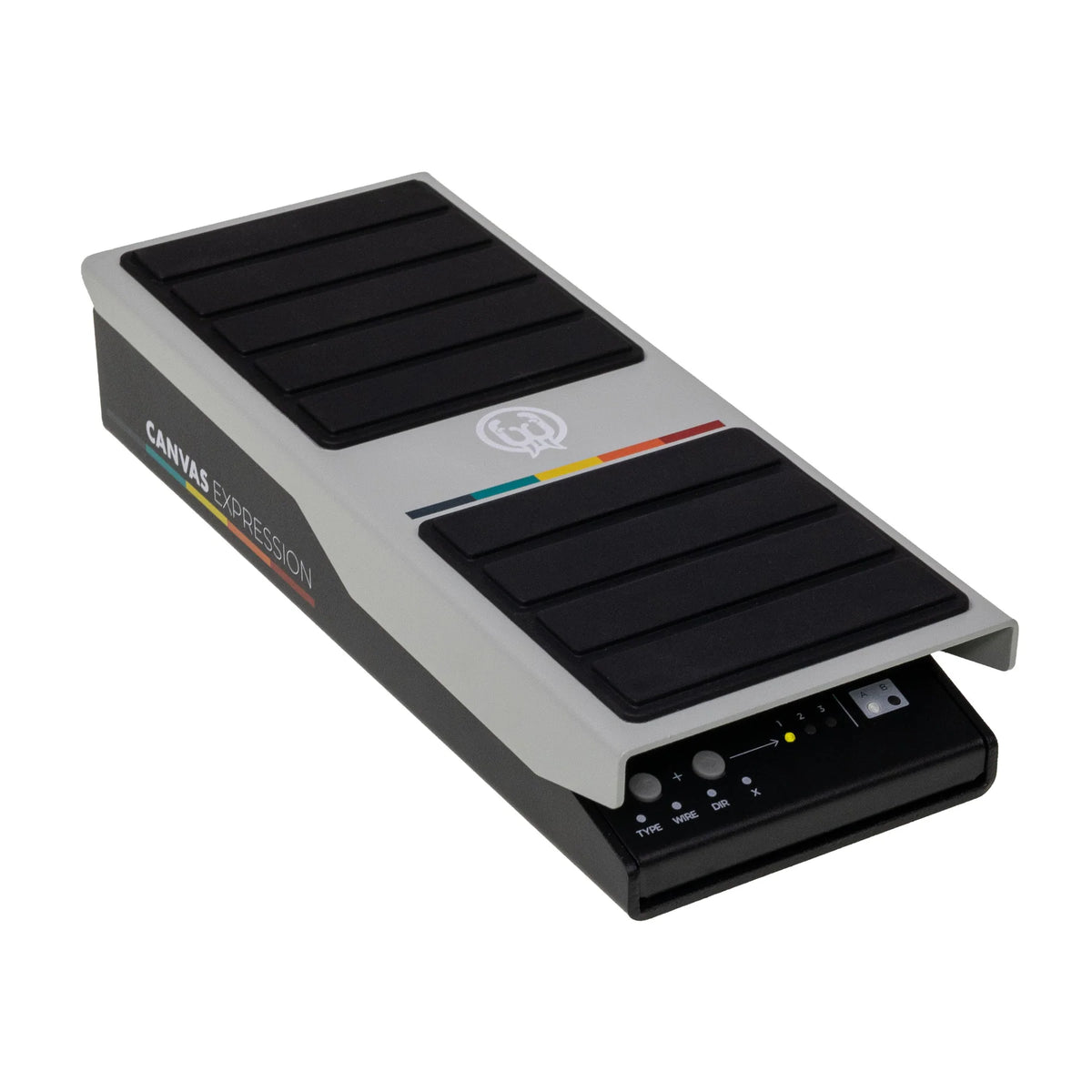

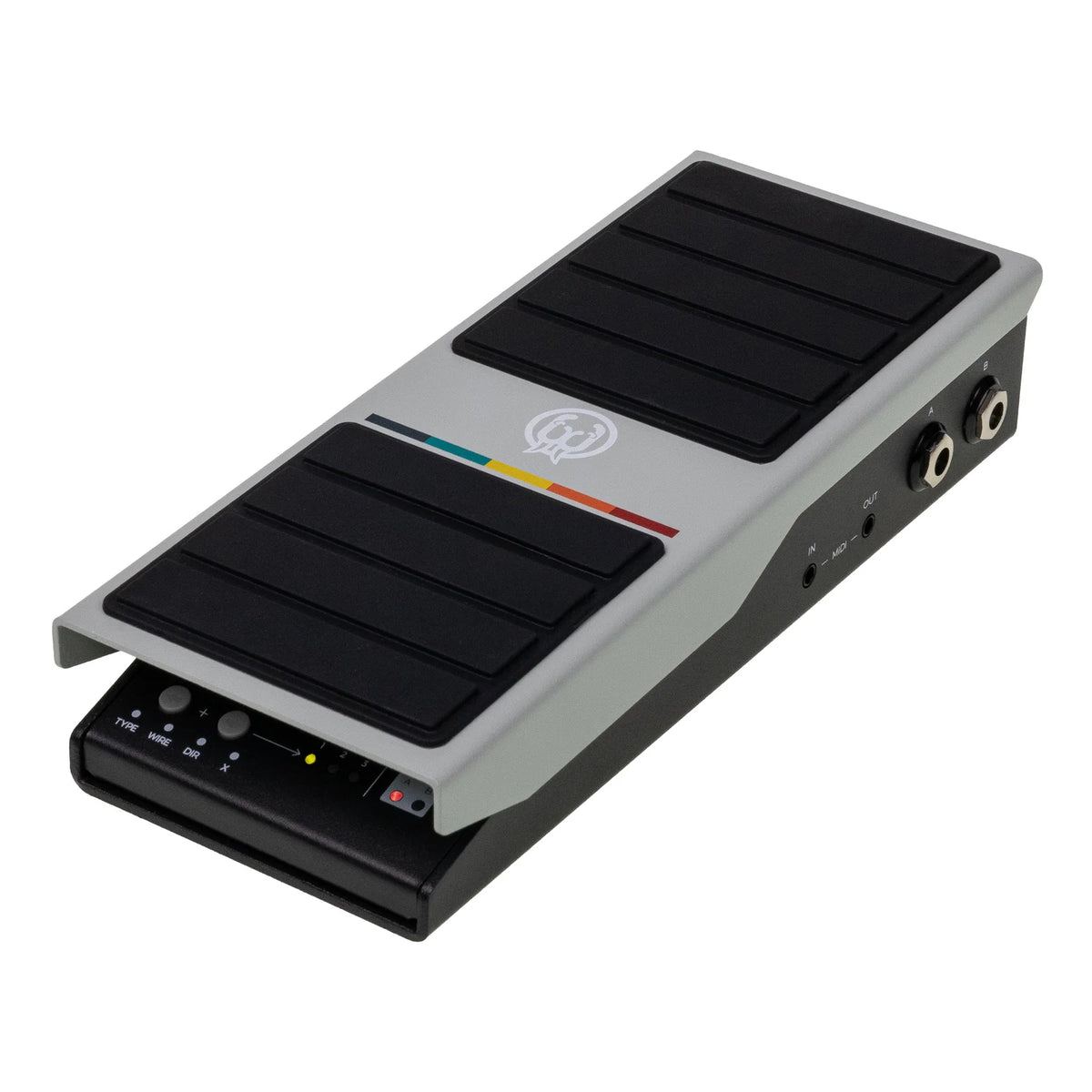

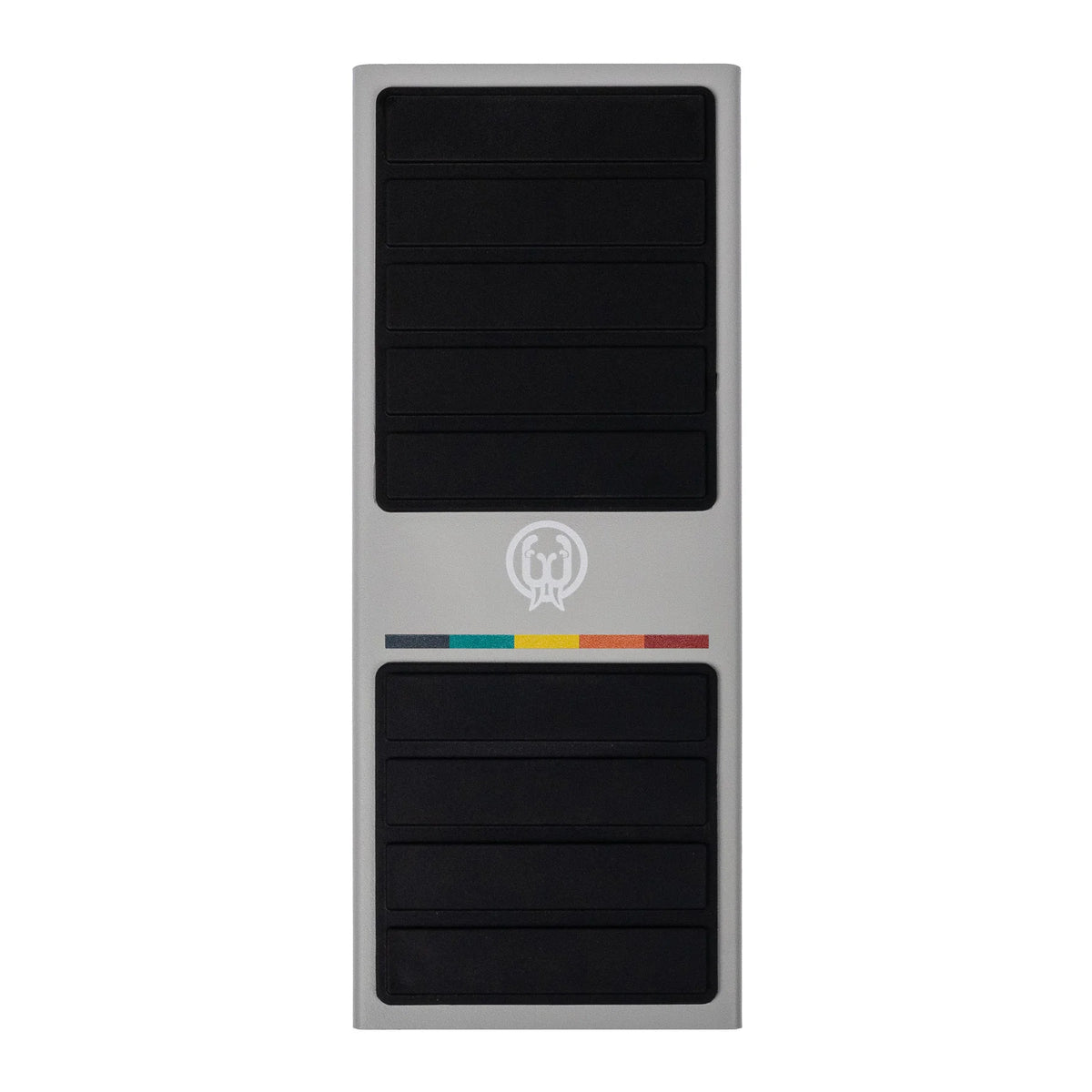

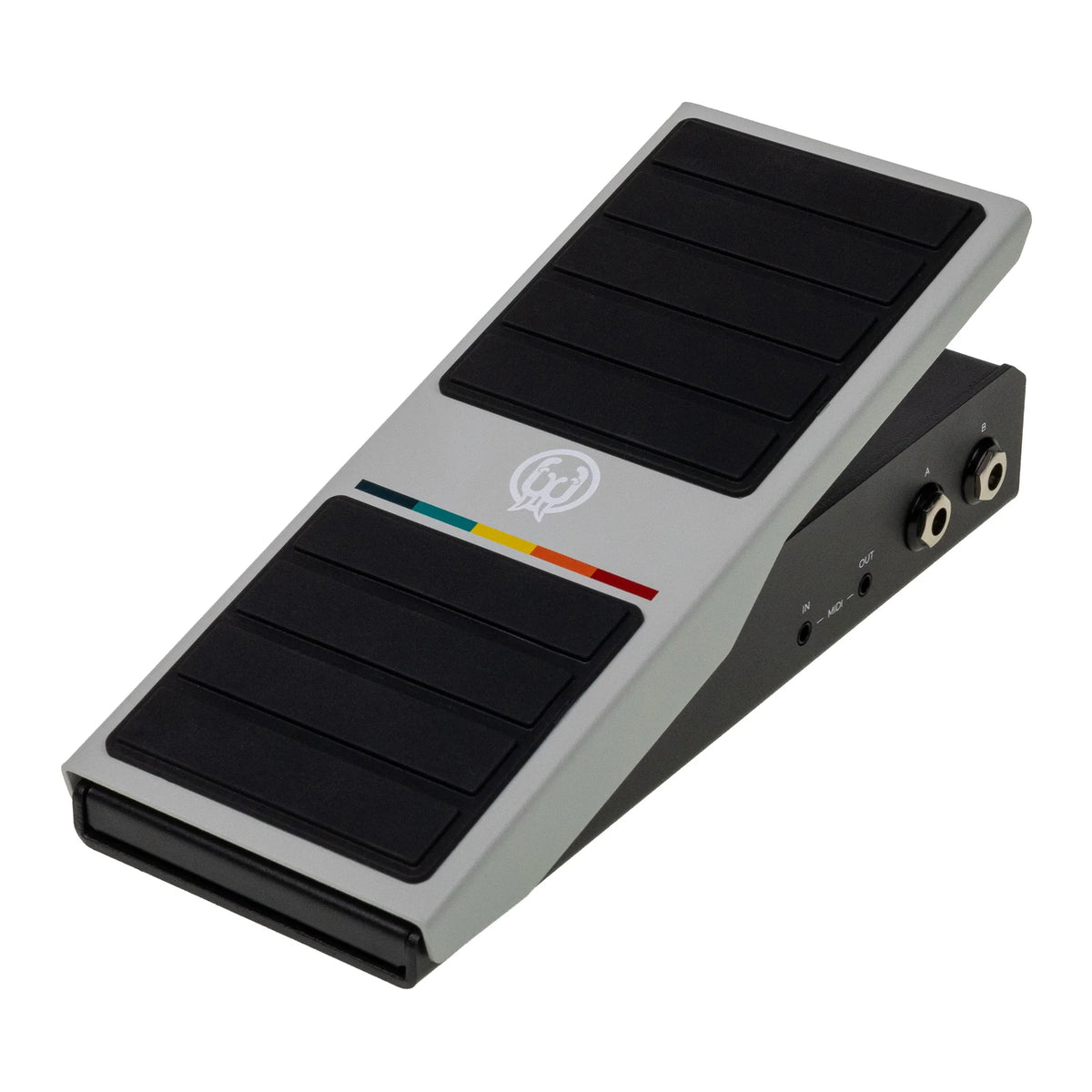

Walrus Audio Canvas Expression Pedal Grey

Product Description

The Walrus Audio Canvas Expression Pedal Grey is a highly configurable expression controller designed to handle far more than a conventional expression pedal. With two independently configurable outputs, each capable of operating as an expression, switch or control voltage output, Canvas Expression can control multiple devices simultaneously from a single treadle.

Automatic expression wiring detection supports TRS, RTS and TS resistance configurations, while adjustable tapers, sweep direction, switching thresholds and output behaviour allow the pedal to be tailored to different rigs. For synth and modular setups, either output can generate selectable 0–5V or 0–3.3V control voltage.

Canvas Expression also provides extensive MIDI functionality, with up to 16 assignable MIDI messages available via 1/8" TRS MIDI and USB-C. It supports CC and PC messages, high-resolution 14-bit USB MIDI and MIDI input for remotely enabling or disabling outputs.

Advanced settings, MIDI assignments and firmware updates can be managed through the Canvas Expression web editor, while onboard configuration keeps essential adjustments accessible without additional software. Adjustable treadle resistance allows the physical feel to be customised for a lighter or firmer sweep.

Built without strings, potentiometers or gears that can become scratchy or wear out, Canvas Expression provides a flexible central controller for pedalboards, amplifiers, synthesisers, modular systems and computer-based setups.

Key Features

• Two independently configurable outputs
• Expression, switch or CV operation for each output
• Control two different devices simultaneously
• Automatic expression wiring detection
• Supports TRS, RTS and TS resistance configurations
• Adjustable taper and sweep direction
• Programmable momentary or latching switching
• Selectable 0–5V or 0–3.3V control voltage
• Up to 16 assignable MIDI messages
• CC and PC MIDI control
• TRS MIDI and USB MIDI connectivity
• High-resolution 14-bit USB MIDI
• Web editor for advanced configuration
• Adjustable treadle resistance
• No strings, potentiometers or gears

Specifications

• Brand: Walrus Audio
• Model: Canvas Expression
• Colour: Grey
• Outputs: 2 Independent Configurable Outputs
• Output Modes: Expression, Switch, Control Voltage
• Expression Wiring: TRS, RTS, TS Resistance
• Expression Wiring Detection: Automatic
• Sweep Direction: Forward or Reverse
• Switch Operation: Momentary or Latching
• Switch Activation Points: Heel, Middle or Toe
• CV Ranges: 0–5V, 0–3.3V
• MIDI Messages: Up to 16 Assignable Messages
• MIDI Message Types: Control Change (CC), Program Change (PC)
• MIDI Outputs: 1/8" TRS MIDI, USB MIDI
• USB MIDI Resolution: 14-Bit
• MIDI Input: Supports Remote Output Enable/Disable
• USB Connection: USB-C
• Treadle Resistance: Adjustable

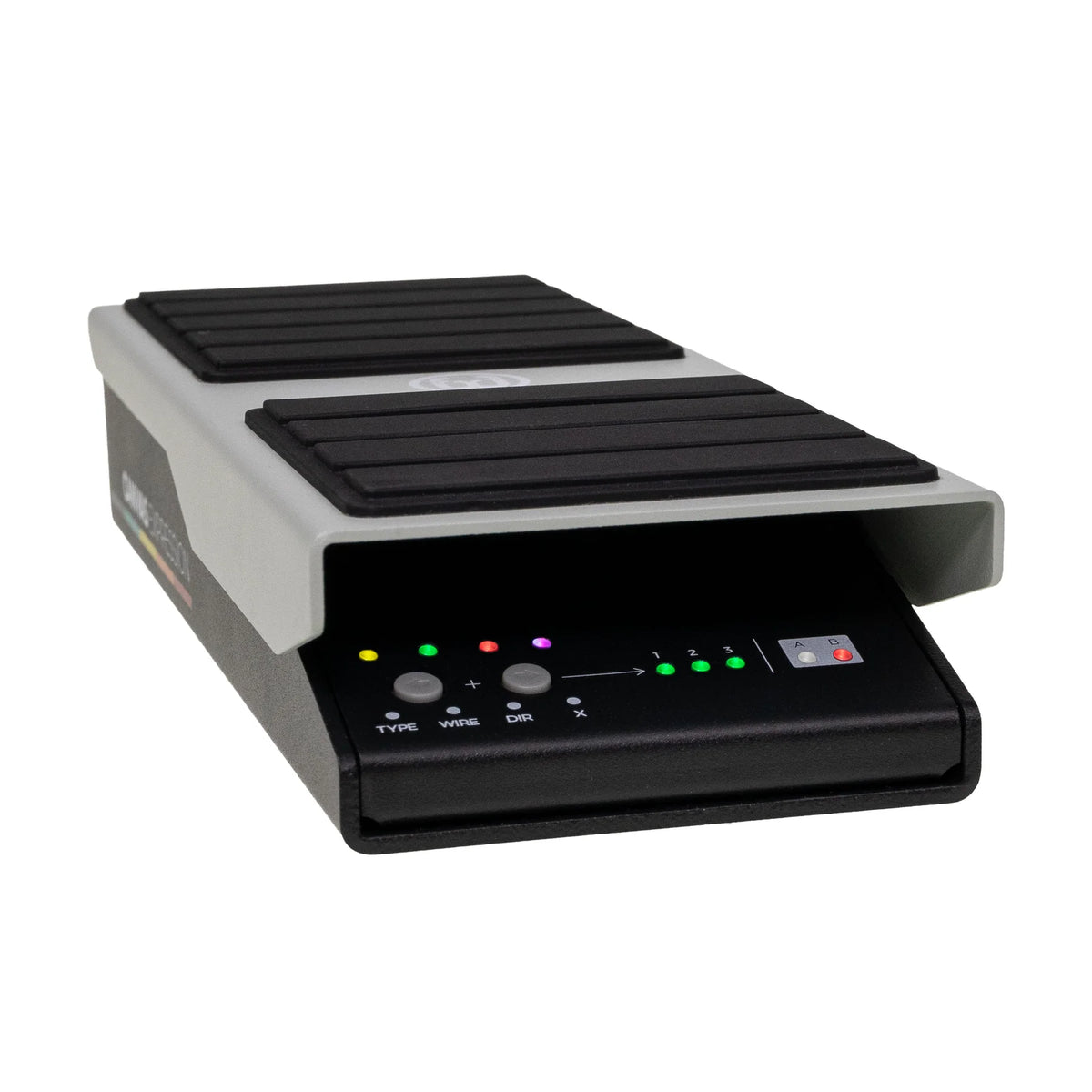

• Configuration: Onboard Controls and Canvas Expression Web Editor
• Web Editor Functions: MIDI Assignments, Switch Behaviour, TS Resistance Values, Global Settings, Firmware Updates
