Walrus Audio Canvas: Power 22 AUS

Product Description

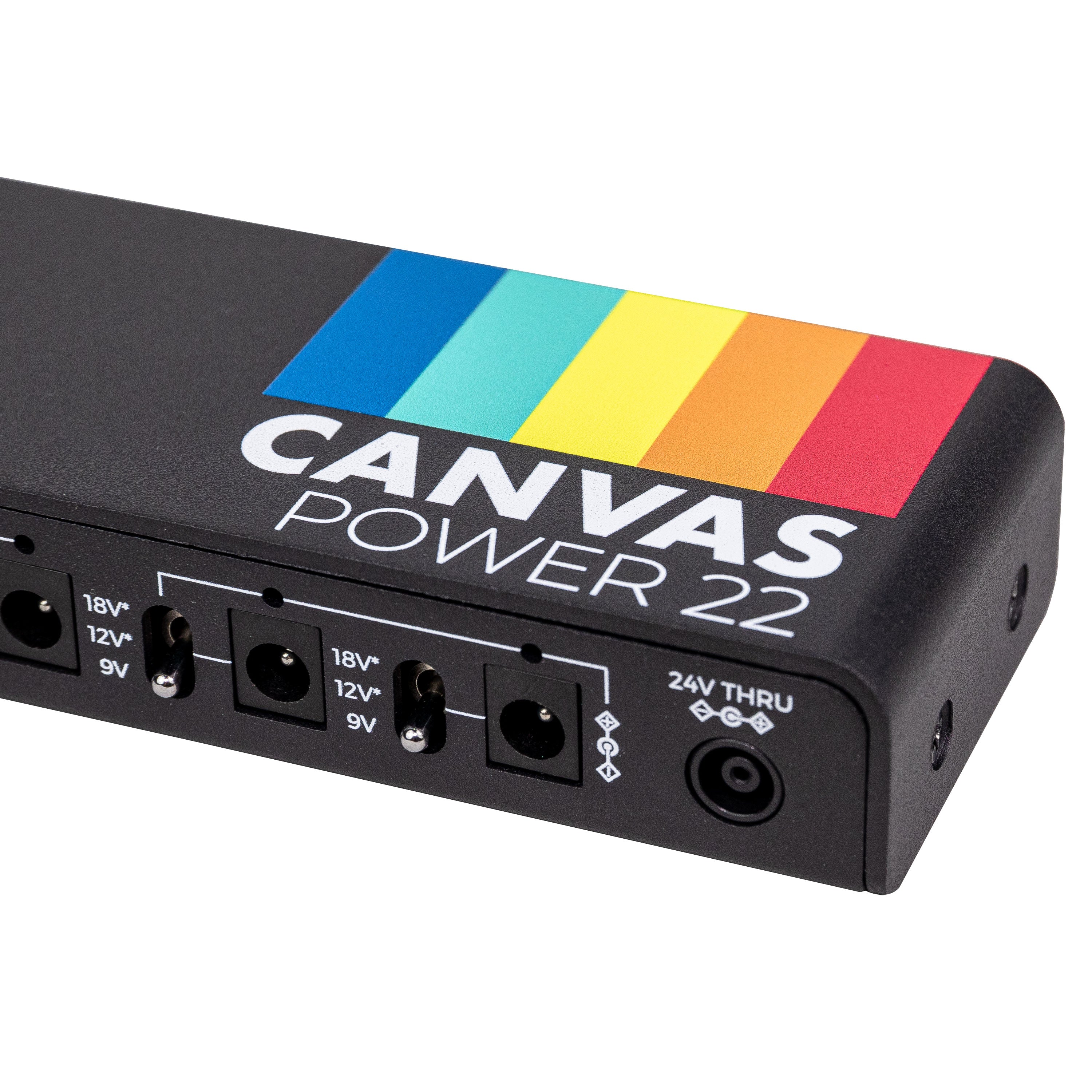

The Walrus Audio Canvas Power 22 AUS Pedalboard Power Supply provides clean, isolated power for large effects pedalboards. With 20 dedicated 9V outputs and two selectable 9V/12V/18V outputs, it suits players who need more connections than a smaller supply offers, alongside flexibility for pedals with different voltage requirements.

Modern switch-mode architecture combines efficient operation with heavily filtered, individually isolated outputs to help minimise unwanted power-supply noise. Each output delivers up to 500mA at 9V. An onboard LED power meter shows remaining power capacity, individual output LEDs indicate power delivery, and a separate USB-C charging port powers compatible devices.

The slim, 25.5mm-high enclosure and included mounting brackets make under-pedalboard installation practical where space permits. Custom 2.1mm DC cables use a right-angle connector at one end and an ultra-short straight connector at the other for easier routing. Compatible Canvas Power units can also be connected through the series' 24V power-link system as your setup grows.

This Australian standalone version includes the 96W power adapter, Australian-compatible IEC mains cable and 22 DC cables. Before connecting pedals, check each pedal's required voltage, current, connector and polarity, and keep the combined load within the supply's available power. Output count alone does not determine compatibility.

Key Features

• 22 individually isolated outputs for large pedalboards
• 20 dedicated 9V DC outputs and two selectable 9V/12V/18V outputs
• Up to 500mA per output at 9V
• Efficient switch-mode architecture with heavily filtered outputs for low-noise power
• 24V power linking for expansion with compatible Canvas Power units
• LED power meter and individual output indicators
• 5V, 1.5A USB-C charging output for compatible devices
• Slim enclosure with L-style mounting brackets
• Low-profile 2.1mm DC cables in two lengths
• Standalone Australian configuration with external power adapter

Specifications

Brand: Walrus Audio
Model: Canvas Power 22
Product Type: Isolated Pedalboard Power Supply
Configuration: Standalone – AU Type I Mains Connection
Power Architecture: Switch-Mode
Total Isolated Outputs: 22
Standard Outputs: 20 × 9V DC, 500mA
Variable Voltage Outputs: 2 × 9V / 12V / 18V
Maximum Current at 9V: 500mA per Output
USB-C Output: 5V, 1.5A
Expansion Connection: 24V Power Link
Power Monitoring: LED Power Meter
Output Indicators: Individual LEDs
DC Connections: 2.1mm Barrel
Dimensions: 417 × 54 × 25.5mm
Weight: 572g
External Power Adapter: 96W, 24V DC, 4A
Power Adapter Dimensions: 146 × 57 × 31.5mm
Mounting: L-Style Mounting Brackets
Warranty: Walrus Audio Limited Lifetime Warranty

Included Accessories

• 1 × Walrus Audio Canvas Power 22 Power Supply
• 7 × 18-inch Straight-to-Right-Angle DC Cables
• 15 × 36-inch Straight-to-Right-Angle DC Cables
• 1 × 96W, 24V DC 4A Power Adapter
• 1 × Australian-Compatible IEC Power Cable
• 1 × L-Style Mounting Bracket Set
