Walrus Audio Canvas: Power 8 AUS

Product Description

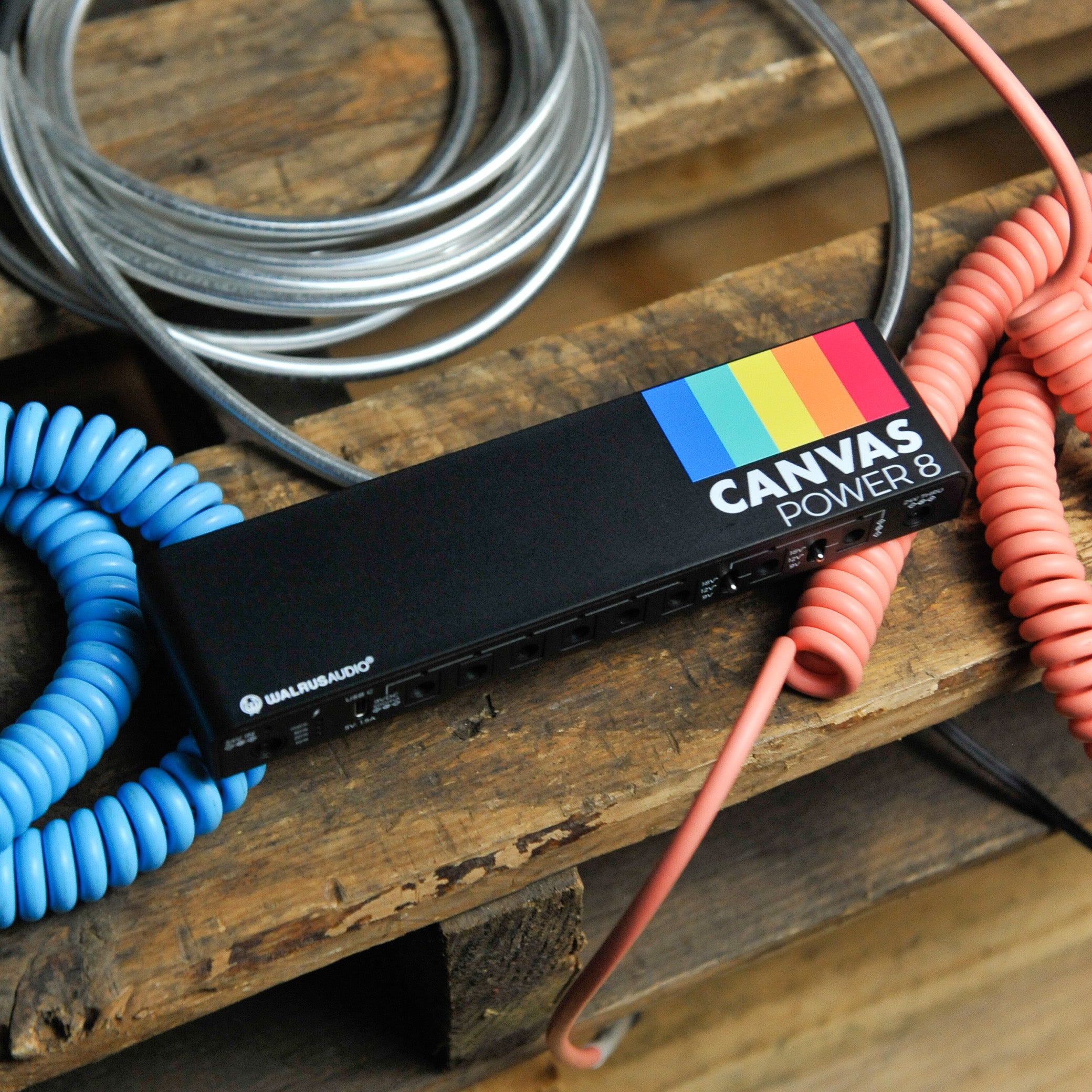

The Walrus Audio Canvas Power 8 Pedalboard Power Supply delivers clean, reliable and isolated power for modern pedalboards. Featuring eight individually isolated outputs, a slim, pedalboard-friendly design and flexible voltage options, the Canvas Power 8 provides a professional power solution for guitarists running multiple effects pedals.

Each of the eight isolated outputs delivers up to 500mA at 9V, providing ample current for a wide range of analogue and digital effects pedals. Two outputs feature selectable 9V, 12V and 18V operation, offering additional flexibility for pedals requiring higher operating voltages. The power supply also includes a convenient USB-C port for powering compatible devices such as phones and tablets.

Built around a modern switch-mode power architecture, the Canvas Power 8 combines efficient operation with heavily filtered, isolated outputs to minimise unwanted noise and interference. This makes it an excellent choice for demanding pedalboards featuring high-current digital effects, modulation, delays, reverbs and traditional analogue pedals.

The Canvas Power series is designed with modularity and expandability in mind. Available as either a standalone power supply or a linkable unit, the Canvas Power 8 can be integrated with compatible Canvas Power supplies using a 24V power link. This allows players to expand their pedalboard power system without requiring an additional mains connection for every unit.

Its ultra-slim enclosure is designed to fit beneath most pedalboards, while the included universal mounting brackets provide secure installation. An onboard LED power meter displays remaining power capacity, and individual output indicators provide clear visual confirmation of power delivery.

Walrus Audio also includes specially designed DC cables featuring a right-angle connector at one end and an ultra-short straight connector at the other, making cable management easier in tightly packed pedalboard setups.

Combining eight isolated outputs, selectable voltages, USB-C connectivity and modular expansion, the Walrus Audio Canvas Power 8 is a versatile and dependable power solution for professional and enthusiast pedalboards.

Key Features

• Eight individually isolated outputs for clean, reliable pedal power

• Up to 500mA available from each 9V output

• Two selectable-voltage outputs for 9V, 12V or 18V operation

• Modern switch-mode architecture for efficient, low-noise performance

• Heavily filtered outputs help minimise unwanted interference

• USB-C port for powering compatible external devices

• Modular design supports expansion with compatible Canvas Power supplies

• Available in standalone and linkable configurations

• Ultra-slim enclosure fits beneath most pedalboards

• Onboard LED power meter displays remaining power capacity

• Individual LED indicators show output activity

• Included mounting brackets for secure pedalboard installation

• Custom low-profile DC cables simplify cable management

• Covered by Walrus Audio's limited lifetime warranty

Specifications

• Brand: Walrus Audio

• Model: Canvas Power 8

• Product Type: Isolated Pedalboard Power Supply

• Power Architecture: Switch-Mode

• Isolated Outputs: 8

• Standard Output Voltage: 9V DC

• Maximum Output Current: 500mA per 9V Output

• Variable Voltage Outputs: 2

• Selectable Voltages: 9V, 12V, 18V

• USB Port: USB-C

• Expansion: 24V Power Link

• Power Monitoring: LED Power Meter

• Output Indicators: Individual LEDs

• DC Connections: 2.1mm Barrel

• Mounting: Universal L-Style Brackets

• Available Configurations: Standalone or Link

• Warranty: Walrus Audio Limited Lifetime Warranty

Included Accessories

Canvas Power 8 Standalone Version

• 1 × Canvas Power 8 Power Supply

• 5 × 18" Straight-to-Right-Angle DC Cables

• 3 × 36" Straight-to-Right-Angle DC Cables

• 1 × 48W, 24V DC 2A Power Adapter

• 1 × Country-Specific IEC Power Cable

• 1 × L-Style Mounting Bracket Set

Canvas Power 8 Link Version

• 1 × Canvas Power 8 Power Supply

• 5 × 18" Straight-to-Right-Angle DC Cables

• 3 × 36" Straight-to-Right-Angle DC Cables

• 1 × 12" EIAJ Link Cable

• 1 × L-Style Mounting Bracket Set
