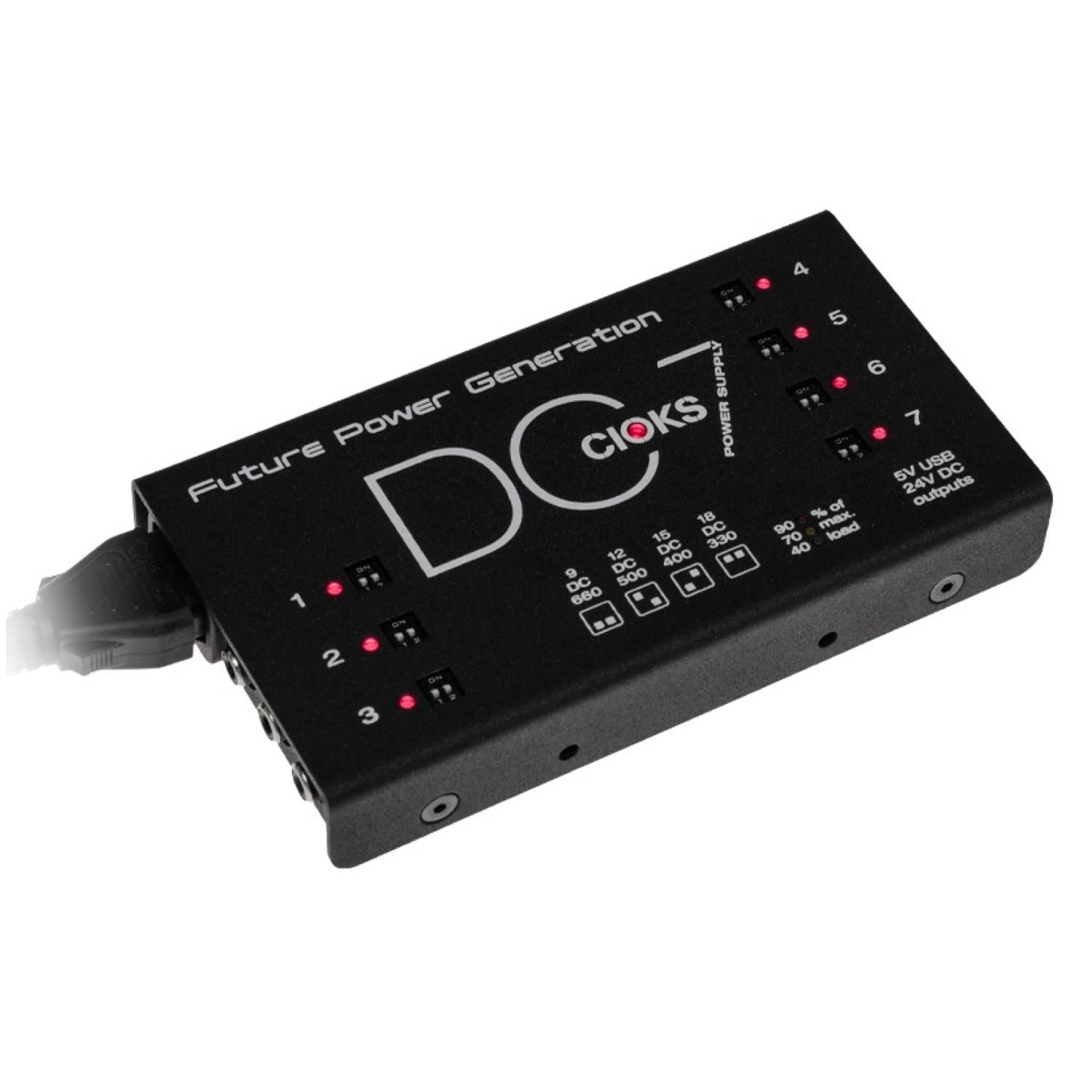

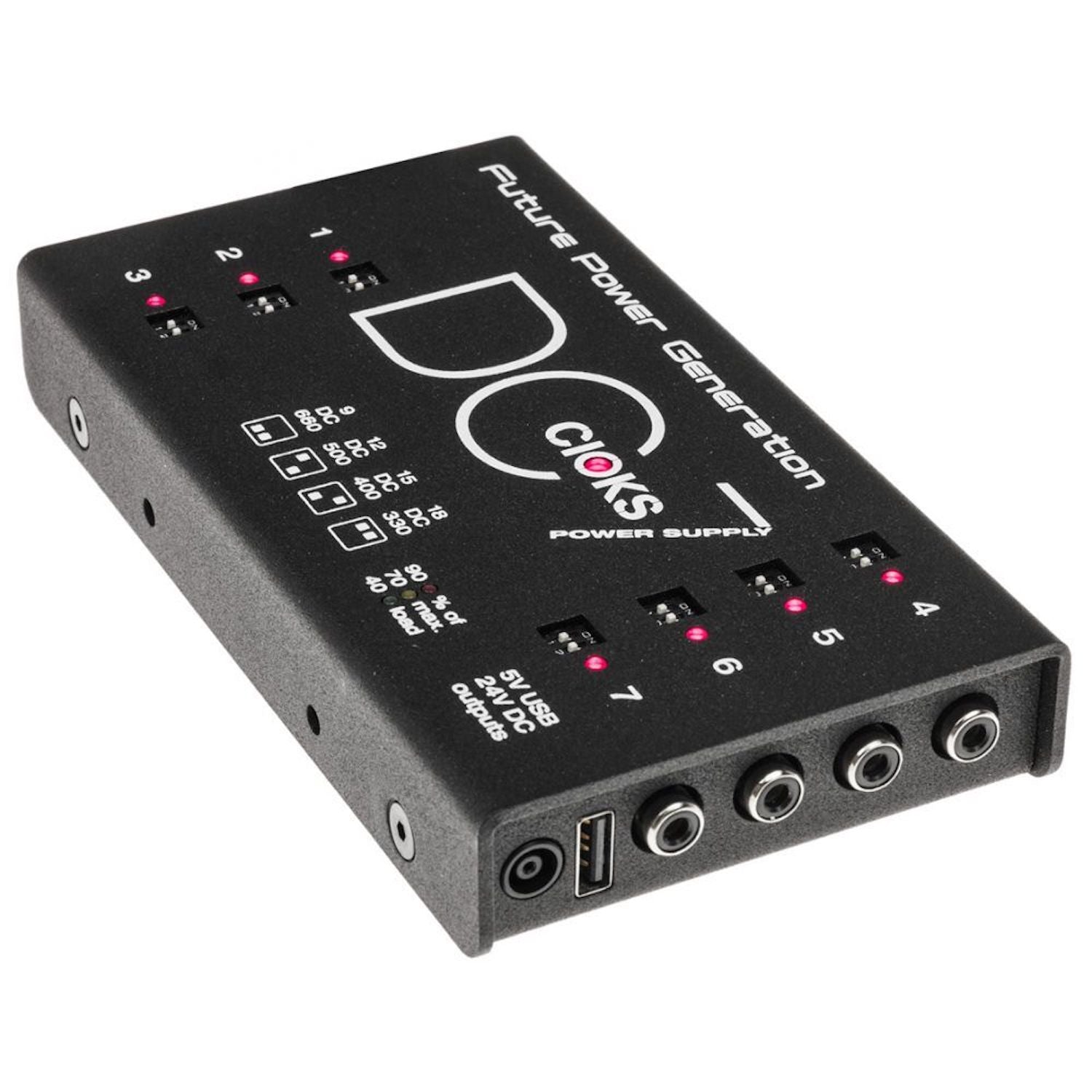

CIOKS DC7 v2 Isolated Power Supply w/USB C

Product Description

The CIOKS DC7 v2 is the latest generation of the award-winning DC7 pedalboard power supply, combining an exceptionally slim profile with high-current isolated outputs, flexible voltage selection and ultra-low-noise operation. Building on the original DC7, the v2 adds a significantly more powerful USB-C output while improving efficiency for cooler operation.

Measuring just 25.4 mm thick and weighing only 0.5 kg, the DC7 v2 uses advanced two-stage switch-mode technology and multistage filtering to provide up to 48W of total output power. Its seven isolated DC outlets each provide up to 6W, including 660mA at 9V, with individually selectable 9V, 12V, 15V or 18V operation. This makes it suitable for everything from conventional analogue pedals to demanding high-current digital equipment.

For additional flexibility, the upgraded USB-C output provides up to 15W (5V/3A), three times the power of the 5W USB-A output found on the original DC7. A 24V DC auxiliary output is also provided for expanding the system with compatible CIOKS products.

The DC7 v2 can be expanded using the CIOKS 4 Expander, CIOKS 8 Expander or CIOKS Crux, along with other compatible 24V-powered units. This makes it easy to build a larger power system while retaining isolated outputs and a clean, organised pedalboard.

Monitoring is straightforward, with individual power-limit LEDs for each output, a global overload indicator and a built-in true power meter displaying the total load. Universal 100-240V AC mains compatibility also makes the DC7 v2 suitable for travelling musicians.

Mounting hardware for Pedaltrain and Templeaudio pedalboards is included, along with 12 CIOKS Flex cables. The DC7 v2 is also compatible with CIOKS GRIP for drill-free installation on Pedaltrain boards.

Specifications

• Model: DC7 v2
• Isolated DC Outputs: 7
• Voltage Per Isolated Output: 9V / 12V / 15V / 18V DC Selectable
• Maximum Power Per Isolated Output: 6W
• Maximum Current at 9V: 660mA Per Outlet
• USB Output: USB-C, 5V
• Maximum USB-C Current: 3A
• Maximum USB-C Power: 15W
• Auxiliary Output: 24V DC
• Maximum Auxiliary Current: 2A
• Maximum Total Output Power: 48W
• Mains Input: 100-240V AC
• Profile / Thickness: 25.4 mm
• Weight: 0.5 kg
• Included Cables: 12 Flex Cables
• Mounting Hardware: Pedaltrain & Templeaudio Hardware Included
• Expansion Compatibility: CIOKS 4, CIOKS 8, CIOKS Crux & Compatible 24V Units
• Design: Denmark
• Assembly: Poland
• Warranty: 5 Years
