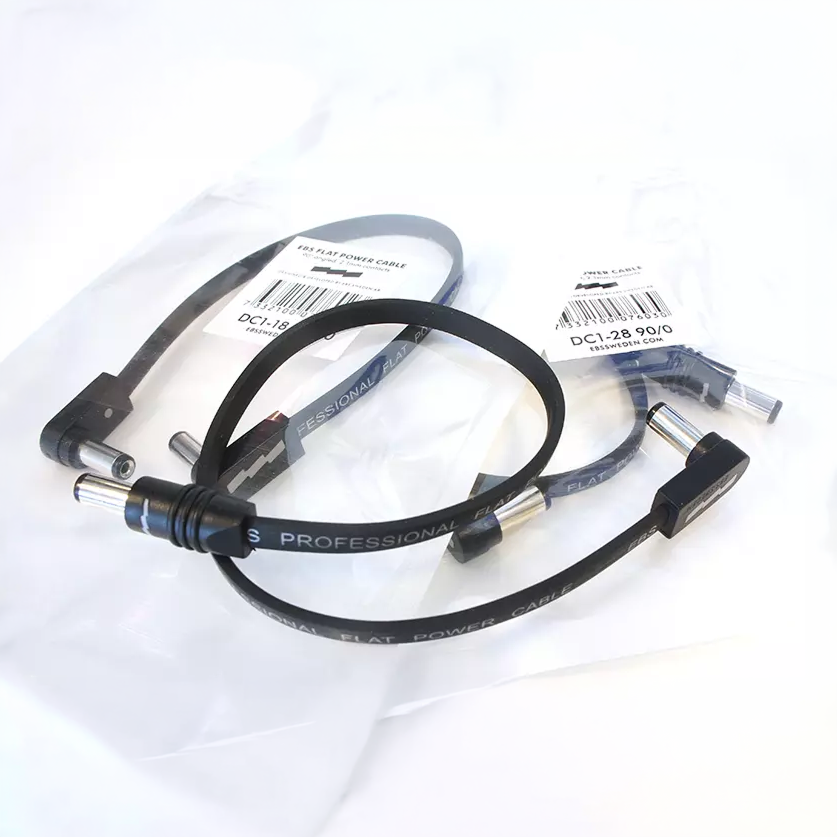

EBS DC-1 Flat Power Cable Straight to RA 2.1mm

Product Description

The EBS DC-1 Power Distribution Cable is a compact 1-to-1 DC power cable designed to connect effects pedals to multi-output pedalboard power supplies. Following the same space-saving philosophy as EBS flat patch cables, the DC-1 uses low-profile connectors to help keep crowded pedalboards neat and organised.

Available with either straight-to-angled (90/0) or angled-to-angled (90/90) connectors, the DC-1 makes it easier to route power around pedals where conventional DC plugs can take up valuable space.

With standard 2.1mm inner / 5.5mm outer DC connectors and a range of cable lengths available, the EBS DC-1 is a practical solution for clean, efficient pedalboard power distribution.

Key Features

• 1-to-1 pedal power distribution cable
• Designed for use with multi-output power supplies
• Low-profile connectors help save pedalboard space
• Flat, compact connector design
• Straight-to-angled and angled-to-angled configurations available
• Multiple cable lengths available
• Designed to keep pedalboard wiring neat and organised

Specifications

• Brand: EBS
• Model: DC-1
• Product Type: DC Power Distribution Cable
• Connector Inner Diameter: 2.1mm
• Connector Outer Diameter: 5.5mm
• Barrel Length: 10mm
• Overall Mating Length: 12mm
• Connector Configurations: 90/0 Straight-to-Angled, 90/90 Angled-to-Angled
• Available Lengths: 18cm, 28cm, 38cm, 48cm, 58cm, 68cm, 78cm

Available Models

• DC1-18 90/0 – 18cm
• DC1-18 90/90 – 18cm
• DC1-28 90/0 – 28cm
• DC1-28 90/90 – 28cm
• DC1-38 90/0 – 38cm
• DC1-38 90/90 – 38cm
• DC1-48 90/0 – 48cm
• DC1-48 90/90 – 48cm
