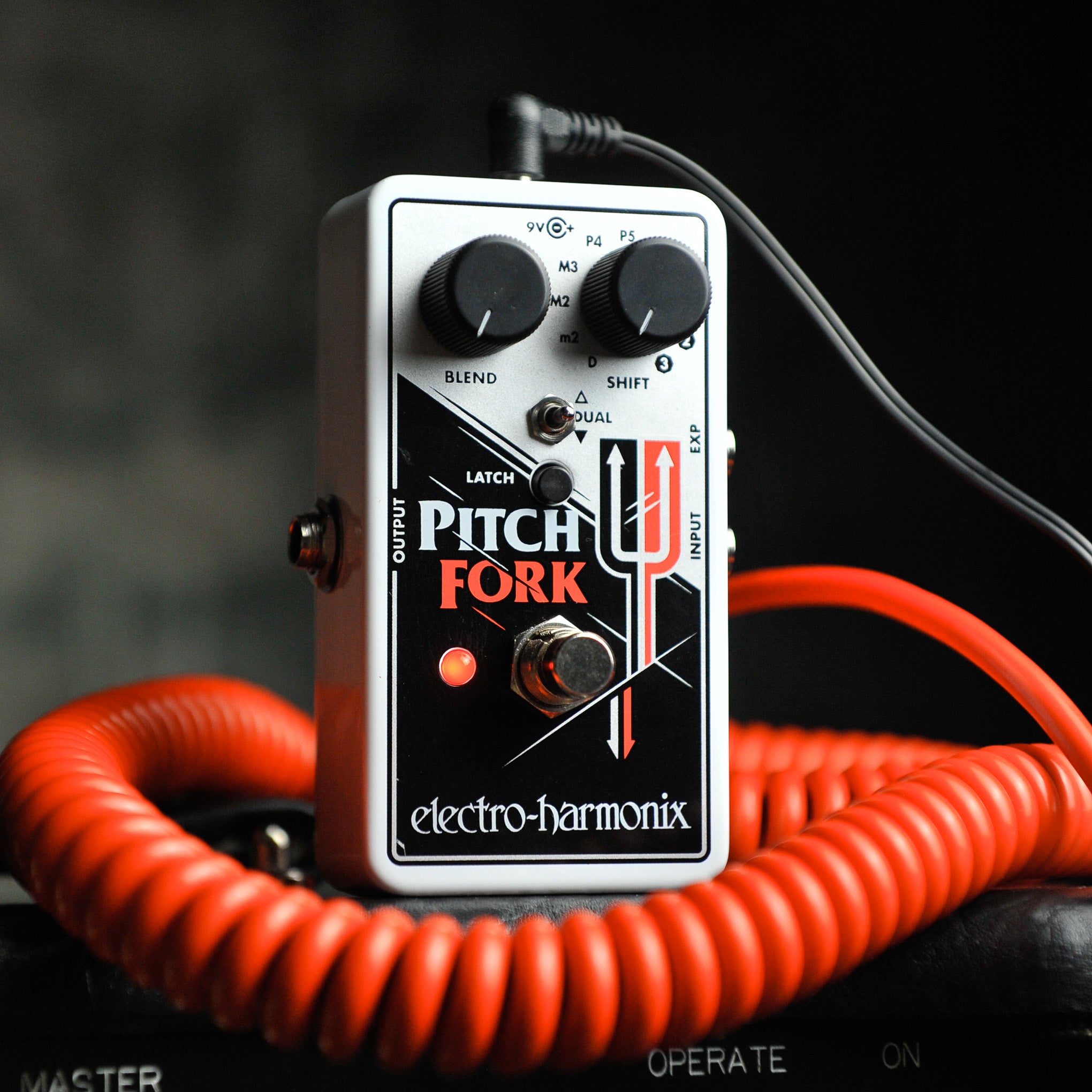

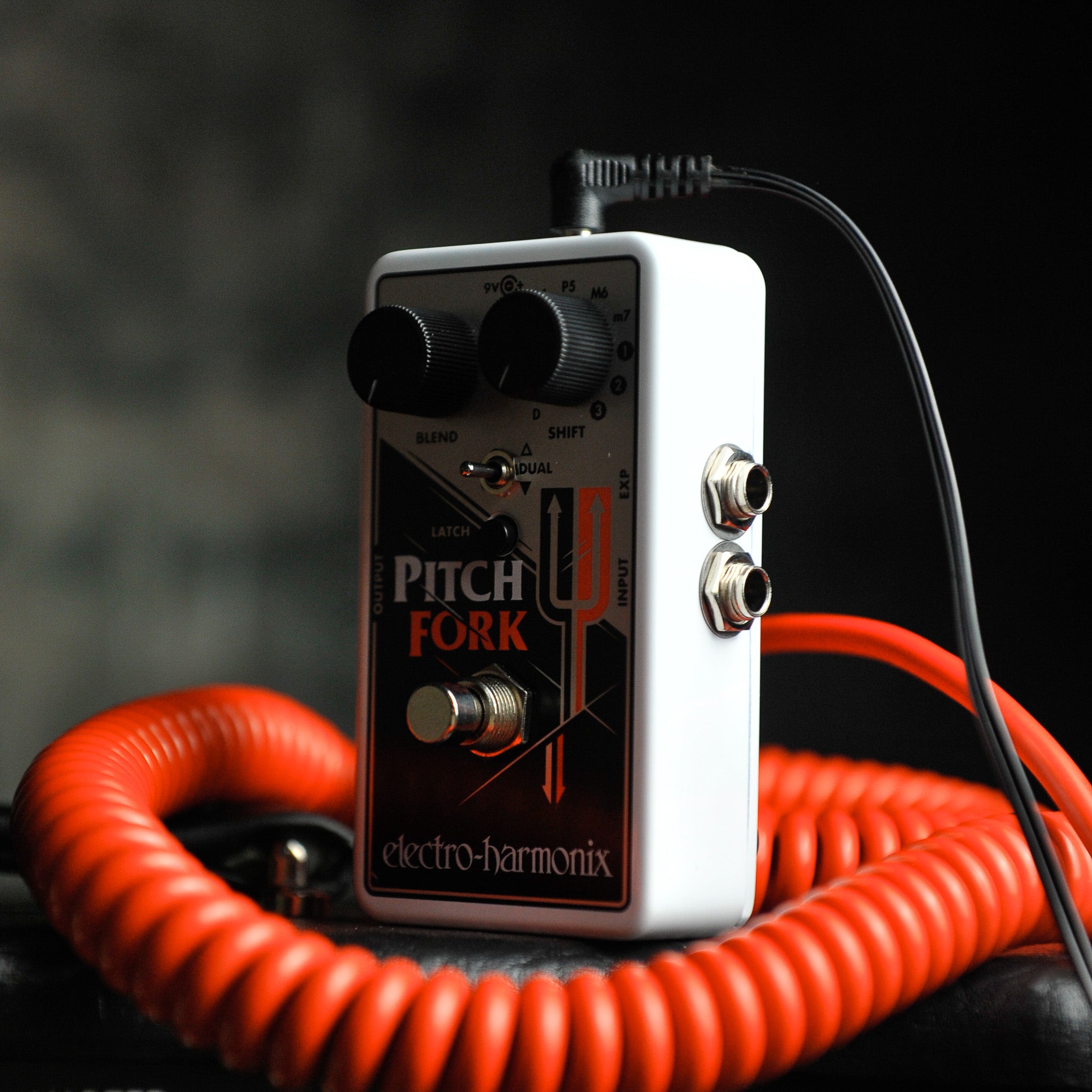

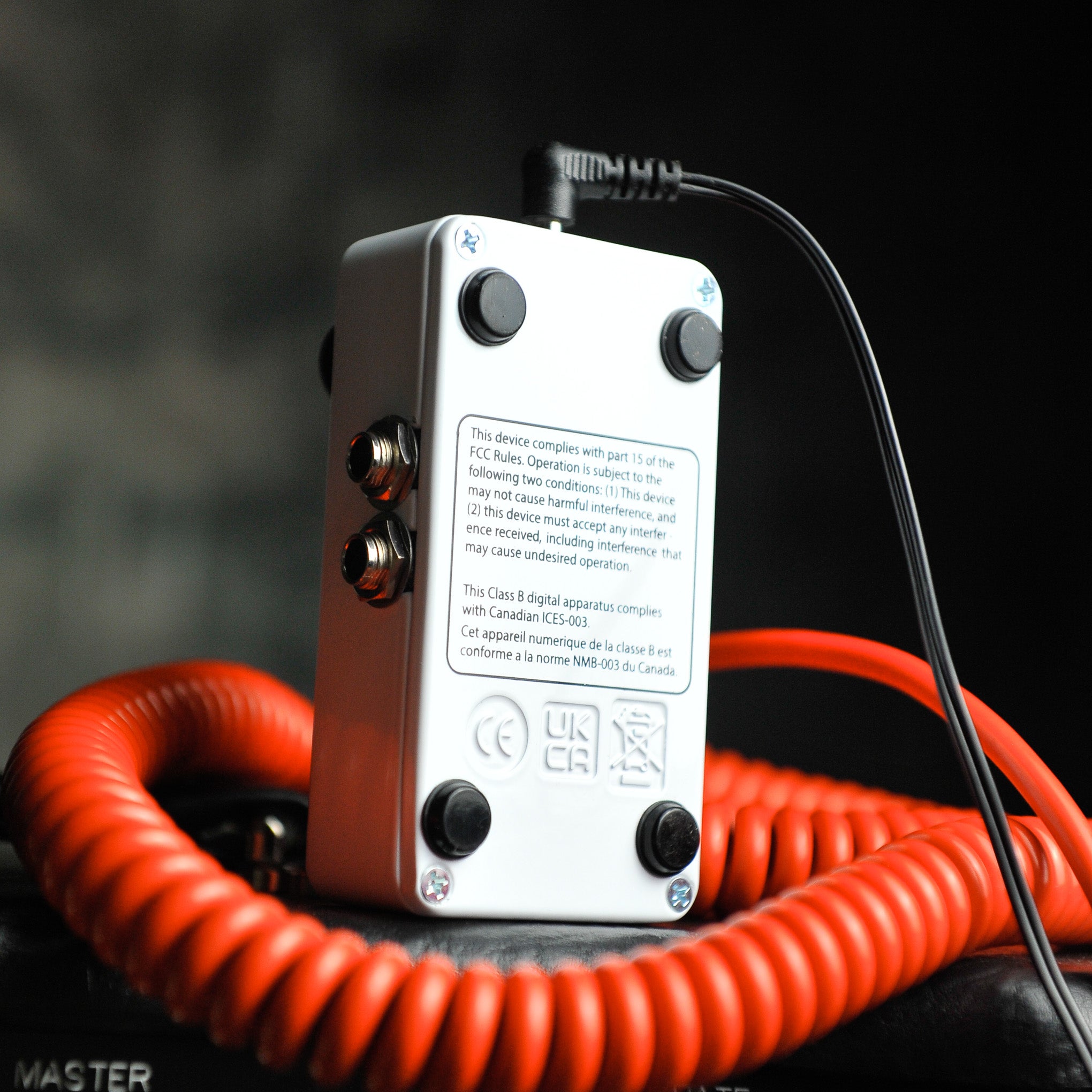

Electro Harmonix Pitch Fork Polyphonic Pitch Shift Pedal

Product Description

The Electro-Harmonix Pitch Fork is a versatile polyphonic pitch shifter capable of transposing your instrument's signal up or down by as much as three octaves. Designed for guitarists, bassists, and experimental musicians alike, it delivers fast, accurate tracking and a wide range of creative pitch-shifting possibilities, from subtle detuning and harmonies to dramatic octave effects.

Featuring Up, Down, and Dual modes, the Pitch Fork can generate single pitch-shifted voices or complex harmonies with two simultaneous shifted signals. The intuitive controls make it easy to select intervals ranging from slight detuning through to three full octaves, while the expression pedal input allows real-time control over pitch shifting or glissando effects.

With selectable Latch and Momentary modes, buffered bypass, and compact pedalboard-friendly construction, the Pitch Fork is a powerful tool for creating unique textures, harmonies, and expressive pitch-based effects.

Key Features

• Polyphonic pitch shifting with accurate tracking
• Transposes up to three octaves up or down
• Up, Down, and Dual pitch-shifting modes
• Expression pedal input for pitch and glissando control
• Creates harmonies, octave effects, and detuned textures
• Selectable Latch and Momentary operation
• Compact pedalboard-friendly design
• Includes power supply

Specifications

• Brand: Electro-Harmonix
• Model: Pitch Fork
• Effect Type: Polyphonic Pitch Shifter
• Circuit: Digital
• Audio: Mono
• Bypass: Buffered Bypass
• Pitch Range: ±3 Octaves
• Modes:
  • Up
  • Down
  • Dual
• Shift Intervals:
  • Detune (17 Cents)
  • Minor 2nd
  • Major 2nd
  • Major 3rd
  • Perfect 4th
  • Perfect 5th
  • Major 6th
  • Minor 7th
  • 1 Octave
  • 2 Octaves
  • 3 Octaves
• Expression Input: Yes
• Operation Modes:
  • Latch
  • Momentary
• Power Supply: 9.6V DC 200mA Power Adapter
• Battery Operation: Optional 9V Battery (Not Included)
• Current Draw: 30mA
• Dimensions: 114.3 mm x 69.9 mm x 53.3 mm
• Year Released: 2014
• UPC: 683274011578
• Included Accessories: Power Adapter

Controls

• Shift
• Blend
• Up / Down / Dual Mode Switch
• Latch / Momentary Switch
