Meris LVX Modular Delay System Pedal

Product Description

The Meris LVX Modular Delay System is an advanced stereo delay workstation that redefines what a delay pedal can be. Built around a fully modular processing architecture, LVX abandons traditional fixed delay types in favour of complete creative flexibility, allowing players to build deeply customised delay structures and evolving soundscapes using a vast range of processing modules and routing options.

Powered by an advanced ARM processor and premium analog signal path, LVX combines studio-grade audio quality with an intuitive colour-screen interface designed for immediate hands-on navigation despite its enormous depth. Featuring highly configurable dual delays with up to 2540ms of delay time, LVX supports everything from pristine rhythmic repeats and tape-style echoes to granular processing, pitch shifting, modulation, ambient textures, and experimental sound design.

The system includes a wide range of integrated processing elements inspired by classic Meris pedals including Polymoon, Hedra, Enzo, and Ottobit Jr., alongside entirely new effects such as Granulize, Cassette, Poly Pitch, and advanced preamp processing. A built-in true stereo 60-second looper, extensive MIDI implementation, expression control, and preset management make LVX equally powerful in studio, live, and immersive performance environments.

Designed and built in California, LVX delivers virtually limitless delay creativity with premium build quality and professional-level audio performance.

Key Features

• Advanced modular stereo delay system
• Highly configurable dual delay architecture
• Up to 2540ms of stereo delay time
• Fully modular processing and routing system
• Integrated true stereo 60-second looper
• Includes processing inspired by Polymoon, Hedra, Enzo, and Ottobit Jr.
• Additional processing including Granulize, Cassette, Poly Pitch, and Preamps

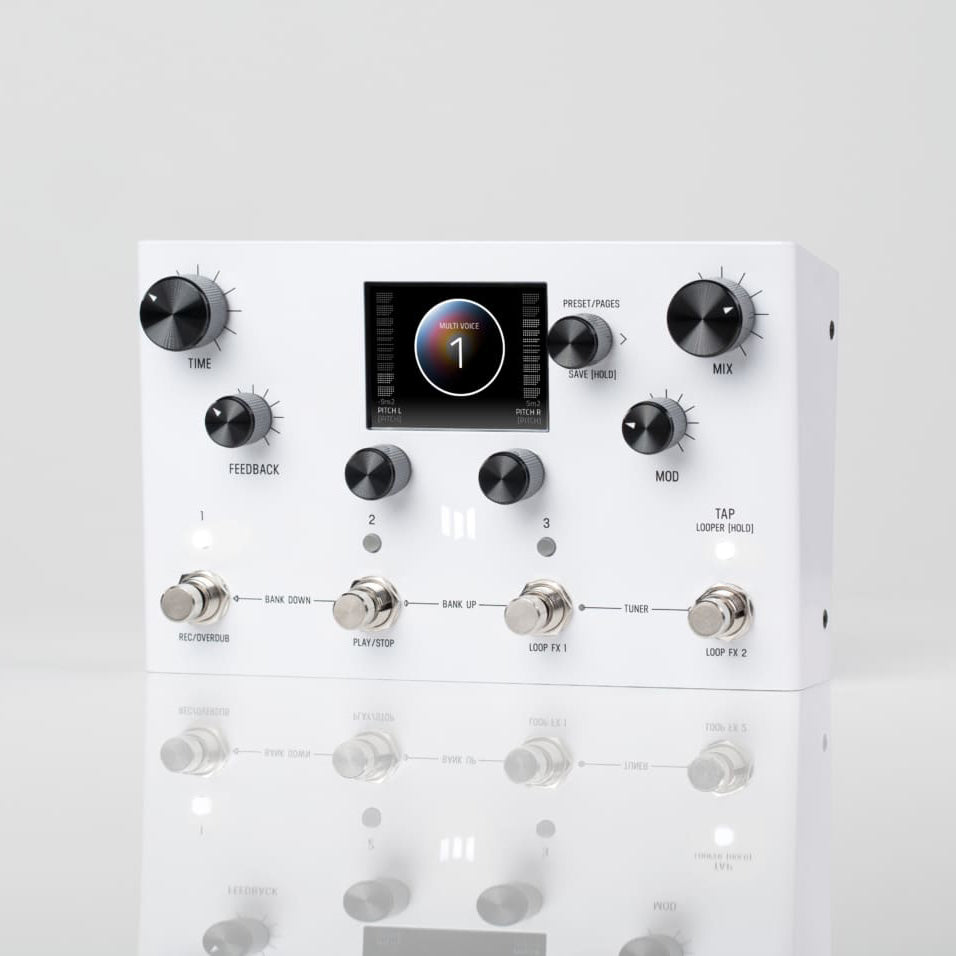

• Intuitive colour screen interface
• Deep modifier routing system for advanced parameter control
• 99 preset locations across 33 banks
• Favourite preset bank for instant recall

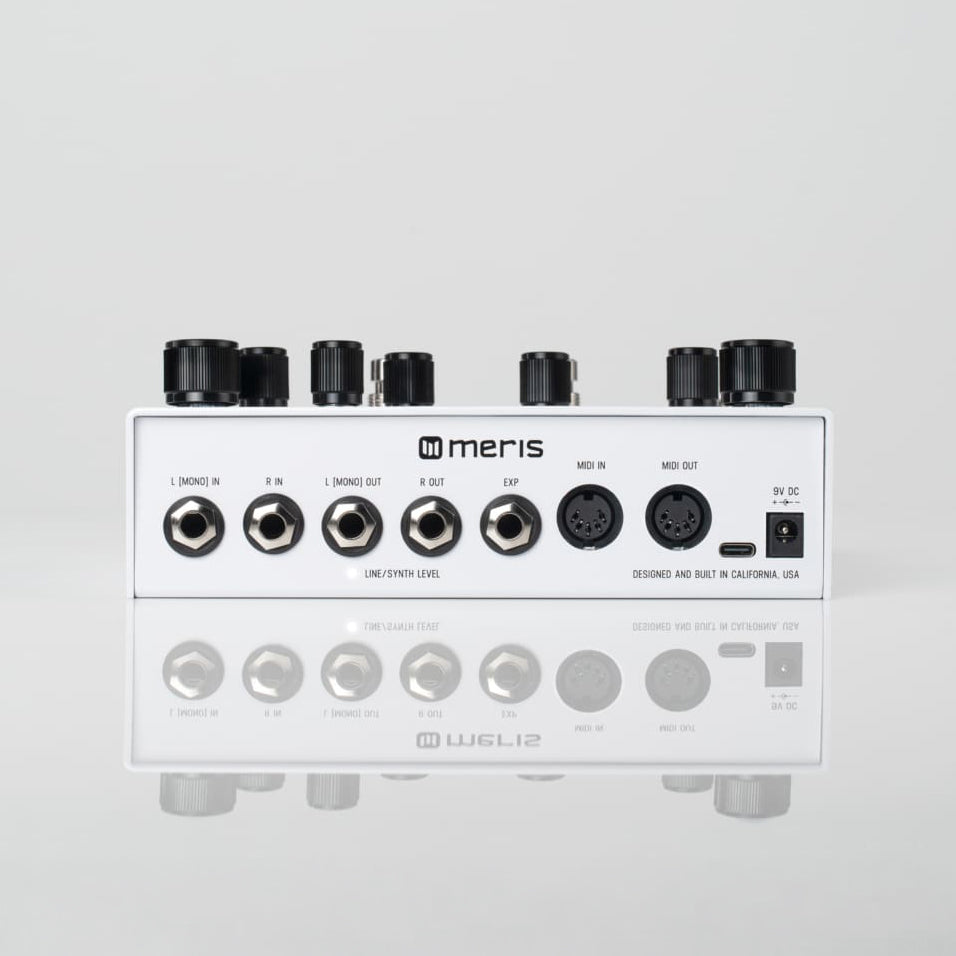

• Stereo input and output operation
• MIDI input/output and expression pedal integration
• Premium analog signal path with high-end DSP processing
• Designed and built in California, USA

Controls

• Delay structure selection
• Modular processing controls
• Modifier routing
• Looper controls
• Preset management
• MIDI functionality
• Expression pedal assignment
• Tuner access

Specifications

• Conversion: 24-bit A/D and D/A
• DSP: 32-bit floating point
• Sample Rate: 48kHz
• Input Impedance: 1 Meg Ohm
• Signal-to-Noise Ratio: 115dB Typical
• Frequency Response: 20Hz–20kHz
• Max Input Level: +9 dBu (Instrument), +12.5 dBu (Line/Synth)
• Power Requirement: 9V DC centre-negative
• Current Draw: 300mA
• Bypass: Selectable True Bypass or Analog Buffered Bypass
• Dimensions: 7.25" x 4.5" x 2"
• Weight: 680g
• Finish: White Powder Coat with Iridescent Flake
