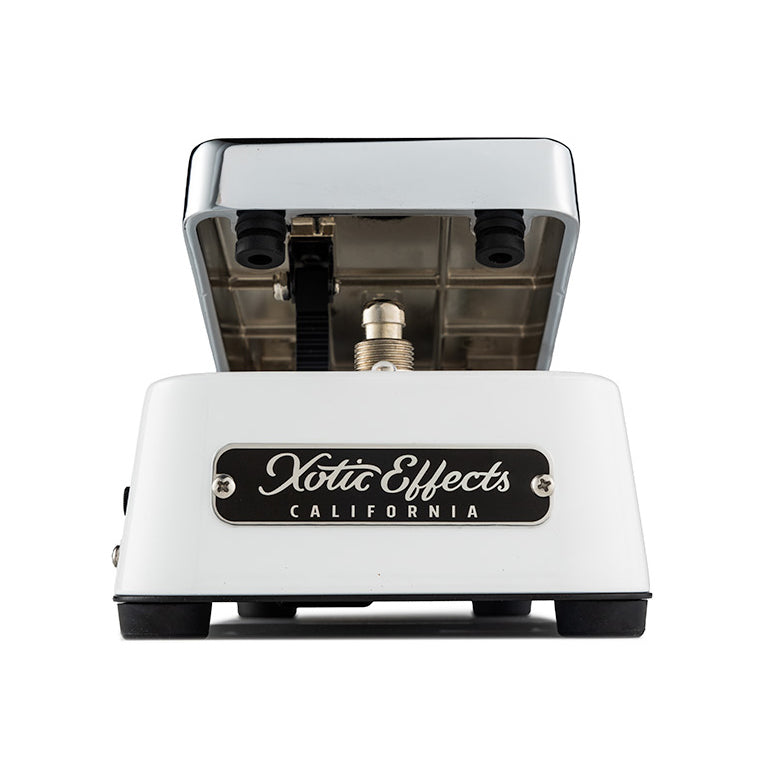

Xotic Effects XW-1 Wah Pedal White

Product Description

The Xotic Effects XW-1 Wah Pedal combines the legendary character of the coveted 1967–1968 Italian-built Clyde McCoy wahs with modern innovation and unparalleled tonal flexibility. Designed for players who want complete control over their wah sound, the XW-1 offers extensive voicing options while maintaining the expressive, vocal-like sweep that made vintage wah pedals famous.

Unlike traditional wah pedals with a fixed character, the XW-1 features adjustable Bias and Wah-Q controls, allowing players to tailor the pedal's response, output, and filter characteristics to suit any guitar, amplifier, or playing style. A powerful two-band active EQ with ±15dB boost and cut provides further tonal shaping, making it easy to dial in everything from vintage warmth to cutting modern lead tones.

The XW-1 is also engineered for real-world performance, featuring a fuzz-friendly buffering circuit that works seamlessly with fuzz pedals, gold-contact relay true bypass switching, and adjustable pedal tension and travel range. Its compact footprint is approximately 20% smaller than a traditional wah pedal, making it an ideal choice for crowded pedalboards.

Combining classic wah tone with exceptional versatility and premium construction, the Xotic XW-1 is one of the most adaptable wah pedals available today.

Key Features

• Inspired by vintage 1967–1968 Clyde McCoy wah pedals
• Fully adjustable Bias control
• Variable Wah-Q control for filter shaping
• Active Bass and Treble EQ with ±15dB adjustment
• Fuzz-friendly buffer design
• Gold-contact relay true bypass switching
• Adjustable pedal tension
• Adjustable treadle travel range
• Compact pedalboard-friendly footprint
• LED status and low-battery indicator
• Smooth self-lubricating nylon pivot system
• Compatible with battery or external power

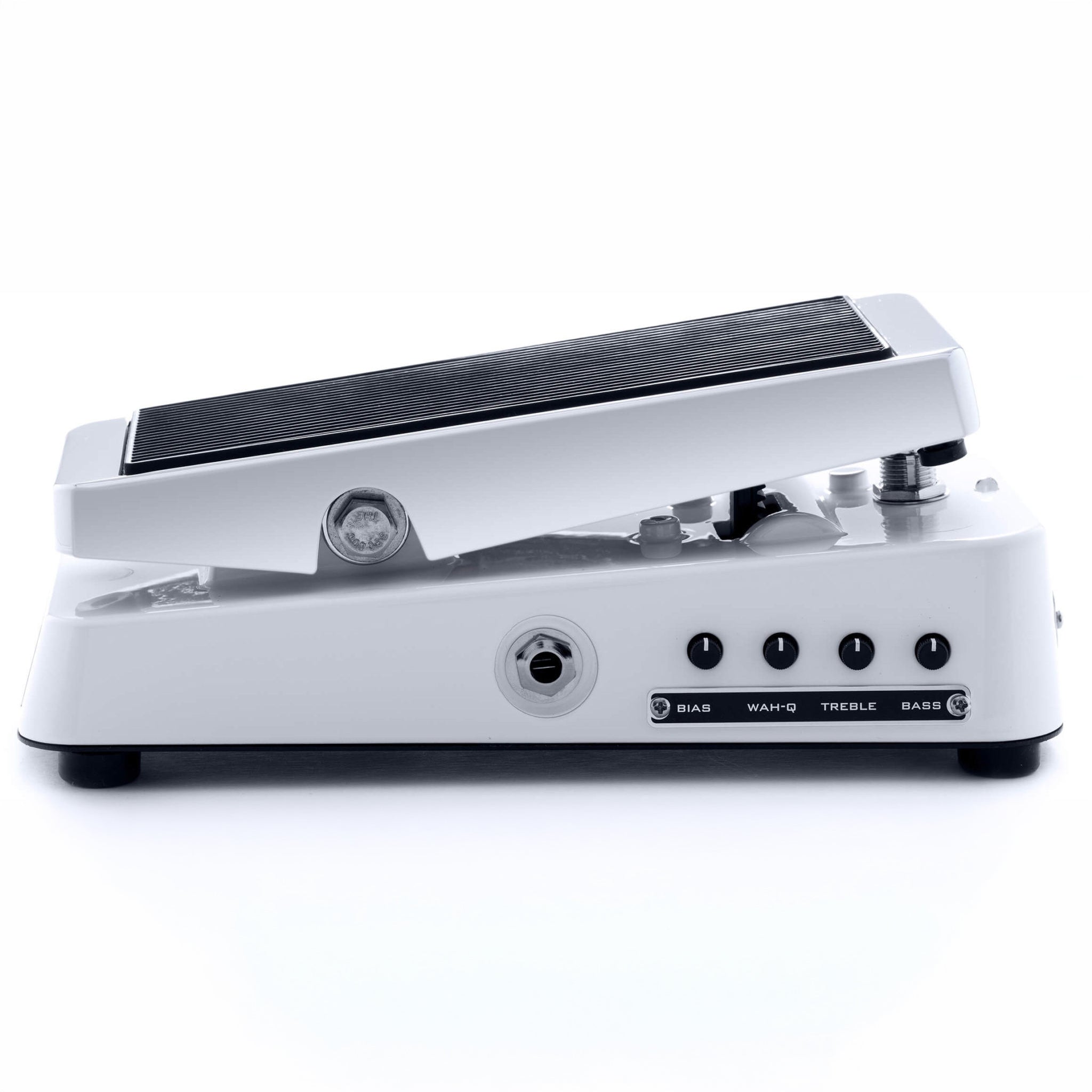

Controls

• Bias
• Wah-Q
• Bass
• Treble
• Adjustable Pedal Tension
• Adjustable Travel Stop

Specifications

• Dimensions: 210mm x 100mm x 67mm
• Weight: 0.98kg
• Bypass: True Bypass Switching
• Power Consumption: 9VDC / 5mA
• Battery: 9VDC (006P) x 1
• AC Adapter: 9VDC–18VDC Negative Centre (regulated recommended)
• Input Impedance: 1MΩ
• Output Impedance: 10kΩ
• Nominal Input Signal Level: -20 dBV
• Nominal Output Signal Level: -20 dBV
