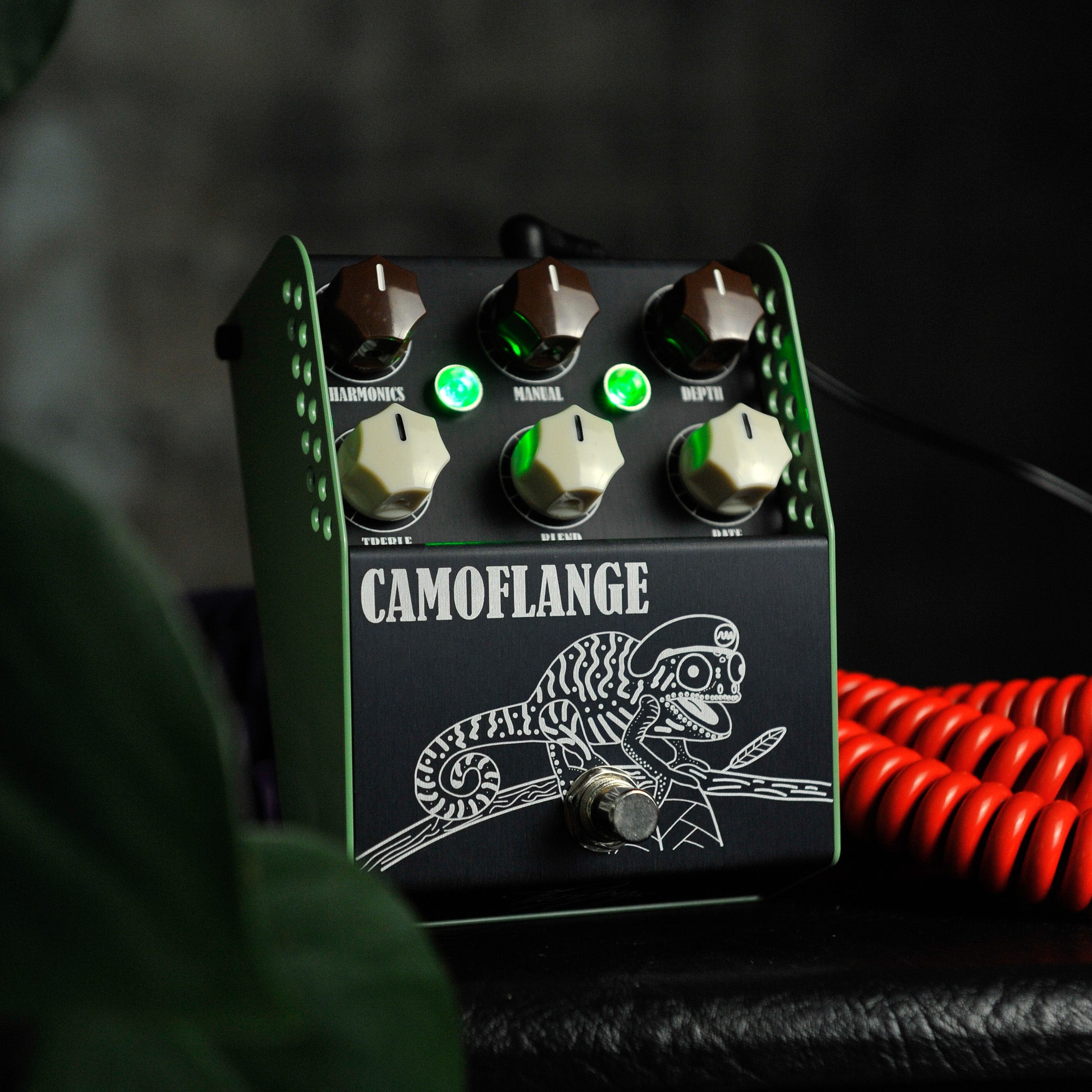

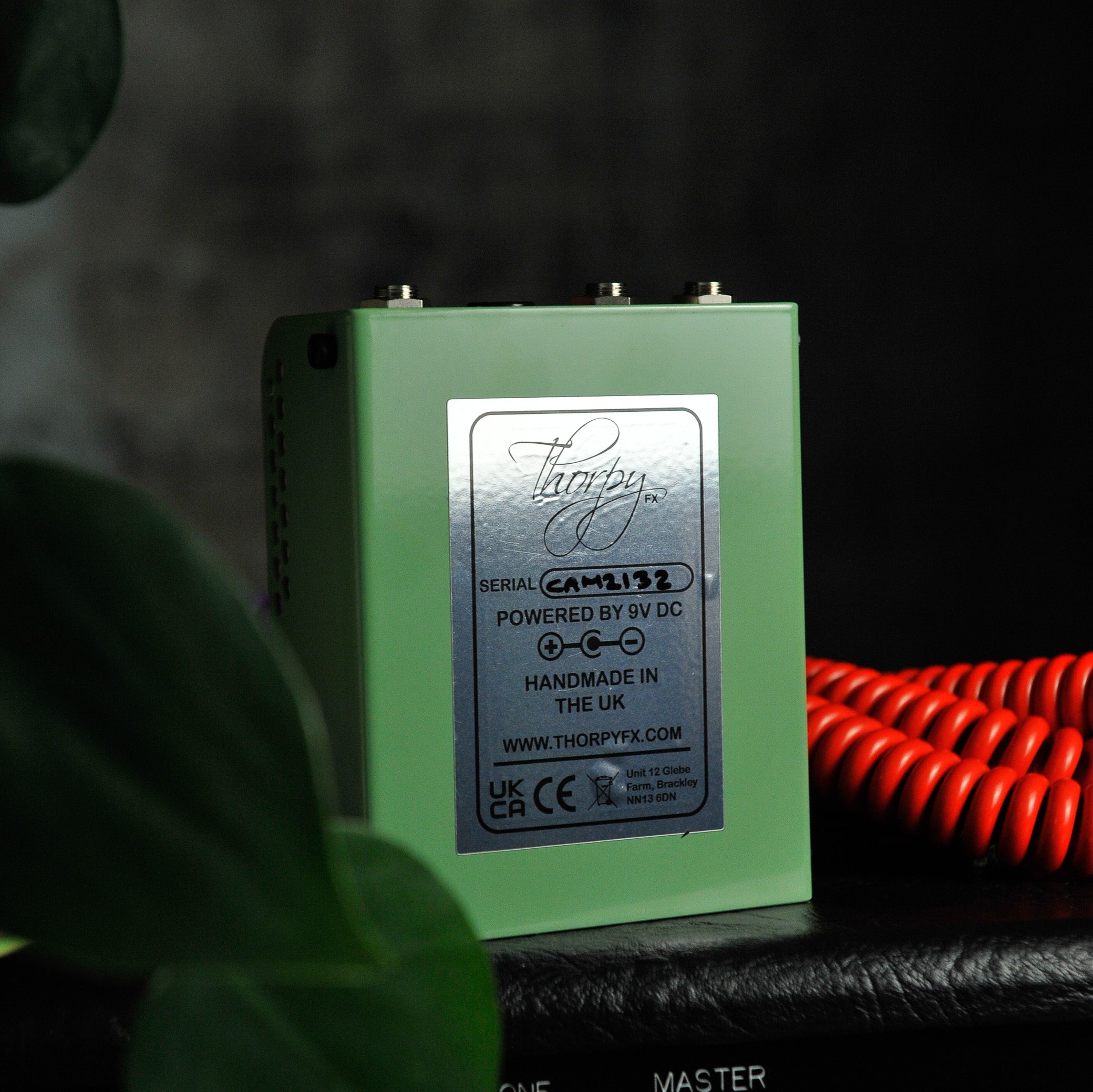

ThorpyFX Camoflange Flanger MKII Pedal

Product Description

The ThorpyFX Camoflange MKII is a premium analogue flanger pedal developed in collaboration with legendary pedal designer Dan Coggins, renowned for his pioneering Lovetone effects. Building on the acclaimed original Camoflange, the MKII introduces increased internal operating voltage and higher-headroom bucket brigade devices (BBDs), delivering even greater clarity, dynamic range, and performance while retaining the lush, musical modulation that made the original so highly regarded.

Designed from the ground up to provide exceptional versatility, the Camoflange MKII covers everything from subtle chorus-like movement and classic jet-plane sweeps to rich, complex modulation textures. Six intuitive controls allow detailed shaping of the effect, while dedicated wet and dry outputs make it an outstanding choice for stereo rigs and creative signal routing.

Internally, the pedal operates from a standard 9V power supply that is boosted and regulated to 18V, providing increased headroom and enhanced analogue performance. Premium components, a custom laser-engraved enclosure with Chameleon Art powder coating, recessed controls, and top-mounted jacks complete a pedal that is as roadworthy as it is inspiring.

Key Features

• Premium fully analogue flanger pedal
• Designed in collaboration with Dan Coggins
• Enhanced MKII circuit with increased internal headroom
• Higher-voltage bucket brigade devices (BBDs)
• Wide range of classic and modern flanger sounds
• Wet and dry outputs for stereo operation
• Internally boosted and regulated 18V operation from a standard 9V supply
• Premium components throughout
• Rugged custom anodised enclosure with Chameleon Art powder coat
• Recessed controls and top-mounted jacks for pedalboard-friendly operation

Specifications

• Model: Camoflange MKII
• Effect Type: Analogue Flanger
• Circuit: Fully Analogue BBD
• Internal Operating Voltage: 18V (Boosted and Regulated)
• Power Supply: 9V DC Centre Negative
• Controls:
  • Depth
  • Rate
  • Blend
  • Treble
  • Harmonics
  • Manual
• Outputs:
  • Wet Output
  • Dry Output

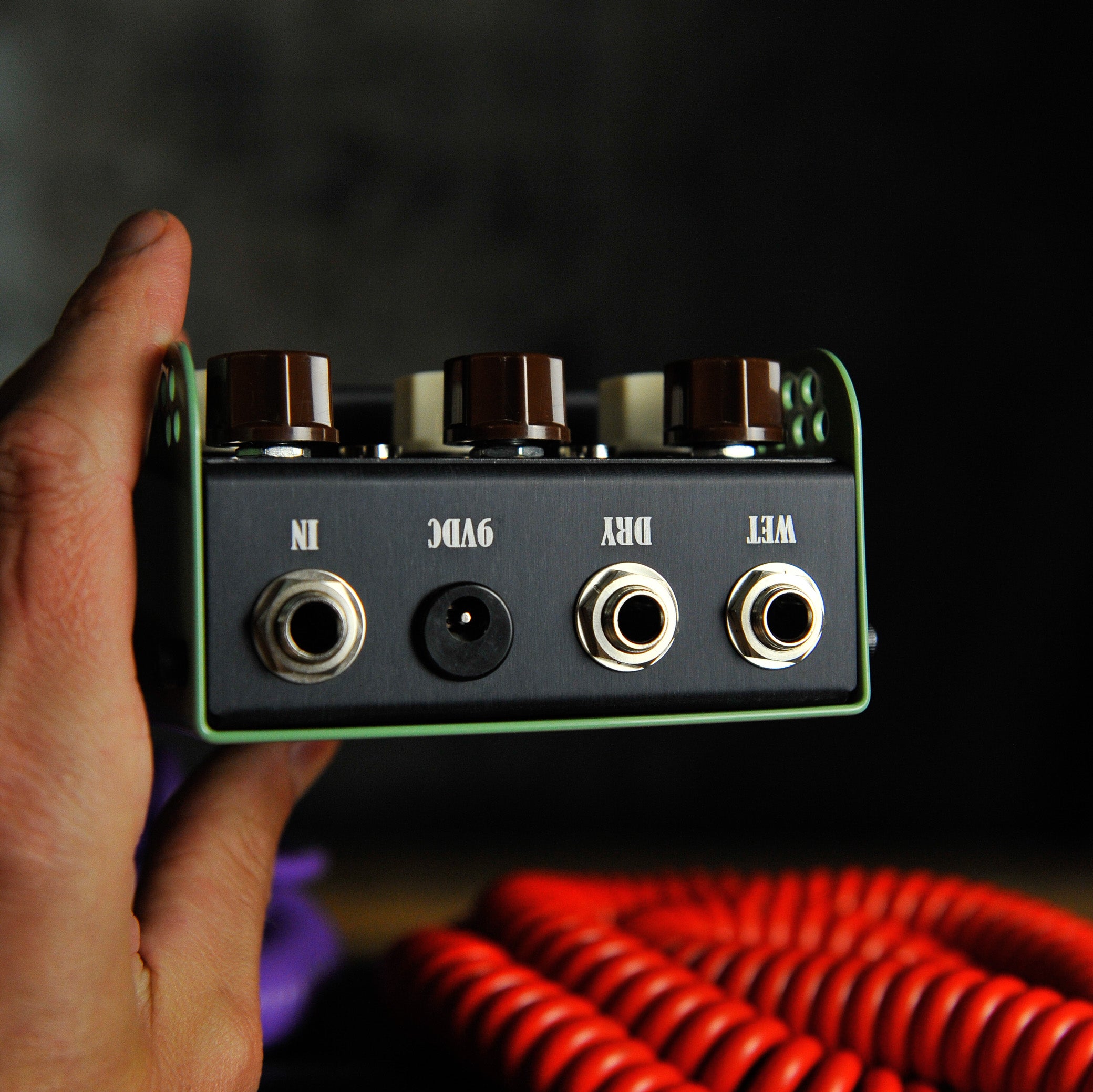

• Input/Output Jacks: Top Mounted
• Current Draw: 150 mA
• Dimensions: 100 mm (W) × 125 mm (L) × 53 mm (H)
